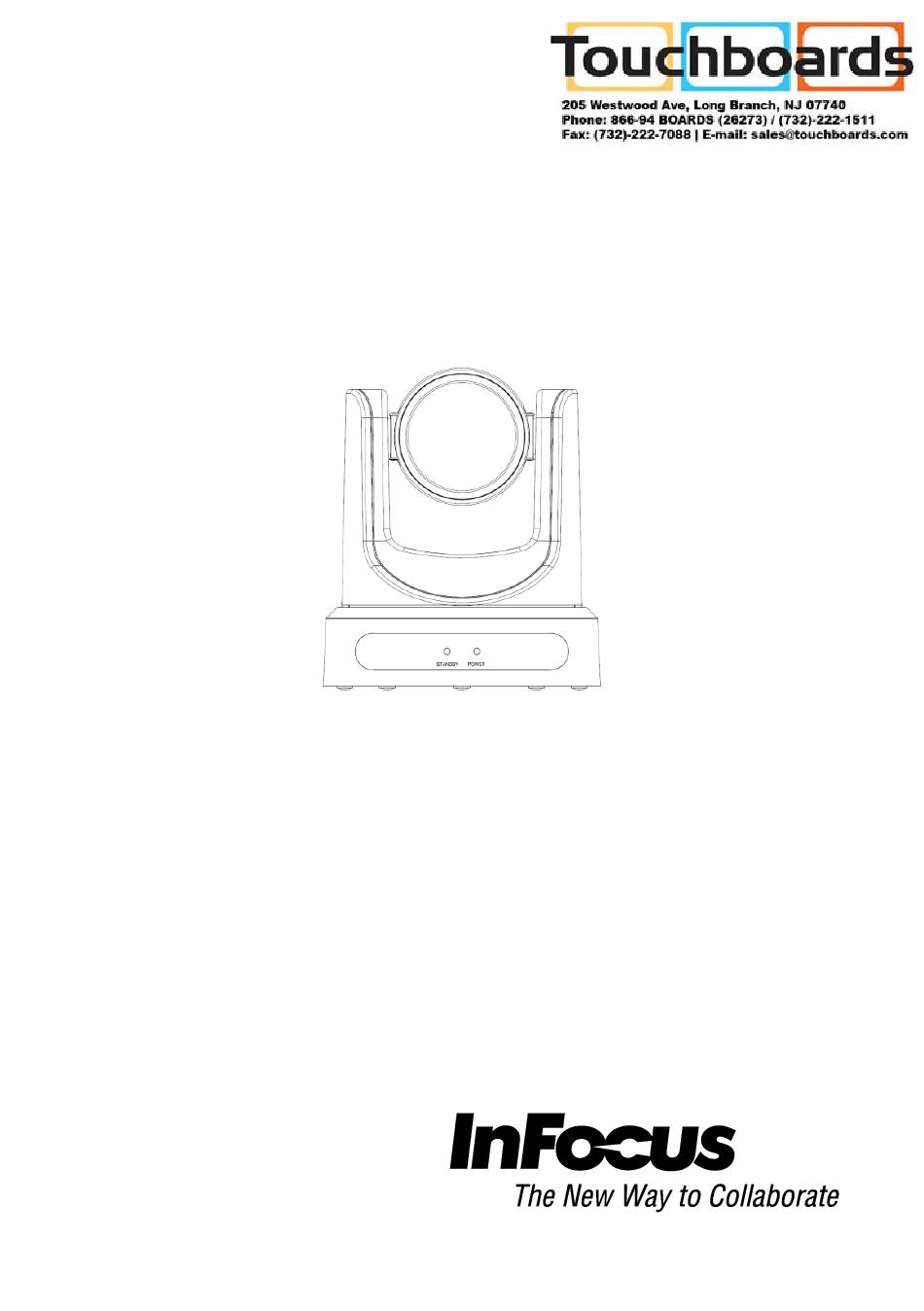

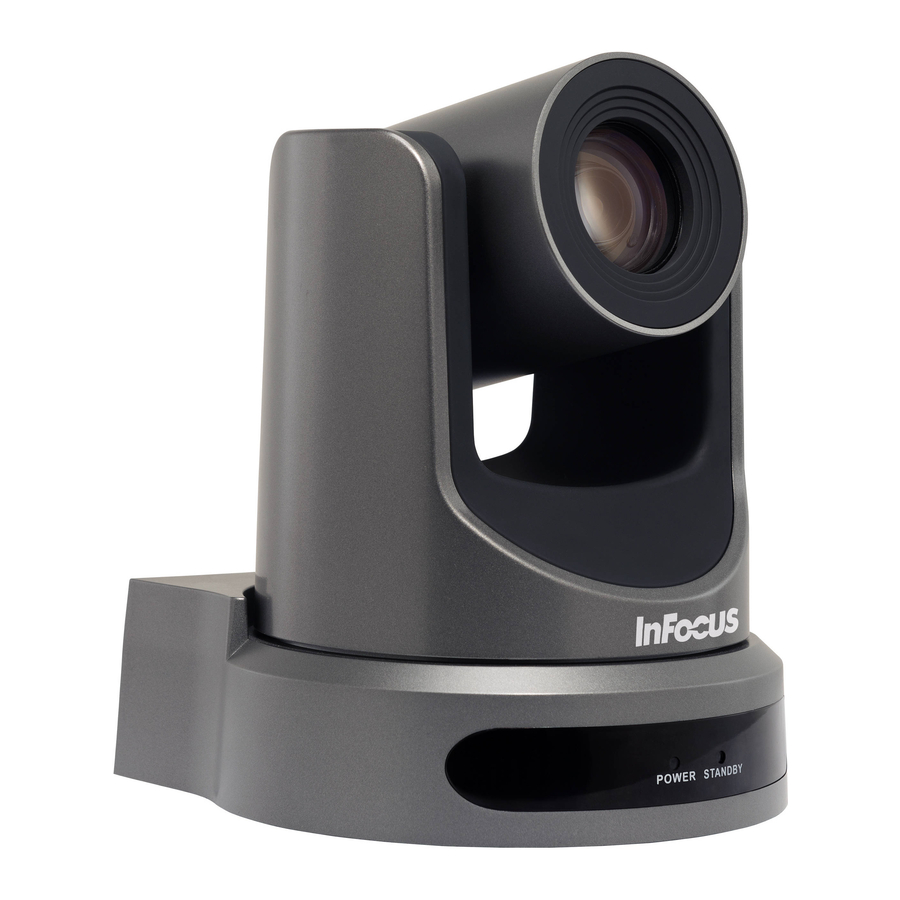

  • Page 1 USB3.0 HD Video Conferencing Camera User Manual V1.4 (English)
  • Page 2 TV in home environment Copyright Notice All contents of this manual, whose copyright belongs to Infocus Corporation. Cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only, and the content will be updated at any...

  • Page 3: Table Of Contents

    Contents Note ................................. 4 Supplied Accessories ..........................4 Quick Start ............................... 5 Features ..............................7 Product Specification ..........................8 Main Unit .............................. 10 Size ................................ 11 IR Remote Controller Explanation......................12 RS-232 Interface ............................ 14 VISCA Network Configuration ......................15 Serial Communication Control ......................

  • Page 4: Note

    Note  Electric Safety Installation and operation must accord with electric safety standard.  Caution to transport Avoid stress, vibration and soakage in transport, storage and installation.  Polarity of power supply The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as follows.

  • Page 5: Quick Start

    User manual ..........1PCS USB3.0 ............1PCS Quick Start Step1. Please check connections are correct before starting Step2. Setting of the system select switch The option of video format: VIDEO SYSTEM 1080p60 720p30 1080p50 720p25 1080i60 1080i50 720p60...
  • Page 6 720p50 576i 1080p30 480i 1080p25 CAUTION: a. After changing the switch, you need to restart the camera to take effect. b. 720 p30 and 720 p25 only under the HDMI output. Step3. Press the Switch ON/OFF button on the rear of the camera, the power lamp light. Step4.

  • Page 7: Features

    Features  72.5° Wide-angle Lens + 32x Digital Zoom Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 32x digital zoom (optional)  USB3.0 Support USB3.0 ultra-high speed interface, can transfer uncompressed original video, and downward compatible with USB2.0. USB3.0, HDMI, Network can output at the same time. It also support CVBS interface ...

  • Page 8: Product Specification

    Product Specification Model VHD-V61U Name USB3.0 Type HD Color Video Camera Camera HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, Video System 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 SD: 480i, 576i Sensor 1/2.7", CMOS, Effective Pixel: 2.07M Scanning Mode Progressive Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8...
  • Page 9 Color System YUV 4:2:2 USB3.0 : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 Video format USB2.0 : 960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50,1280x720p/25 USB video communication protocol UVC1.0 UVC PTZ Support IPC Features Video Compression H.265/H.264/MJEPG Video Stream Main Stream, Sub Stream Main Stream Resolution 1920x1080, 1280x720, 1024x576 Sub Stream Resolution...

  • Page 10: Main Unit

    1xRS-485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P Power Connector JEITA type (DC IN 12V) Generic Specification Input Voltage DC 12V Current Consumption 1.0A (Max) Operating Temperature -5°C ~ 40°C Storage Temperature -20°C ~ 60°C Power Consumption 12W (Max) Size 169mm x 142mm x 164mm Net Weight...

  • Page 11: Size

    Size...

  • Page 12: Ir Remote Controller Explanation

    IR Remote Controller Explanation 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. (Note: Power consumption in standby mode is approximately half of the normal mode) 2. Position Buttons To set preset or call preset 3.
  • Page 13 the backlight compensation.(NOTE: Effective 9. Focus Buttons Used for focus adjustment. only in auto exposure mode) Press [AUTO] adjust the focuses on the center of Note: If a light behind the subject, the subject will the object automatically. To adjust the focus become dark.

  • Page 14: Rs-232 Interface

    INFOCUS RS-232 Interface Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT...

  • Page 15: Visca Network Configuration

    INFOCUS VISCA Network Configuration...

  • Page 16: Serial Communication Control

    INFOCUS Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.  RS232 Communication Control The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s.

  • Page 17: Menu Setting

    INFOCUS Menu Setting EXPOSURE 1. MENU Mode Auto Press [MENU] button to display the main menu ExpCompMode Off on the normal screen, using arrow button to move the cursor to the item to be set. Press the [HOME] Backlight button to enter the corresponding sub-menu.
  • Page 18 INFOCUS (Effective only in Bright mode) WB-Mode: White balance mode. Optional Anti-Flicker Flicker: Anti-flicker. Optional items:Auto,3000K/Indoor,4000K,5000K/Outdoor, items: Off, 50Hz, 60Hz (Effective only in Auto, 6500K-1,6500K-2,6500K-3,One Push, Manual RG: Red gain. Optional items: 0~255 （Effective Bright mode) Iris: Aperture value. Optional items: F1.8, only in Manual mode）...
  • Page 19 INFOCUS items: 0 ~ 14 SpeedByZoom: The depth of field scale switch, Contrast: Contrast adjustment. Optional items: Optional items: On, Off 0 ~ 14 AF-Zone: Interested in focusing area, Optional Sharpness: Sharpness adjustment. Optional items: Top, Center, Bottom items: Auto, 0 ~ 15 AF-Sense: Automatic focusing sensitivity Flip-H: Image flipped horizontally.
  • Page 20 INFOCUS items: Off, 1 ~ 8 items: 0 ~ 254 D-HotPixel: Dynamic bad points, Optional P_P_Address: PELCO-P protocol Optional items: Off, 1 ~ 5 items: 0 ~ 31 V_AddrFix: If I can change through the serial 7. SETUP port of infrared switch, Optional items: On, Off （...
  • Page 21 INFOCUS Optional items: Yes, No Note: Press [HOME] button to confirm, All parameter restore default, Include IR Remote address and VISICA Address Save: Save Options. Optional items: Yes, No...

  • Page 22: Network Function

    INFOCUS Network Function controller one by one, the camera IP address will be shown on screen. 1 Operating Environment Operating System: Windows 2000/2003/XP/ Method 2: connect camera to PC with ethernet vista/7/8 cable, use "upgrade_En.exe" to search for IP Network Protocol: TCP/IP...
  • Page 23 INFOCUS NOTE! NOTE！ IP camera default IP address"192.168.100. If user first time use this camera by internet 88", user "admin", password "admin". (only for new user), must install a player software (VLC). Please webside 4.2 Visit/Access IP Camera Input http://192.168.100.88 to IE ( better http://www.videolan.org/vlc,download...
  • Page 24 INFOCUS Input URL address: rtsp://ip: port number/1 (Main stream); rtsp://ip: port number/2 (Sub stream). 5.2 Dynamic DNS visit camera Set domain name to camera, setup the NOTE！ parameter, then dynamic DNS can access camera. Access link: http://hostname :port number For RTSP port number default 554.
  • Page 25 INFOCUS Parameter setup: with function buttons 1 ~ 24, horizontal direction at the rate of 1 ~ 20. A. Video viewing window 3) select corresponding speed and click Video viewing window must be same as video direction button to realize PTZ speed up or speed resolution, the bigger the resolution is, the bigger down.
  • Page 26 INFOCUS 720x576, 320x240, the bigger resolution is, the clearer the image will be, more network bandwidth will be taken. 6) Bit Rate User can assign bit flow/stream, normally speaking, the bigger bit flow is, the clearer the image will be. The bit allocation must combine...
  • Page 27 INFOCUS not tick. 6.3 Image Setup, please click "Image" 7) Button Adjusting the parameters, press "apply" button to save, press "cancel" button to cancel the adjustment of the parameters, press "default" button obtain the default value. 6.4 Audio Setup, please click "Audio"...
  • Page 28 INFOCUS 6.5 System Setting, please click "System" 6.6 Network Setting, please click "Network" 1) Lan Settings Default the IP address is 192.168.100.88, The MAC address can be modified. 1) Work Mode 2) Port Settings Work Mode RTSP A. HTTP Port...
  • Page 29 INFOCUS Setting camera control communication protocol, Software version may not be the latest version include Visca address, Pelco-D address, Pelco-P of the current, please release version shall prevail. address. 7 Download the Network upgrade program 4) RTMP Setting If you need the camera upgrade program, please Setting the camera stream, can set up two contact the manufacturer.

  • Page 30: Usb3.0

    INFOCUS USB3.0 Camera support UVC protocol, compatible USB2.0 & USB3.0. USB3.0 support 1920x1080p/60 max output. USB2.0 support 960x540p/60 max output. Support OS Windows XP/2003/VISTA/7/8 and other system、Linux、Mac OS General software Windows: AMCAP, VLC, Debut Video Capture, etc. Linux:V412 software driver and VLC media player, etc.

  • Page 31: Maintenance And Troubleshooting

    INFOCUS Maintenance and Troubleshooting Camera Maintains  If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.  Use soft cloth or tissue to clean the camera cover.
  • Page 32 INFOCUS failure, network failure caused by PC virus until the PC can be Ping. 2. Disconnect IP Camera with network, IP Camera and PC are connected, according to the proper operations to re-set the IP address. 3. Check the server's IP address and subnet mask and gateway address.
