Summary of Installation Steps
•
WLAN Planning. Usually, a comprehensive site survey is required
before installation, such as installation location, brackets, cables,
power source, etc.
• Unpack the AP box and check all contents
•
Install the AP bracket on ceiling or wall
• Installing the AP
•
Connecting required cables
•
Power connection
• Verifying post-installation connectivity
•
AP provisioning
Access points are radio transmission devices and are subject to
governmental regulation. Network administrators who are
responsible for the configuration and operation of access points must
comply with local broadcast regulations. Specifically, access point
must use channel assignments appropriate to the location where the
access point will be deployed.
Package Contents
Item Name
1 Access Point
Quick Start Guide
Installation Guide
2
Regulatory Compliance and Safety
Information
User Guide Info Card
◆ Optional Accessories（To be ordered separately）
Item Name Description
Indoor mounting kit, Type B1(9/16") and
1 OAW-AP-MNT-B
B2(15/16") for T shaped ceiling rail.
Indoor mounting kit, Type C1(Open
2 OAW-AP-MNT-C Silhouette) and C2 (Flanged Interlude),
for other shaped ceiling rail mounting.
Indoor mounting kit, Type W wall and
3 OAW-AP-MNT-W
ceiling mounting with screws.

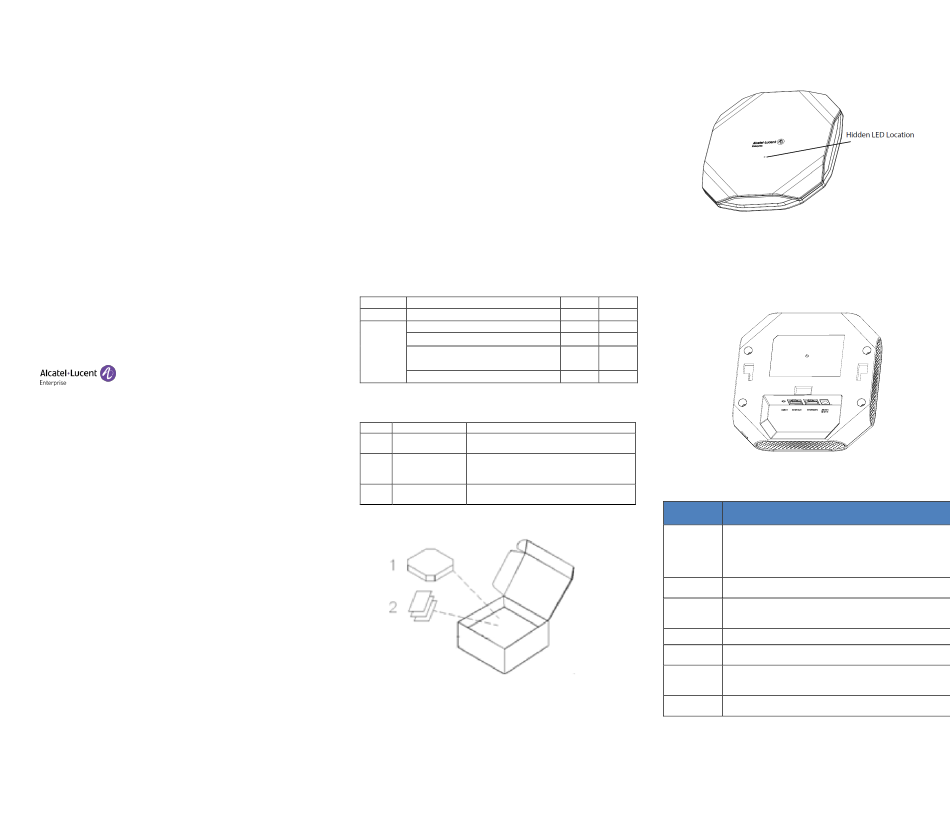

Figure1: Product Packing
Inform your ALE sales representative of incorrect, missing, or
damaged parts. If possible, retain the carton, including the
original packing materials. Use these materials to repack and
return the unit to the supplier if needed. Additional mounting
kits for use with the OmniAccess Stellar access points are sold
separately. Contact your ALE sales representative for details.
Hardware Overview
The following sections outline the hardware components of the OAW-
AP1301 Series access point.
Figure 2: OAW-AP1301 Front View
LED
The OAW-AP1301 Series access point is equipped with hidden LED display
that indicates different status with different color.
For the details of the LED status, please refer to the Quick Start Guide.
Figure 3: OAW-AP1301 Back View
Qty Unit
1 Pcs
1 Pcs
1 Pcs
1 Pcs
1 Pcs
◆ OAW-AP1301 series External Interfaces
Interface
1x 10/100/1000BASE-T autosensing (RJ-45) port, Power
over Ethernet (PoE). In case of only one WAN link，
1 Gigabit
either of Eth0 and Eth1 could work as WAN, Eth0 would
Eht1
be more preferred. In case of two WAN links，Eth0 +
Eth1 would be preferred.
1 Gigabit 1x 10/100/1000BASE-T autosensing (RJ-45) port.
LAN
RJ-45 female connector, default is RS-232 Console for
Console Service & Support only. Support software configure to
RS-485 mode.
USB USB 2.0 host interface (Type C, output current 0.5A )
DC Power DC 48V power jack, support powering AP through a
Socket designated AC-DC power adapter.
Factory reset. Press reset button for 5s, AP LEDs will
Reset quickly flash for 3s, then AP will restart and restore
factory configurations.
Security The AP is equipped with a security lock slot for
Lock Slot additional security.
Table 1
