Summary of Contents for GPO SPECTRA Series
- Page 1 gp-optics.com...

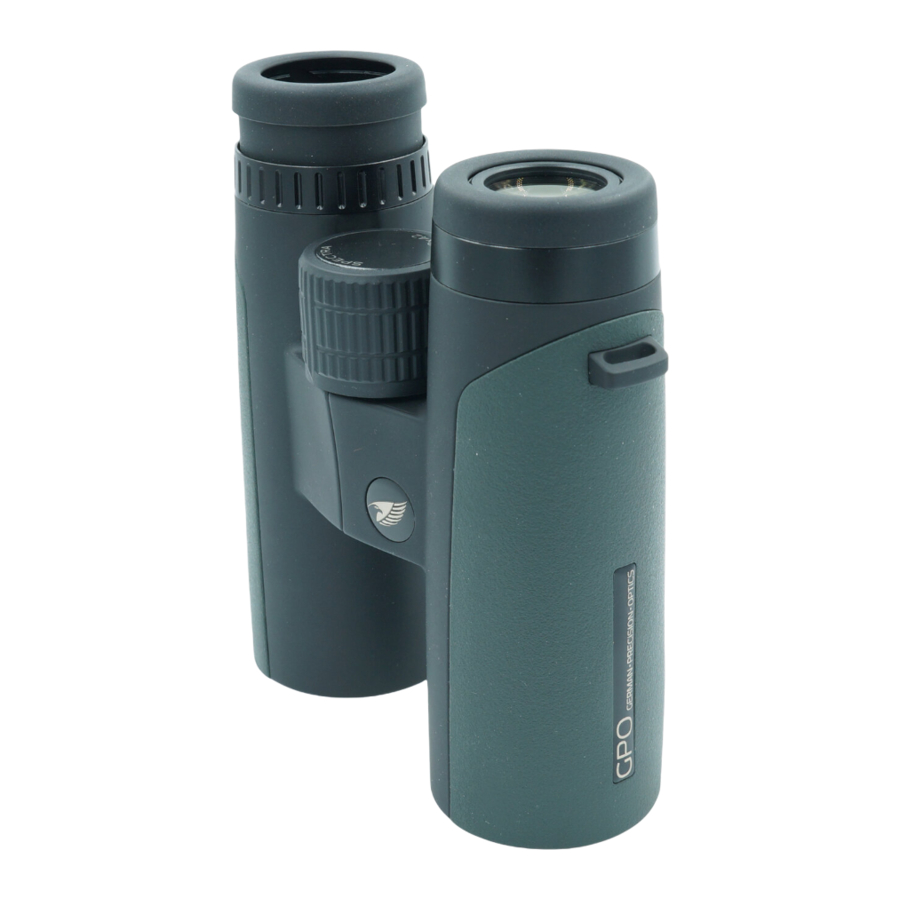

- Page 2 SPECTRA BINOCULARS 8x32 10x32 8x42 10x42...
-
Page 3: Dear Customer
Repairs should be solely handled by an authorized repair location or GPO GmbH & Co. KG. The improper and unauthorized usage, disassembly or repair of the products by non-authorized repair business may result in the termination of this products warranty. -
Page 4: Safety Information
Safety information Please carefully read these safety instructions and follow these guidelines when using this product. Never look directly into the sun, bright light sources or laser based light sources through your binocular. This can cause irreparable eye damage. Optics in binoculars function as a magnifying glass, therefore dramatically increasing the intensity of the light source. - Page 5 diopter setting Ocular cover Neoprene Eyecup strap Focus Shoulder strap inter- face Tripod Adapter Objective cover...
- Page 6 Mounting of the shoulder strap...
-
Page 7: Eyecup Adjustment
Eyecup adjustment The rotary eyecup has two break positions for different applica- tions. The different break positions allow you to custom adjust the distance between your eye and the ocular lens. This beneficial feature allows you to be able to adjust the eye distance to your personal preferences. - Page 8 Adjustment of the interpupillary distance (ipd) Interpupillary distance (IPD) is the distance between the center of the pupils of the two eyes. For a full “field of view”, the IPD of the binocular must be adjusted to match the IPD of the user. This can be accomplished by simply opening or closing (buckling) the center hinge of both binocular halves while looking through the binocular.
- Page 9 Adjustment of the diopter since most users have a minor visual acuity difference between their left eye and right eye, the diopter is an adjustment feature that allows the user to custom focus each side of the binocular to the correct vision of each eye. To compensate for possible imbal- ances of the vision between both eyes, you can adjust this binocu- lar to your individual needs.
- Page 10 diopter setting Cover or close your LEFT eye. Using the diopter adjustment ring, focus your RIGHT eye on your selected object until the picture is sharp. Your binocular is now adjusted to your personal visual acuity in each eye. The diopter is locked in place and will not need further adjustment.
-
Page 11: Care, Cleaning And Maintenance
Care, cleaning and maintenance You can clean the optics of your product with the optical micro-fiber cleaning cloth provided with your product, or by using other lens cleaning equipment solely intended for optical cleaning purposes. Be sure to keep the optical surfaces clean and immediately remove any dirt or oil debris caused by grease (finger prints), oil or water spots to guarantee consistent optical quality. -
Page 12: Spare Parts
If you use your product in a region with high humidity, store your product in an airtight container with a humidity absorption aid to avoid any exterior fungus adhesion Spare parts If you need spare parts or accessories for your binocular, please contact an authorized dealer or GPO GmbH & Co. KG. -
Page 13: Technical Specs
Technical specs 8x32 10x32 8x42 10x42 Magnification Objective diameter (mm) Exit pupil (mm) 3,28 5,25 Field of View (m/100m) Close focus distance Diopter adjustment (dpt.) +/- 3 +/- 3 +/- 3 +/- 3 Eye relief (mm) Pupil distance (IPD (mm) 56-73 56-73 56-75... - Page 14 Accessories 8x32 10x32 8x42 10x42 Carrying bag • • • • Neopren shoulder • • • • strap Micro-fiber cleaning • • • • cloth Objective protective • • • • caps set Ocular protective cap • • • • Manual •...
- Page 16 GPO GmbH & Co. KG Wildmoos 9 82266 Inning am Ammersee Germany Tel.: +49 (0) 8142/99 20 87 0 Fax: +49 (0) 8142/99 20 87 9 Email: gp-optics.com www.gp-optics.com...
