- Page 1 G7 DOCK Getting Started Guide...

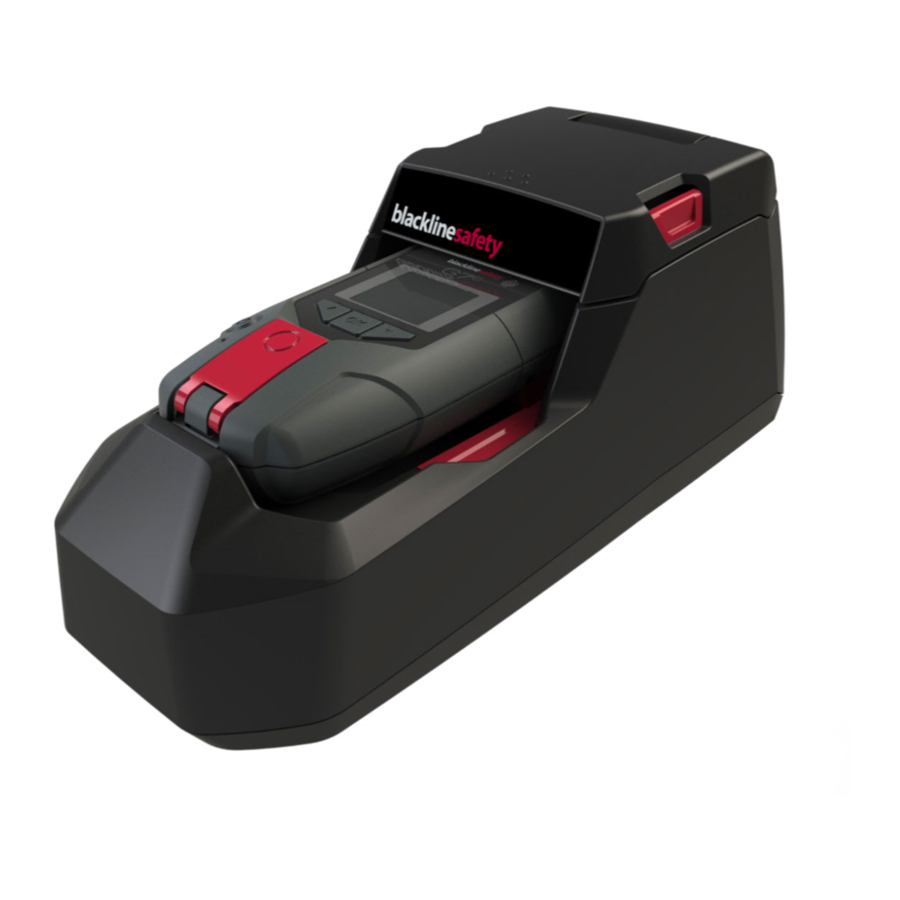

- Page 2 It supports both G7c and G7x devices with single-gas, multi-gas diffusion or multi-gas pumped cartridges. Simply insert G7, and G7 Dock will do the rest. It automatically charges G7 and places it into a test-ready mode to eliminate false alerts.
- Page 3 YOUR G7 DOCK Dock valves Wall mounting holes Power cable Product Power label light Charge clip Activation Code Release Inlet tabs stickers Gas Out exhaust Gas inlet quick-connects...
- Page 4 GAS INLET CONFIGURATION G7 Dock is equipped with a Gas Out exhaust and 4 gas inlets. The inlets are pre-programmed for you. Changes to G7 Dock’s inlet configuration can be made from your G7 Dock’s configuration profile, from the Docks page on Blackline Live.
- Page 5 50 PPM Inlet 4 – Purge This inlet supplies clean air, removing residual gas from G7 Dock. When using Dock in dusty or humid environments, you can attach the optional dock filter subassembly included in the box. If you are using chlorine with G7 Dock, a NOTE: stainless steel demand flow regulator is required.
-
Page 6: Learn More
LEARN MORE Visit support.BlacklineSafety.com to download the technical user manual with descriptions of how to use and configure your device and for detailed specifications. CUSTOMER CARE For technical support, please contact our Customer Care team. North America (24 hours) Toll Free: 1-877-869-7212 | support@blacklinesafety.com... -
Page 7: Connecting To Gas
CONNECTING TO GAS Attaching G7 Dock to the gas cylinder is done through the use of tubing and quick connects. To attach the quick connects to G7 Dock: Line up the quick connect ends Twist clockwise until it clicks securely into place... - Page 8 HOW G7 DOCK WORKS Powering on Insert the power cable into the port on the bottom of G7 Dock. Feed the power cable through the tracks along the bottom to allow the dock to lie flat on a table surface or mount on a wall.
- Page 9 PLACING G7 IN G7 DOCK In order for bump tests, calibration and charging to work, G7 needs to be placed correctly in G7 Dock. To do so: Slide G7 device into dock’s charge clip at an angle - ensure the...
- Page 10 MULTI-DOCK SETUP Multiple G7 Docks can be connected to a single gas cylinder by using tubes, check valves and T-connectors for situations where multiple G7 devices need calibrating or bump testing. One gas cylinder is able to support five G7 Docks at one time.
-
Page 11: Maintenance And Troubleshooting
I put it into G7 Dock? If your device does not respond when placed into G7 Dock, it may not be properly connected to Dock, or the Dock may not be connected to a power supply. Try replacing your device into G7 Dock, and ensure that Dock is connected to a power source. - Page 12 The gas cylinder is using a ƒ demand-flow regulator The quick-connects are properly ƒ connected to G7 Dock Gas concentrations in the gas cylinder ƒ match device and dock configurations If G7 Dock is still not operating correctly, please contact Customer Care.
