- Page 1 G7 Dock Technical User Manual...
-
Page 2: Table Of Contents
SET UP ................................. 8 GAS INLET CONFIGURATION ......................8 CUSTOMIZING INLETS ......................... 10 REACTIVE GASES ........................... 10 CONNECTING G7 DOCK TO A CALIBRATION GAS CYLINDER ..........10 OPERATING ............................. 11 REQUIREMENTS ..........................11 POWERING ON ..........................11 PLACING G7 INTO G7 DOCK ...................... 12 FEATURES .............................. - Page 3 SPECIFICATIONS AND LEGAL NOTICES .................... 18 DETAILED SPECIFICATIONS ......................18 LEGAL NOTICES ..........................19 SUPPORT ..............................20 LEARN MORE..........................20 CUSTOMER CARE .......................... 20 G7 Dock Technical User Manual ©2022 Blackline Safety Corp 2022-09-26 Rev. 11...
- Page 4 Do not use G7 Dock in areas classified as hazardous locations, where there is risk of explosion due to presence of gas, vapor, or dust. G7 Dock is not certified as intrinsically safe. Do not place G7 Dock in or near open flame or submerge in liquid.
-
Page 5: Overview

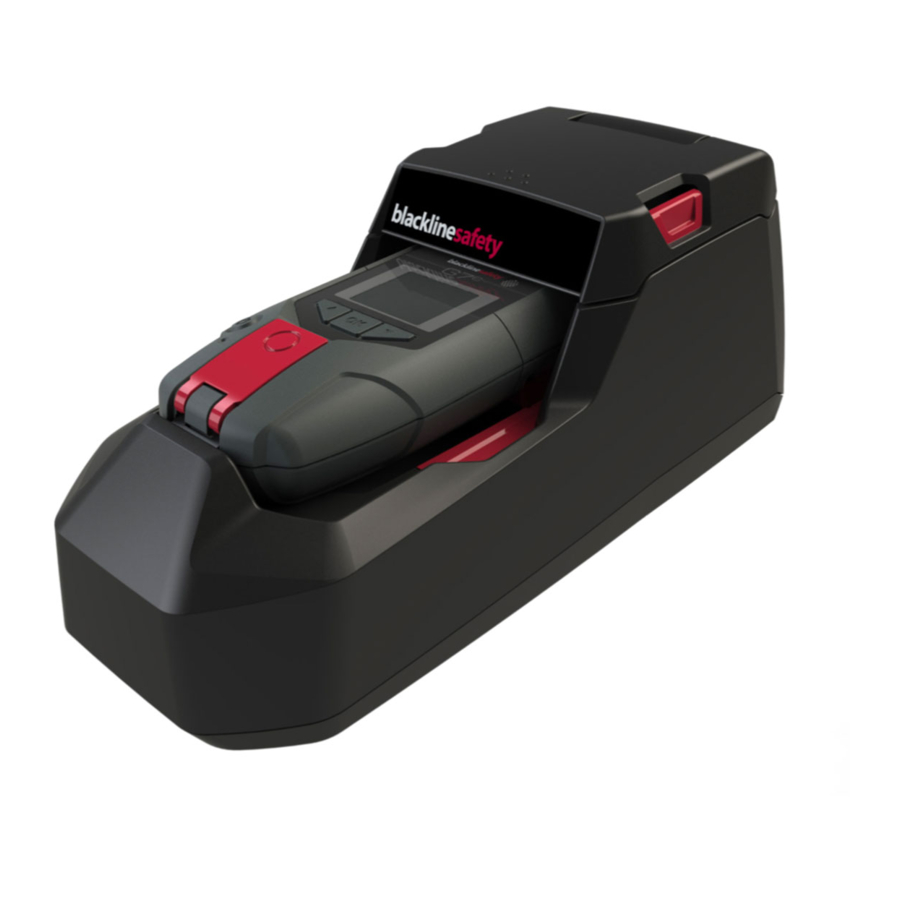

G7. It supports both G7c and G7x devices with single-gas, multi- gas diffusion or multi-gas pumped cartridges. Simply insert G7, and G7 Dock will do the rest. It automatically charges G7 and places G7 into a test-ready mode to eliminate false alerts. -
Page 6: Hardware Details
Dock filter • Multi-lingual sticker sheet • G7 Dock Getting Started Guide • 1.4 HARDWARE DETAILS ©2022 Blackline Safety Corp G7 Dock Technical User Manual Rev. 11 2022-09-26... - Page 7 G7 Dock Technical User Manual ©2022 Blackline Safety Corp 2022-09-26 Rev. 11...
-
Page 8: Set Up
The inlets are pre-programmed for you. When looking at the back of G7 Dock, the Gas out exhaust is the connector on the far-left side of the dock. It is used to transfer calibration gas to a safe exhaust location. - Page 9 • 2” tube • one of the provided male quick connects • The filter piece may need to be replaced as it absorbs contaminants from the air. G7 Dock Technical User Manual ©2022 Blackline Safety Corp 2022-09-26 Rev. 11...
-
Page 10: Customizing Inlets
Docks page on Blackline Live. The activation code on the back of the Dock can be used to identify it from the list. If you are having difficulties accessing this page or finding G7 Dock in Blackline Live, please contact our Customer Care team. -
Page 11: Operating
120/240 VAC power source and power components • NOTE: You must use the power components provided with your G7 Dock. 3.2 POWERING ON Insert the power cable into the port on the bottom of G7 Dock. Feed the power cable through the tracks along the bottom to allow the dock to lie flat on a table surface or when mounted on a wall. -
Page 12: Placing G7 Into G7 Dock
Press inward on the two red release tabs until dock’s lid clicks open. 3.3 PLACING G7 INTO G7 DOCK Slide G7 into G7 Dock’s charge clip at an angle. Ensure the charge clips of both devices are connected. Keeping the charge clips connected, lie G7 down into G7 Dock and push down until the device clicks in place. -
Page 13: Features
4 FEATURES 4.1 CHARGING G7 G7 devices will automatically start charging when placed into a powered G7 Dock. It will take a maximum of four hours to fully charge G7. NOTE: If G7 is not charging, confirm the following: G7 Dock is powered (the green light is on). -
Page 14: Calibration
G7 devices have their own gas calibration settings, which can be modified in Blackline Live. If the device’s configured gas settings do not match G7 Dock’s settings, the calibration will continue using the Dock’s settings as a default. If G7 Dock is configured correctly to the gas concentrations being used, the calibration will be successful. -
Page 15: G7 Dock Update
Docks page on Blackline Live. The activation code on the back of Dock can be used to identify it from the list. If you are having difficulties accessing this page or finding G7 Dock in Blackline Live, please contact our Customer Care team. -
Page 16: Mounting
G7 Dock can be placed flat on a table or mounted to a wall. 5.1 WALL-MOUNTING When mounting G7 Dock to a wall, ensure the location is within reach of a power source and gas cylinder. To mount G7 Dock, remove the mounting guide located on page 21. Place mounting guide on wall to plan where to place the mounting screws. -
Page 17: G7 Dock Care
Charge clip is free of debris. • To clean G7 Dock, disconnect from power and wipe down with a damp cloth. Do not use pressure spray or cleaning solvents. For best performance, G7 Dock should be operated in a dry and dust-free environment. -
Page 18: Calibration And Bump Test Faq
Why are my bump tests and calibrations failing? Calibrations and bump tests can fail if there is not enough gas reaching the sensors. To ensure that gas is flowing from the gas cylinder to G7 Dock, check that: There are no kinks or crimps in the tubing. -
Page 19: Legal Notices
Blackline, G7, G7c, G7x, G7 Bridge, Warranty G7 Dock, LiveResponse, Loner, Loner IS, Loner IS+, Loner M6, Loner Your G7 Dock is warranted against defects in materials and M6i, Loner Mobile, Loner 900, and SureSafe are the exclusive workmanship for up to two years from the date of purchase. -
Page 20: Support
9 SUPPORT 9.1 LEARN MORE Visit support.blacklinesafety.com to find support and training materials for the G7 Dock. 9.2 CUSTOMER CARE For technical support, contact our Customer Care team. North America (24 hours) Toll Free: 1-877-869-7212 | support@blacklinesafety.com United Kingdom (8am-5pm GMT) +44 1787 222684 | eusupport@blacklinesafety.com... - Page 21 G7 Dock Technical User Manual ©2022 Blackline Safety Corp 2022-09-26 Rev. 11...
