SY-KLONE 9002 Installation Instructions

For the 800 - 900 series 5-ton trucks

Air Precleaner Installations Instructions for the 800 - 900 series 5-ton

1. Check contents to ensure all components

are in the kit and are in serviceable

condition.

Kit Contents

Qty

Nomenclature

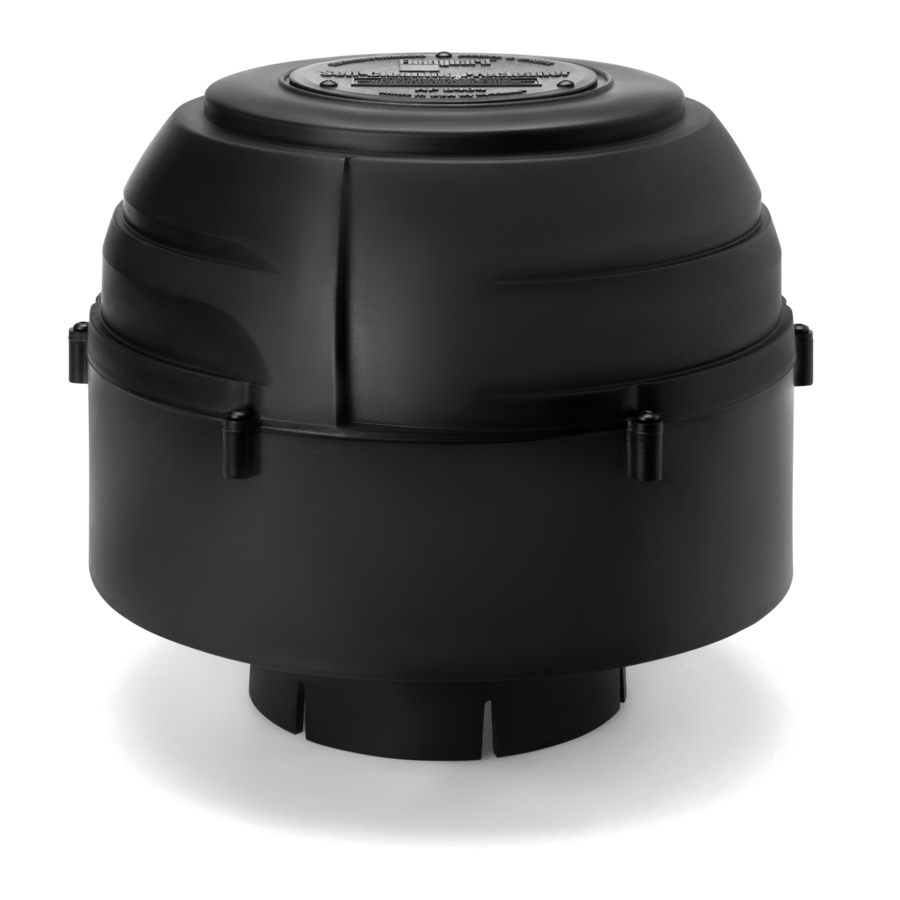

9002 air

precleaner

60R50

rubber

insert ring

T-bolt

clamp

2. 900 Series truck - remove rain cap from

the air intake, which is located behind the

cab on the driver side of the vehicle.

800 Series truck – remove rain cap from

air intake, the rain cap will be located on the

driver side front fender.

3. After unpacking the assembly, verify that

the clamp is on the outside of the throat and

the rubber insert ring is located inside the

throat of the precleaner. The photograph

shows the proper assembly.

Trucks

Continued on reverse side

Table of Contents

Do you have a question about the 9002 and is the answer not in the manual?

Page 1 Air Precleaner Installations Instructions for the 800 - 900 series 5-ton Trucks 1. Check contents to ensure all components are in the kit and are in serviceable condition. Kit Contents Nomenclature 9002 air precleaner 60R50 rubber insert ring T-bolt clamp 2.
Page 2 Do not exceed 65 in-lbs on the clamp. 800 Series Truck For technical support or to order 6. Please dispose of all removed parts and replacement parts contact Sy-Klone packing materials in the appropriate International at 1-800-351-8265 receptacle.
