D600 LED ULTRASONIC SCALER
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTE D600

Summary of Contents for DTE D600

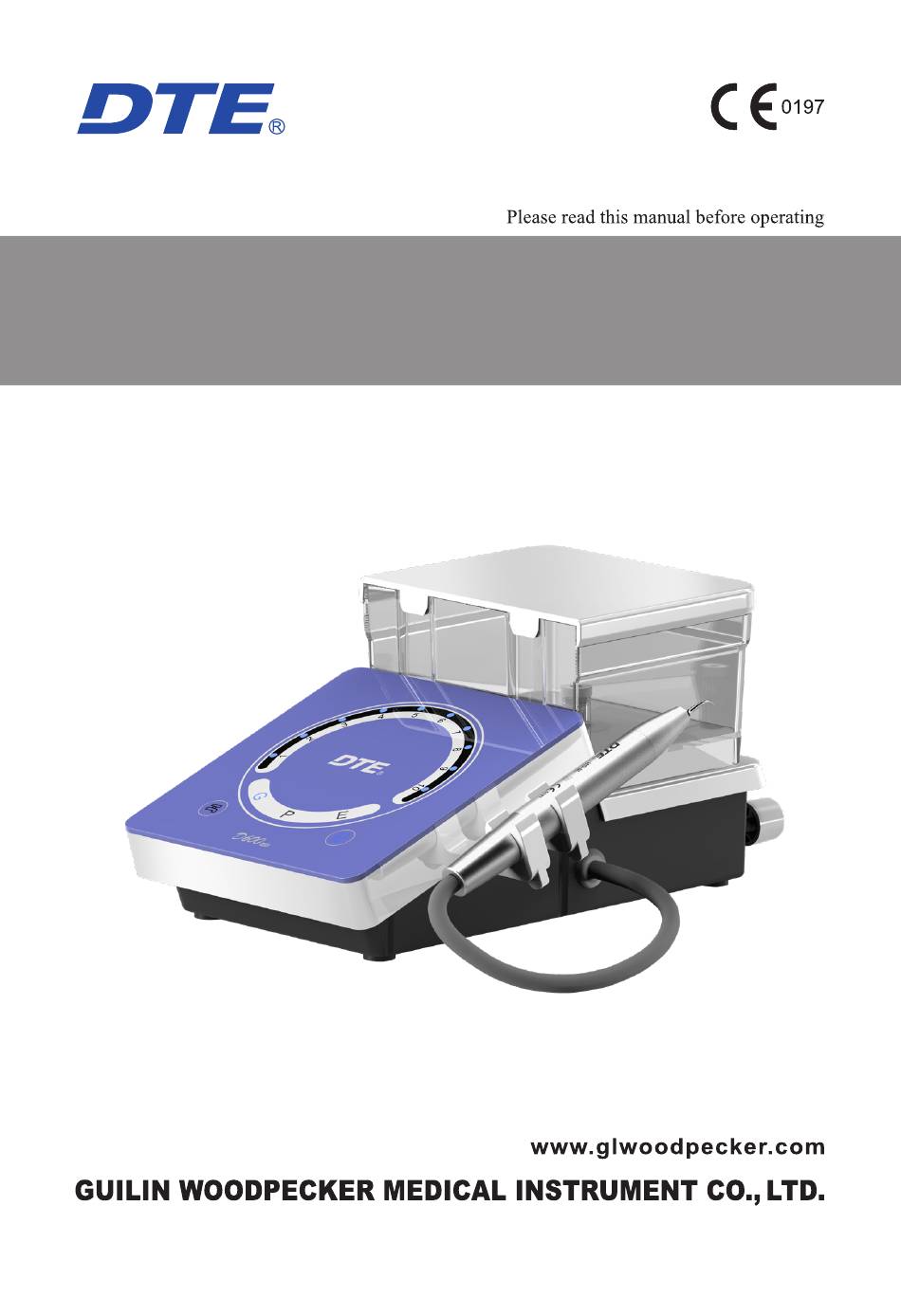

  • Page 1 D600 LED ULTRASONIC SCALER INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Contents 1. The installation and components of equipment ........1 2. Installation and adjustment ..............3 3. Maintenance ..................5 4. Cleaning, Disinfection and Sterilization ..........9 5. Precaution ..................1 5 6. After service ..................1 7 7. Symbol instruction ................1 7 8.

  • Page 3: The Installation And Components Of Equipment

    The product is mainly used for teeth cleaning and also an indisensable equipment for teeth disease prevention and treatment. The ultrasonic scaler D600 LED has scaling, perio functions with the following features: 1.1.1 The handpiece can be autoclaved to high temperature 134 °C...
  • Page 4 m) Degree of protection against harmful ingress of water: Ordinary equipment, the foot switch is drip-proof equipment (IPX1) n) Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air, Oxygen or Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

  • Page 5: Installation And Adjustment

    1.4.3 Instruction of using wrench Picture 3 Picture 4 2. Installation and adjustment 2.1 Operation 2.1.1 Open the packing box, make sure that all the parts and accessories are complete according to the packing list, take the main unit...
  • Page 6 out of the box, and put it on the the stable plane facing to the operator. 2.1.2 Turn the water control knob to the max according to the picture 1 direction, Do not screw it over tight in case of damage. [ note 1] 2.1.3 Insert the plug of the foot switch to its socket.

  • Page 7: Maintenance

    2.2 Cleaning mode It is suggested to wash and disinfect the water pipe after scaling everyday. The “Cleaning mode” can wash and disinfect the water pipe, reducing the crystal substance and bacterias in water pipe. Operation: 1.Put distilled water or mineral substance into water tank. 2.Press the automatically water supply button and outside water button at the same time (1s) to start the “Cleaning mode”...
  • Page 8 Fault Possible cause Solutions Screw the tip on the The tip is in loose contact. handpiece tightly (See Picture 6). The scaling tip doesn't The connect plug between vibrate but there is the handpiece and the circuit Contact our dealers or us. water flowing out when board is in loose contact.
  • Page 9 Fault Possible cause Solutions Turn the water control The amount of spouting switch to a higher grade The handpiece water is too little. [note 1]. generates heat. The potentiometer is broken. Change a new one. The water control knob is a Turn the knob to a high low grade.
  • Page 10 picture 5 a) Snip the water pipe at a distance of 10cm to 20cm from the water entrance. b) Turn on the power switch, get through to the power. c) Connect the multi-function syringe of the dental unit to the water pipe.

  • Page 11: Cleaning, Disinfection And Sterilization

    others buttons will go out. 3.Link the connector and the handpiece with the drainage device. 4.Step the pedal, the device would start self-cleaning. After that the pedal could be loosen. 5.After cleaning for 30s, the device would stop self-cleaning. Or u can stop by step the pedal again or press the automatic water supply button.
  • Page 12 as well as the hygiene regulations of the hospital or clinic,especially with regard to the additional requirements for the inactivation of prions. 4.1.2 Post-operative treatment The post-operative treatment must be carried out immediately, no later than 30 minutes after the completion of the operation. The steps are as follows: 1.
  • Page 13 operation. The cleaning can be divided into automated cleaning and manual cleaning. Automated cleaning is preferred if conditions permit. 4.3.1 Automated cleaning •The cleaner is proved to be valid by CE certification in accordance with EN ISO 15883. •There should be a flushing connector connected to the inner cavity of the product.
  • Page 14 3. Start the program. 4. After the program is finished, remove the product from the washer- disinfector, inspect (refer to section “Inspection and Maintenance”) and packaging (refer to chapter “Packaging”). Dry the product repeatedly if necessary (refer to section “Drying”). Notes a) Before use, you must carefully read the operating instructions provided by the equipment manufacturer to familiarize yourself with the...
  • Page 15 Methods 1. Spread a clean white paper (white cloth) on the flat table, point the product against the white paper (white cloth), and then dry the product with filtered dry compressed air (maximum pressure 3 bar). Until no liquid is sprayed onto the white paper (white cloth), the product drying is completed.
  • Page 16 contaminants; d) Avoid contact with parts of different metals when packaging. 4.8 Sterilization Use only the following steam sterilization procedures (fractional pre- vacuum procedure*) for sterilization, and other sterilization procedures are prohibited: • The steam sterilizer complies with EN13060 or is certified according to EN 285 to comply with EN ISO 17665;...

  • Page 17: Precaution

    storage cabinet. The storage time should not exceed 7 days. If it is exceeded, it should be reprocessed before use. Notes: a) The storage environment should be clean and must be disinfected regularly; b) Product storage must be batched and marked and recorded. 4.10 Transportation 1.
  • Page 18 Ⅰ. The maintenance, repair and modification are made by the manufacturer or the authorized dealer. Ⅱ . The changed components are original of "DTE" and operated correctly according to instruction manual. 5.1.16 The screw thread of the scaling tips produced by other manufacturers maybe coarse, rusty and collapsed, which will damage the screw thread of the handpiece irretrievably.

  • Page 19: After Service

    5.3.3 This equipment should be stored in a room where the relative humidity is 10% ~ 93%, atmospheric pressure is 70kPa to106kPa, and the temperature is -20 °C ~ °C 5.3.4 Please turn off the power switch and pull out the power plug when the equipment is not used.

  • Page 20: Environmental Protection

    Foot switch interface Used indoor only Adjustment for the water Sterilizable up to the flow temperature specified Mode of outside-water Mode of auto-water system system Water entrance pressure Earth (ground) Follow Instructions for CE marked product Adjustment for the water flow ， in Mode of auto-water system Appliance compliance WEEE directive Atmospheric pressure for storage...

  • Page 21: Emc - Declaration Of Conformity

    Guidance and manufacturer’s declaration - electromagnetic emissions The models D600, D600 LED are intended for use in the electromagnetic environment specified below. The customer or the user of the models D600, D600 LED should assure that it is used in such an environment.
  • Page 22 Guidance & Declaration - Electromagnetic immunity The models D600, D600 LED are intended for use in the electromagnetic environment specified below. The customer or the user of the models D600, D600 LED should assure that it is used in such an environment.
  • Page 23 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the models D600, D600 LED are used exceeds the applicable RF compliance level above, the model D600, D600 LED should be observed to verify normal operation.

  • Page 24: Statement

    The models D600, D600 LED are intended for use in electromagnetic environment in which radiated RF disturbances is controlled. The customer or the user of the models D600, D600 LED can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile...

  • Page 25: Table Of Operating Power Of The Tips

    TABLE OF OPERATING POWER OF THE TIPS Scaling Endodontics Tip Model Power Tip Model Power 1-10(G) 1-6(E) 1-10(G) ED3D 1-3(E) GD4D 1-10(G) 1-6(E) 1-10(G) ED4D 1-3(E) 1-10(G) 1-6(E) 1-10(G) ED5D 1-3(E) 1-10(G) 1-6(E) 1-10(G) 1-6(E) GD10 1-10(G) 1-10(E) GD11 1-10(G) 1-10(E) GD12 1-10(G)
  • Page 26 ZMN-SM-124 V1.7-20201124...
