- Page 1 WIFI /3G COMMUNICATOR Installer Manual 3G-COM-G ENGLISH www.garnet.com.ar...
-
Page 2: General Information

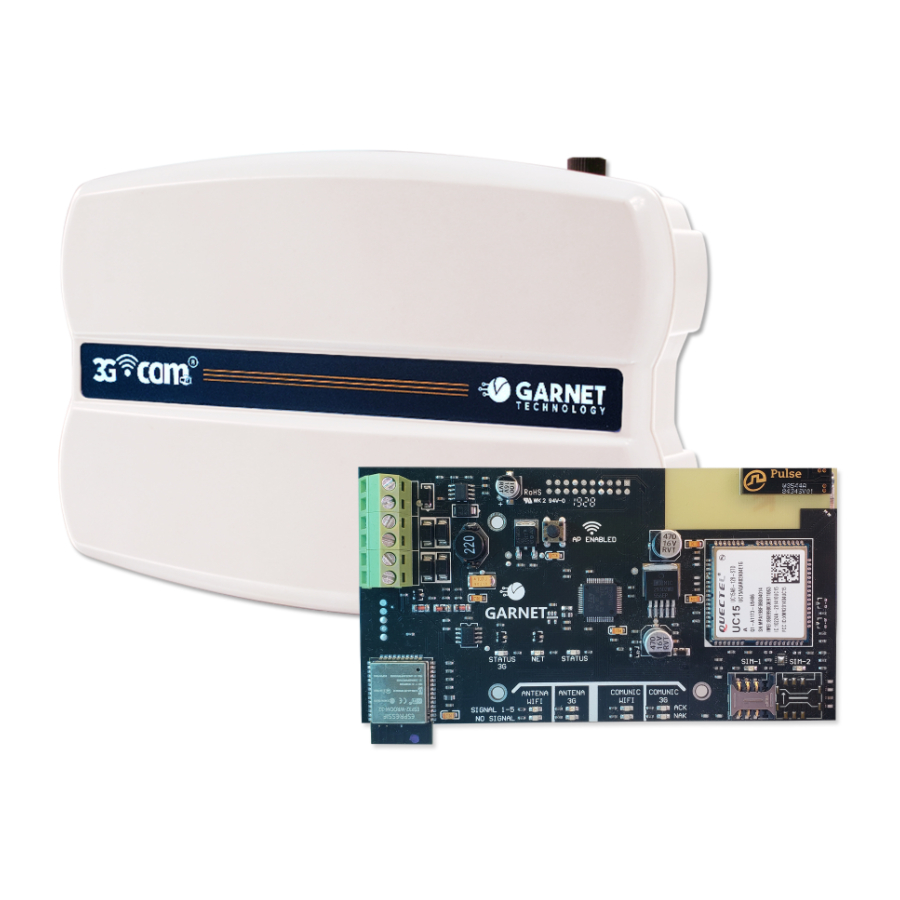

General information The 3G-COM-G communicator is designed to report events through an Internet connection across three communication channels: 1) Internet connection through a WiFi network 2) Internet connection using a mobile data service 3) Text message transmission using a cell phone service The communicator prioritizes communications through a WiFi connec- tion. -
Page 3: Module Description
DC1 and SDC2 com- munication protocols. Panel control methods: The 3G-COM-G Communicator allows panel control with two methods: the use of the Garnet Control App and text or SMS messaging. Compatible panels: The 3G-COM-G Communicator is compatible with Garnet and DSC panel families. - Page 4 Connections: Figure 1 –BUS-C485 mode of operation: - AUX + + BELL - B PGM1 PGM2 RING SIM-1 SIM-2 ANTENA ANTENA COMUNIC COMUNIC WIFI WIFI SIGNAL 1-5 NO SIGNAL...
- Page 5 Figure 2 – DSC mode of operation: PANEL DSC KEY PAD - AUX + + BELL - 1 PGM 2 T-1 EGND YEL GRN SIM-1 SIM-2 ANTENA ANTENA COMUNIC COMUNIC WIFI WIFI SIGNAL 1-5 NO SIGNAL...
-
Page 6: Status Led Indicators
Status led indicators The 3G-COM-G Communicator has a variety of leds that report different status of the communicator. These include leds to indicate WiFi network signal strength, 3G network signal strength, server report results and monitoring station report results. Explanation of led indicators... - Page 7 Communication Led indicators The communicator is prepared to communicate through WiFi and mobile data. In both cases, in the event there is a communication or some kind of report, the result will be indicated through leds represen- ting such communications. In case of a report to the monitoring station or in residential format, the result shall be represented through two leds, one representing a successful report (ACK) or another indicating a failure in communication...
- Page 8 Communicator / Alarm panels programming Alarm panel programming: To configure the Garnet alarm panels through the communicator, the communicator shall previously be activated in the panels. To that end, follow the steps below in the panel programming section: With Keypad G-LCD732 / G-LCD732RF / KPD-860 / KPD-860RF...
- Page 9 In case this result is not obtained, repeat the steps above. The cell phone shall be in “Flight” mode when connecting to the module WiFi network. 5) Once ready, open the Garnet Programmer app and follow the instructions you wish to program. Note: During communicator programming inside the “status” display,...
- Page 10 Following press the button “Verify” on your cell phone. Your app will be ready to be used in a few seconds. Note: The Garnet Control app allows the addition of up to 20 users. The main user will be the “Administrator”. The Administrator may invite the remaining 19 users of the system in two different user categories: •...
- Page 11 The communicator is programmed through the “Garnet Programmer” app. This app also allows the programming of alarm panels. To download the programming app please scan the following QR codes as applicable or search the Garnet Programmer app in your download store. Android...
- Page 12 In case this result is not obtained, repeat the steps above. The cell phone shall be in “Flight” mode when connecting to the module WiFi network. 5) Once ready, open the Garnet Programmer app and follow the instructions you wish to program. Activation of DSC Panel telephones From you phone store download the User “Garnet Control”...
- Page 13 Following press the button “Verify” on your cell phone. Your app will be ready to be used in a few seconds. Note: The Garnet Control app allows the addition of up to 20 users. Each user registering on the app can have a different user code that shall be previously loaded in the alarm panel.
- Page 14 Remote control using 3G-COM-G Communicator through SMS (Text message) The panel control with 3G-COM-G Communicators can be done with mobile data. However, if the communicator is not connected to Internet because the chip has no mobile data or, if your telephone has the same problem, the communicators allow the control to be performed through text messages (SMS).
- Page 15 To such end, it is important to take into account the following parameters: • Cell phone number: We must know the telephone number of the communicator to be able to send the messages. • Partition password: This password shall be recorded in the configu- ration of the communicator;...
- Page 16 Nota: The zone parameters shall have two digits, therefore, if we want to cancel zone 5 we shall enter the command Inhibit z05, taking into account that the letter “z” shall always be lower case. Following are some model text messages. Let us recall the format of commands: [s][password][s][command][s][parameter] Examples:...
- Page 17 NOTES...
- Page 18 NATIONAL WARRANTY: Alonso Hnos. Sirenas S. A. (Garnet Technology) warrants the original purchaser that for a period of eighteen (18) months from the date of purchase, the product shall be free of defects in materials and workmanship un- der normal use. During the warranty period, Alonso Hnos. Sirenas S.A. shall, at its option, repair or replace any defective product.
- Page 19 WARNING: Alonso Hnos, Sirenas S.A. recommends that the entire system be completely tested on a regular basis. Howe- ver, despite frequent testing, and due to, but not limited to, criminal tampering or electrical disruption, it is possible for this product to fail to perform as expected.
