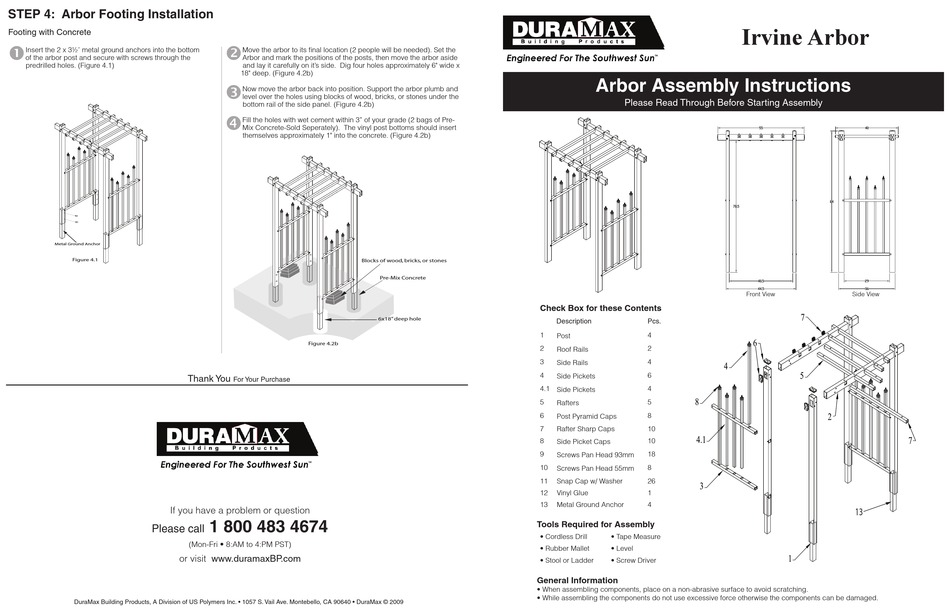

DuraMax Irvine Arbor Assembly Instructions

STEP 4: Arbor Footing Installation
Footing with Concrete

Insert the 2 x 3½¨ metal ground anchors into the bottom
of the arbor post and secure with screws through the
predrilled holes. (Figure 4.1)
Metal Ground Anchor
Figure 4.1
Thank You
If you have a problem or question
Please call
or visit www.duramaxBP.com
DuraMax Building Products, A Division of US Polymers Inc. • 1057 S. Vail Ave. Montebello, CA 90640 • DuraMax © 2009

Move the arbor to its final location (2 people will be needed). Set the
Arbor and mark the positions of the posts, then move the arbor aside
and lay it carefully on it's side. Dig four holes approximately 6" wide x
18" deep. (Figure 4.2b)

Now move the arbor back into position. Support the arbor plumb and
level over the holes using blocks of wood, bricks, or stones under the
bottom rail of the side panel. (Figure 4.2b)

Fill the holes with wet cement within 3" of your grade (2 bags of Pre-
Mix Concrete-Sold Seperately). The vinyl post bottoms should insert
themselves approximately 1" into the concrete. (Figure 4.2b)
Blocks of wood, bricks, or stones
Figure 4.2b
For Your Purchase
1 800 483 4674
(Mon-Fri • 8:AM to 4:PM PST)
Pre-Mix Concrete
Check Box for these Contents
6x18" deep hole
Description
1
Post
2
Roof Rails
3
Side Rails
4 Side Pickets
4.1 Side Pickets
5
Rafters
6
Post Pyramid Caps
7 Rafter Sharp Caps
8
Side Picket Caps
9
Screws Pan Head 93mm
10
Screws Pan Head 55mm
11 Snap Cap w/ Washer
12 Vinyl Glue
13 Metal Ground Anchor
Tools Required for Assembly
• Cordless Drill
• Rubber Mallet
• Stool or Ladder
General Information
• When assembling components, place on a non-abrasive surface to avoid scratching.
• While assembling the components do not use excessive force otherwise the components can be damaged.

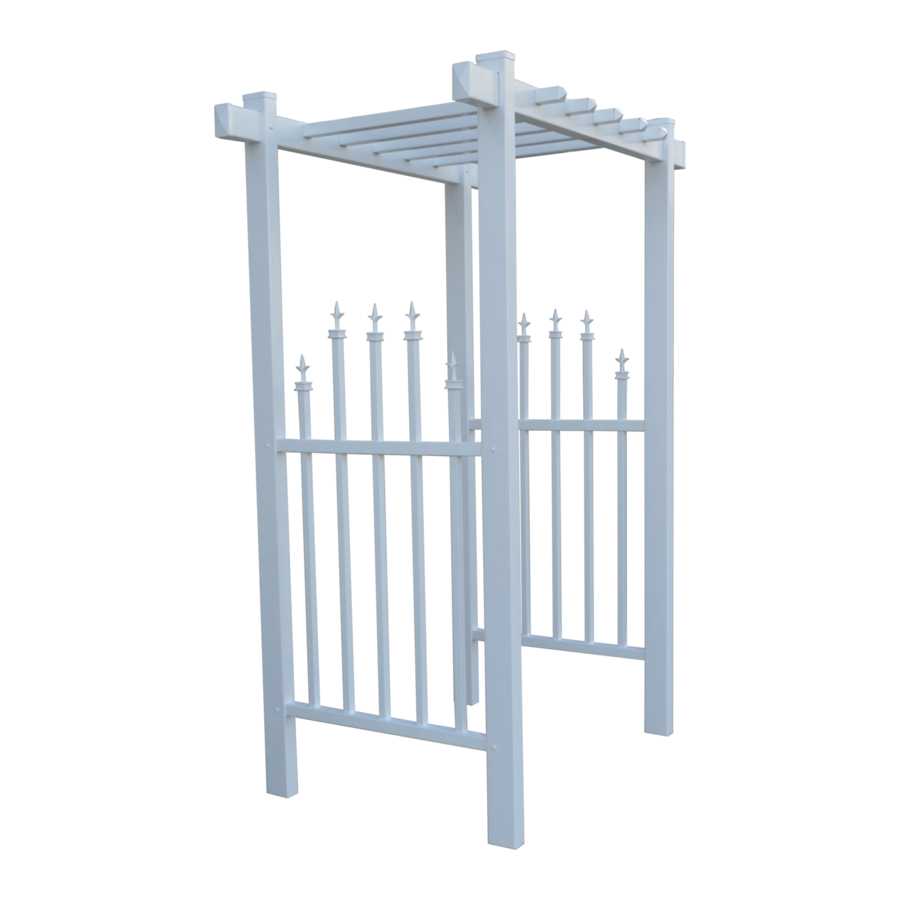

Irvine Arbor
Arbor Assembly Instructions
Please Read Through Before Starting Assembly
Front View
Pcs.
4
2
4
6
4
5
8
10
10
18
8
26
1
4
• Tape Measure
• Level
• Screw Driver
Side View
13
