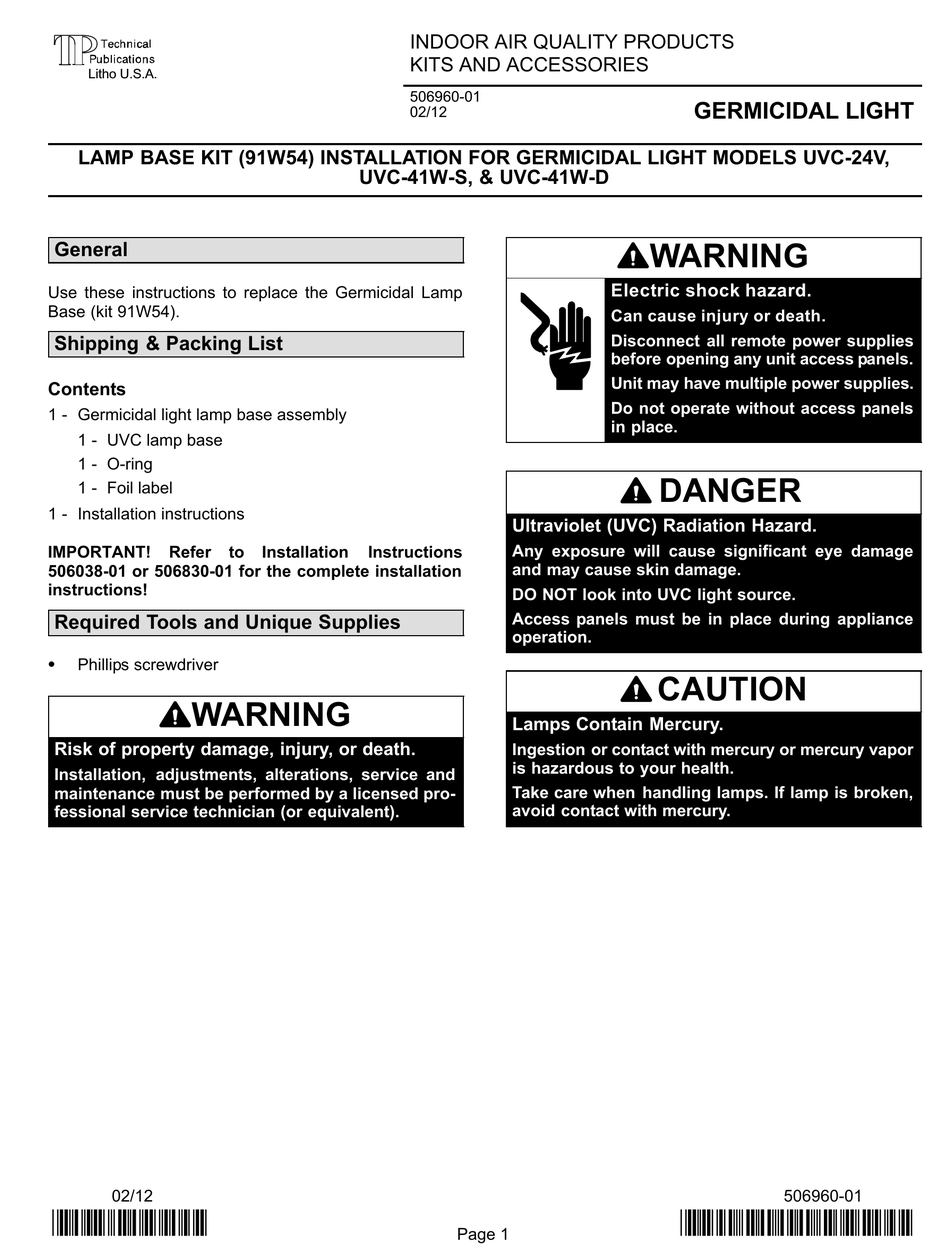

LAMP BASE KIT (91W54) INSTALLATION FOR GERMICIDAL LIGHT MODELS UVC−24V,
General
Use these instructions to replace the Germicidal Lamp
Base (kit 91W54).
Shipping & Packing List
Contents
1 − Germicidal light lamp base assembly
1 − UVC lamp base
1 − O−ring
1 − Foil label
1 − Installation instructions
IMPORTANT! Refer
506038−01 or 506830−01 for the complete installation
instructions!
Required Tools and Unique Supplies
S
Phillips screwdriver
WARNING
Risk of property damage, injury, or death.
Installation, adjustments, alterations, service and
maintenance must be performed by a licensed pro-
fessional service technician (or equivalent).
02/12
*2P0212*
UVC−41W−S, & UVC−41W−D
to Installation Instructions
INDOOR AIR QUALITY PRODUCTS
KITS AND ACCESSORIES
506960−01
02/12
Ultraviolet (UVC) Radiation Hazard.
Any exposure will cause significant eye damage
and may cause skin damage.
DO NOT look into UVC light source.
Access panels must be in place during appliance
operation.
Lamps Contain Mercury.
Ingestion or contact with mercury or mercury vapor
is hazardous to your health.
Take care when handling lamps. If lamp is broken,
avoid contact with mercury.
Page 1
GERMICIDAL LIGHT
WARNING
Electric shock hazard.
Can cause injury or death.
Disconnect all remote power supplies
before opening any unit access panels.
Unit may have multiple power supplies.
Do not operate without access panels
in place.
DANGER
CAUTION
506960−01
*P506960-01*
