SHELTERS MUST BE ANCHORED AT ALL TIMES WITH PERMANENT GROUND ANCHORS.
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or
damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
Parts
Dolly Handle (1)
(Part# UZ1112)
Swivel Tire
Mount Assembly (4)
(Part# UZ1104)
Assembly Tools
7/16", 1/2" & 9/16"
Ratchet with
Wrenches
7/16", 1/2" & 9/16"
THIS EQUIPMENT MUST BE STORED IN A SECURED, SHELTERED AREA WHEN NOT IN USE OR IN THE THREAT
OF HIGH WINDS. ANY WEATHER DAMAGE TO THIS EQUIPMENT WILL NOT BE COVERED UNDER KWIK GOAL'S
PRODUCT GUARANTEE. DO NOT LEAVE THIS EQUIPMENT UNATTENDED.

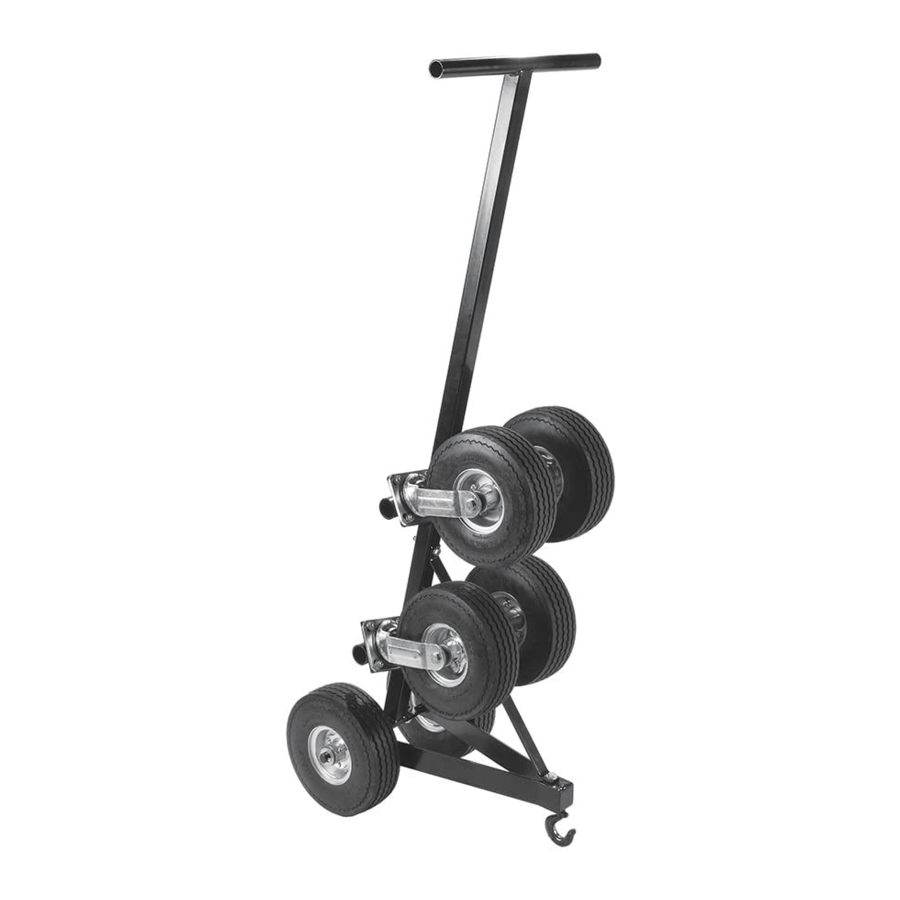

Assembly Instructions FOR 9B1201 SHELTER DOLLY
Handle Support Brace (1)
(Part# UZ1110)
Spacer Plate (4)
Swivel Tire (4)
(Part# UZ1311)
(Part# VZ629)
Pliers
Sockets
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
©
2010, Rev 2019 Kwik Goal Ltd.
Dolly Axle Assembly (1)
(Part# UZ1312)
Hardware
Note: Hardware may be packaged separately
in one or more boxes. Open all packages
before beginning assembly.
3/16" X 1-1/2" Cotter Pin
1/4" U-Bolt
1/4" Flat Washer
1/4" Lock Nut
5/16" X 1-1/2" Hex Bolt
5/16" Flat Washer
5/16" Lock Nut
3/8" X 2-1/2" Hex Bolt
5/32" Hex wrench
3/8" X 3" Hex Bolt
3/8" Flat Washer
3/8" Lock Nut
3/4" Flat Washer
1/4" X 1-1/4" Button Head
Dolly Tire (2)
(Part# VZ639)
(Part# TZ310)
(Part# TZ309)
(Part# TZ147)
(Part# TZ19)
(Part# TZ341)
(Part# TZ4)
(Part# TZ5)
(Part# TZ165)
(Part# TZ325)
(Part# TZ189)
(Part# TZ197)
(Part# TZ2)
(Part# TZ397)
Bumper (1)
(Part# VZ821)
(2)
(2)
(4)
(4)
(16)
(16)
(16)
(1)
(1)
(4)
(2)
(4)
(1)
NZ284 Rev. 12/04/19
