Atoll IN400se Owner's Manual

C :
ONNECTINGS

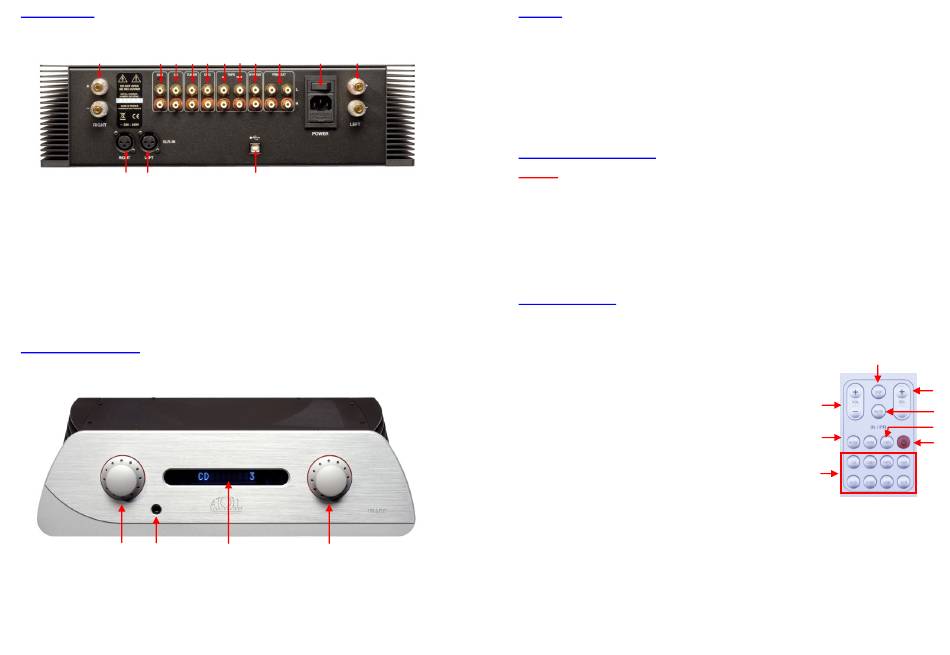

Rear view of appliance:
13 1 2 3 4 5 6 7
10 11
1) Auxiliary Input
(optional phono or SPDIF)
2) C.D. Input
3) Tuner Input
4) DVD Input
5) Tape Input (PLAY)
6) Tape Output (REC)
7) BY-PASS Input
8) Preamp. Outputs (to 1 or 2 power
amplifiers or to a Subwoofer)
D :
ETAILS OF FUNCTIONS

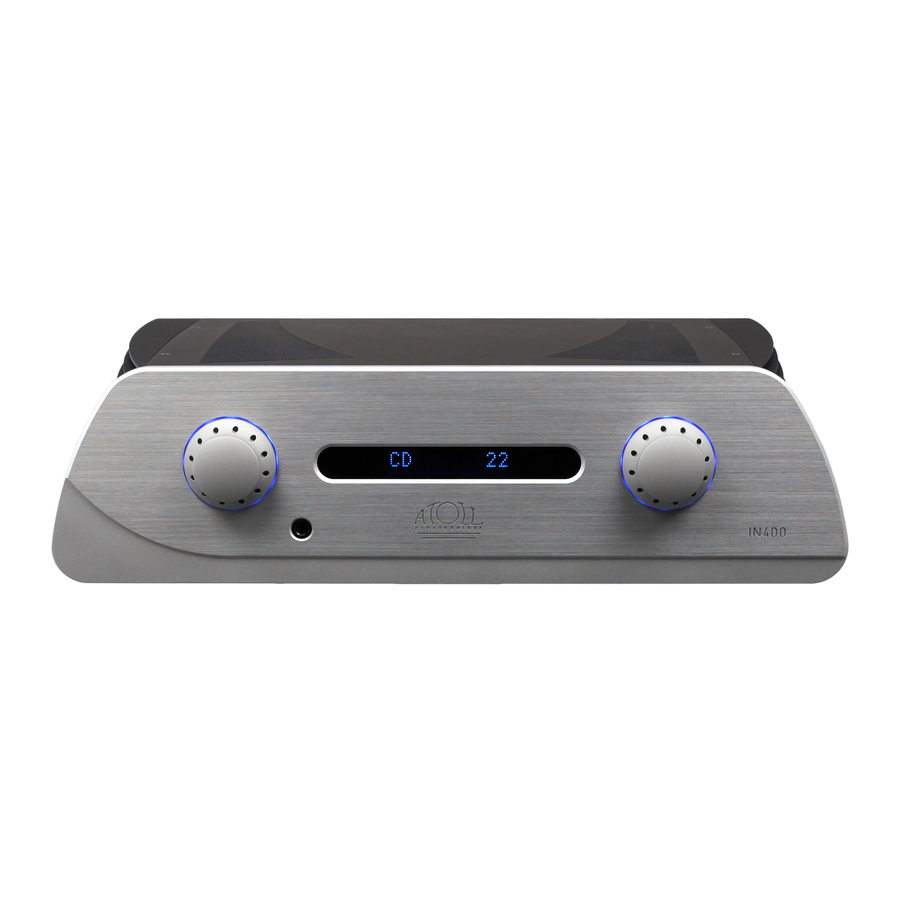

Front view of appliance:
15 2 3
15 16
15) ON/OFF knob (by pushing) ; sources selection (by rotation) ;
16) Headphones jack:
speakers Outputs are switshed off when a headphones is plugged in;
17) Display:
shows the selected source (on the left) and volume level (on the right);
18) Knob to put ON, volume and menus setup;
Access to Balance (1 press) and Light (2 press).
8 9 14
12
9) On/Off Switsh and general
plug In (with protection fuse)
10) XLR Input – right channel
11) XLR Input – left channel
12) USB Input (B type):
to connect to
a computer
with compatible software
13) Right Speaker Output (+ & -)
14) Left Speaker Output (+ & -)
1 4 7 12 13 14
5
17 18
See « Remote » chapter.
A :
DVISES
- To optimise the performances of your amplifier, you should switch it on at least
half an hour before any listening, the time for power stage to reach their ideal
working temperature. Between two uses, it is better to let it on stand-by position,
so that the power stages remains at their optimal temperatures.
- We advise you to use good wires to link with the other elements (CD player,
loudspeakers...). Don't hesitate to take advises from your dealer.
U B -P I :
SING THE Y ASS NPUT
Careful: Put the volume at the minimum before any use of By-pass Input.
The By-pass Input offer you the capacity to use your Integrated as a Power amplifier
(plugged to an A/V processor a.i). This Input can be selected from the front panel or
with the BY-PASS key of the remote control (press during 3 seconds).
Once selected, mention « BY-PASS » appears on display. Then, no other functions
are available from front panel or remote Control. The Integrated ca be used exactly
as a Power Amp. Press once By-pass to get back from By-pass.
R C :
EMOTE ONTROL
The remote control is equipped with 2 Lithium CR2025 batteries. This remote control
is also able to drive all others ATOLL's products: CD players ; Tuner ; Integrated or
preamplifier.
19) Selects brightness of display (clear, medium, off).
(when the display is Off, a press on any key will
refresh the display during 3 seconds).
20) Volume setup - & + (from 0 to 80)
21) Inputs selection
22) direct access to sources; to activate/desactivate
the By-pass Input, press during 3 seconds.
23) ON/OFF key : on stand-by,the appliance keeps all
parameters unchanged (source, volume level, balance,
color of the knobs backlight).
24) MUTE key: To get off the Mute, press any active key of the remote control or turn a
front knob.
25) Menus access:
- Balance (1 press): once on Balance menu, setup is operated with vol – & + keys.
You can setup balance level from -9 to +9.
- Light (2 press): with this menu you can select the backlight color of the 2 front
knobs of the front panel: Red, Blue, Purple or Off.
19
21
20
24
25
21
23
22
