Summary of Contents for Toolots A03
- Page 1 Manual Paste/Liquid Filling Machine Model：A03 Operational Manual...
- Page 2 WARNING a) Be sure to read Operational Manual before the first use. b) This machine is not suitable for filling fluid with particles and non-fluid material. c) Prevent collisions during transport, storage and use of the machine...

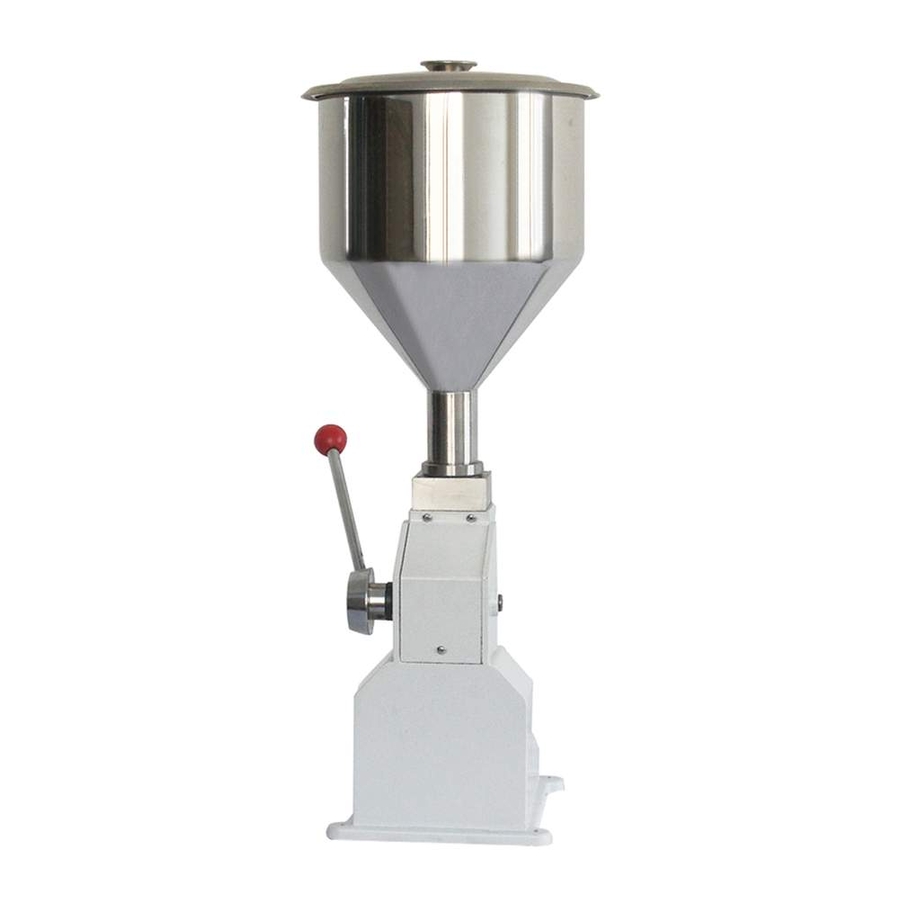

- Page 3 A03 manual paste/liquid filling machine uses a piston-type structure. All parts of the machine that in contact with filling material are made of 304 stainless steel and PTFE, which makes the machine meet food grade standards. The filling rang is 0.17 - 1.7oz (5 - 50mL), suitable for small doses filling of paste and liquid in laboratory, hospital, etc.
- Page 4 Discharging Valve Core (Fig.1-11), Discharging Valve Spring (Fig.1-11) and other parts which in contact with filling material should be disassembled and washed to prevent the material from curing inside the machine. b) The machine shell is made of aluminum alloy and the body needs to keep clean to prevent corrosion.
- Page 5 5. Fig. 1 1 - Down Adjusting Nut; 2 - Upper Locking Nut; 3 – Nozzle; 4 - Fastener; 5 - Cone Piston; 6 – Cone Piston Cover; 7 – Hopper; 8 – Material Cylinder; 9 - Piston Rod; 10 - Cylinder Sealing Ring; 11 - Discharging Valve Core; 12 –...
