Tekky 01227008 Installation And Operating Instructions

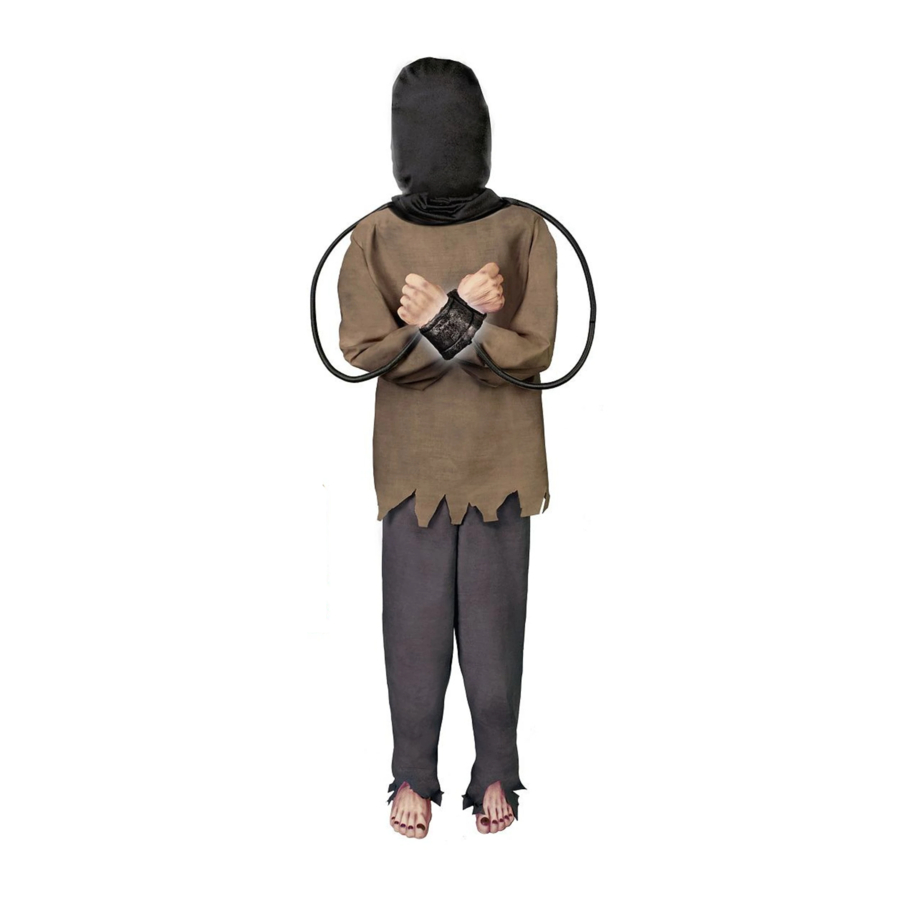

ELECTRIFIED MANIAC with electric box
INSTALLATION AND OPERATING INSTRUCTIONS
KEEP ALL PLASTIC AND WIRE PARTS AWAY FROM CHILDREN
1. 2.

PARTS

1. UPPER BODY
2. WOODEN BASE
3. FEET
4. MODULE
5. TELESCOPING LEG POLES
6. CENTER POLE
7. ADAPTER
8. PANTS WITH BRACKET
9. ELECTRIC BOX
10. MIT CABLE
1.) Snap lock four telescoping LEG POLES to the WOODEN BASE.
(Match A TO A) Press until it clicks into place.
2.) Holding the four TELESCOPING LEG POLES near the base,
extend the poles upwards with your other hand until all four
poles are locked into place. The poles are fully extended when
you hear two audible clicks.
3.)
Slide FEET over the LEG POLES connected to the WOODEN
BASE.
4.) Slide PANTS WITH BRACKET over LEG POLES connected to
the WOODEN BASE.
5.) Snap lock the MODULE to LEG POLES . (Match B to B)
Note: MODULE labeled FRONT should be pointing same way
as the front of the FEET.
6.) Pull PANTS WITH BRACKET up and attach to holes on either
side of the MODULE inserting prongs facing down.
7.) Snap lock CENTER POLE to the UPPER BODY (Match C to C)
8.) Snap lock CENTER POLE to the MODULE (Match C to C)
9.)
Connect cable located under clothes to cable coming from
MODULE. (Match D to D)
10.)
Take the rubber band with metal fastener connected to the
cu on hand, and push the metal fastener through the hole on
the other cu on hand to lock the hands together.
