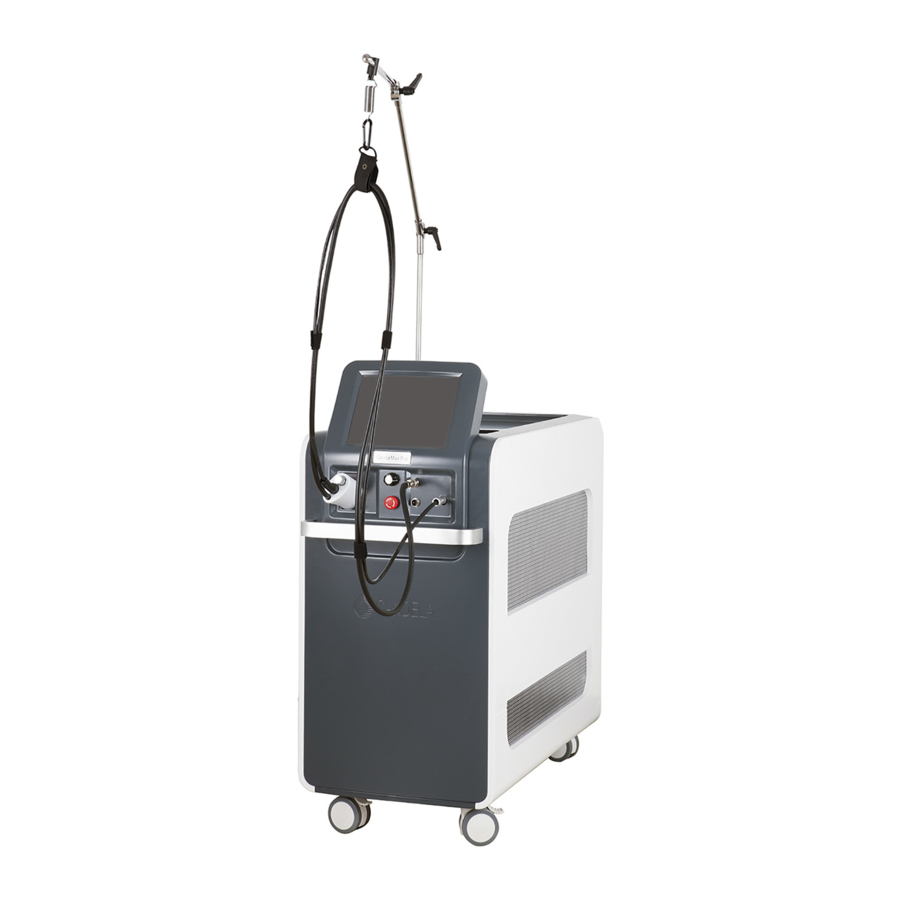

Candela GentleMax Instructions

Lvm screen

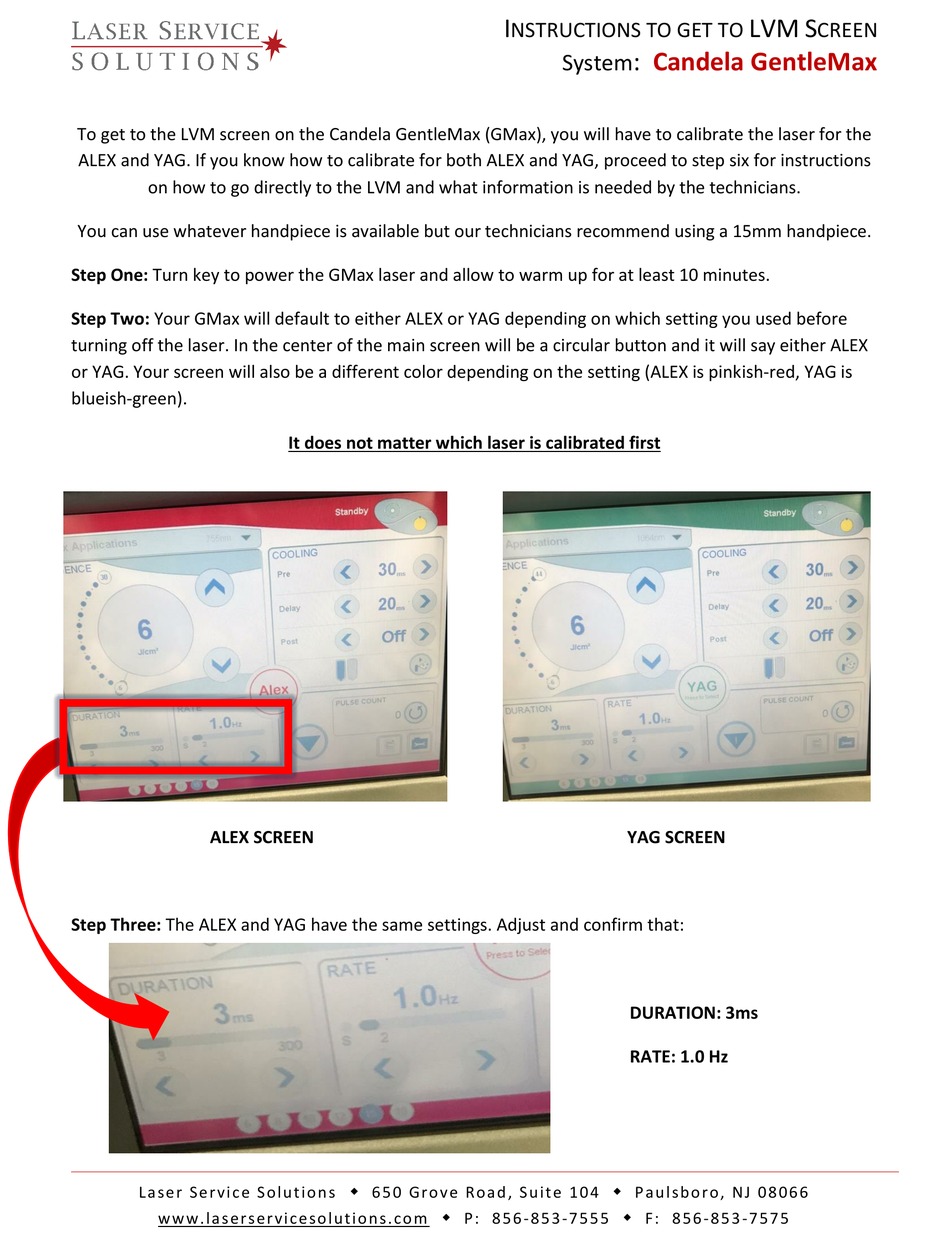

To get to the LVM screen on the Candela GentleMax (GMax), you will have to calibrate the laser for the

ALEX and YAG. If you know how to calibrate for both ALEX and YAG, proceed to step six for instructions

on how to go directly to the LVM and what information is needed by the technicians.

You can use whatever handpiece is available but our technicians recommend using a 15mm handpiece.

Step One: Turn key to power the GMax laser and allow to warm up for at least 10 minutes.

Step Two: Your GMax will default to either ALEX or YAG depending on which setting you used before

turning off the laser. In the center of the main screen will be a circular button and it will say either ALEX

or YAG. Your screen will also be a different color depending on the setting (ALEX is pinkish-red, YAG is

blueish-green).

ALEX SCREEN

Step Three: The ALEX and YAG have the same settings. Adjust and confirm that:

La se r Se r vi c e S olu t ion s  6 5 0 Gro v e Road , S u it e 10 4  P au l sb o ro, NJ 08 06 6

w w w. la s er s er vi c e so lu ti o n s. co m  P: 8 56 - 85 3 -7 55 5  F: 8 56 - 85 3 -7 57 5

It does not matter which laser is calibrated first

NSTRUCTIONS TO GET TO

Candela GentleMax

System

YAG SCREEN

DURATION: 3ms

RATE: 1.0 Hz

LVM S

CREEN

Table of Contents

Need help?

Do you have a question about the GentleMax and is the answer not in the manual?

Page 1 System To get to the LVM screen on the Candela GentleMax (GMax), you will have to calibrate the laser for the ALEX and YAG. If you know how to calibrate for both ALEX and YAG, proceed to step six for instructions on how to go directly to the LVM and what information is needed by the technicians.
Page 2 Step Four: Calibrate the laser Press Yellow Dot in the upper right hand corner of screen. Confirm Calibration Parameters by pressing the check button on lower right hand corner Press Fingerswitch Button Your laser will now starting calibrating When finished, your next screen will look like this and it will confirm that the calibration is complete: Press the check button in lower right corner to return to the first screen.
Page 3 Step Five: Switch to the other setting, either YAG or ALEX depending on what you first calibrated. Press round button in the center. Two smaller buttons will appear and say ALEX and YAG on either side of the button. Select whatever setting still needs to be calibrated. REPEAT STEPS ONE –...
Page 4 You are now at the Reports screen. Press on the LVM tab. Take a picture of this screen. It contains information that will help your technician troubleshoot your laser. The most important information is on the left side of the screen. Take a close up picture of this section.
