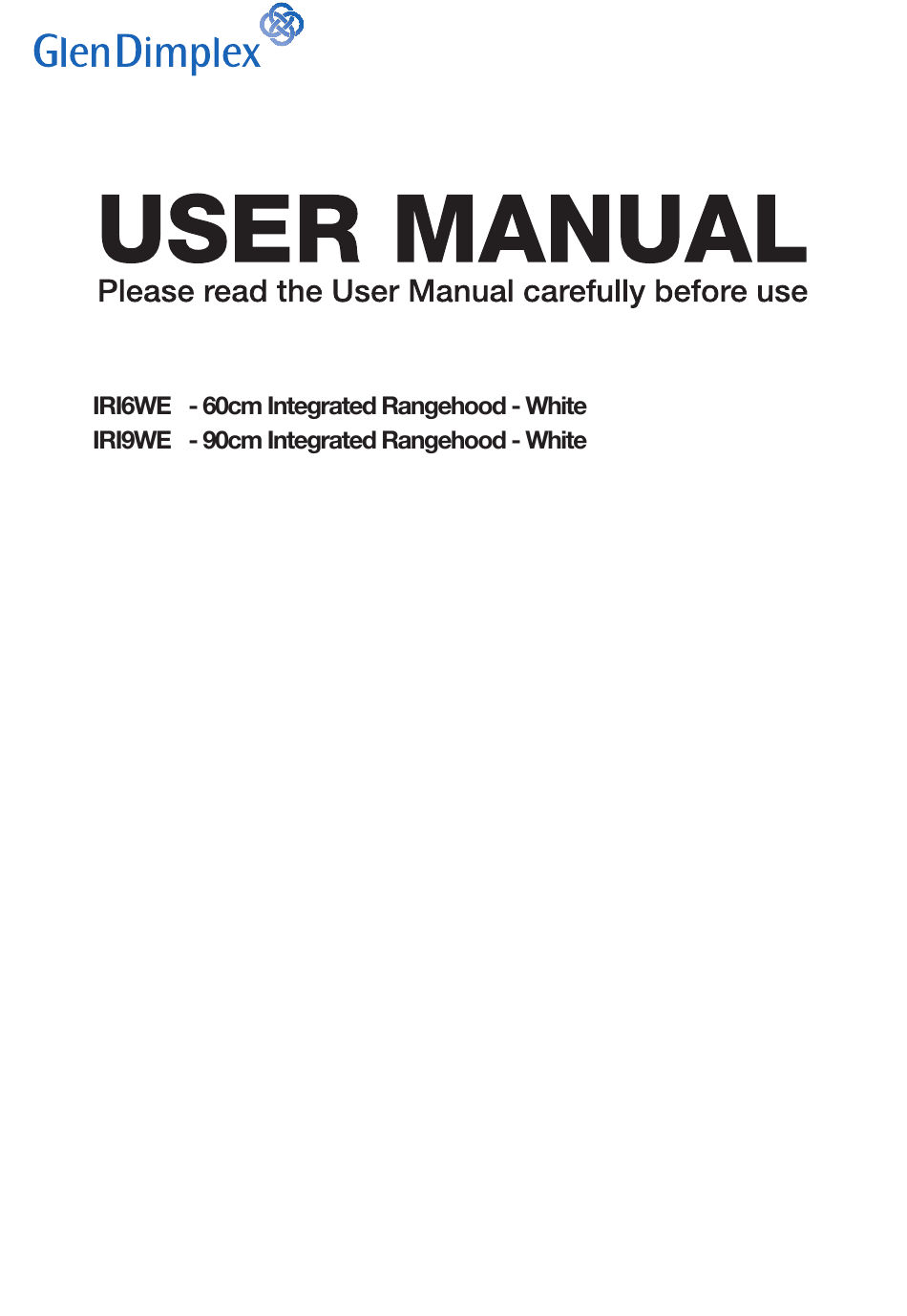

- Page 1 www.glendimplex.com.au www.glendimplex.co.nz...
- Page 2 CONTENTS For You Safety .......................... 3 Safety Precautions....................... 3 Before Connecting ...................... 3 Warnings........................4 Use and Care .......................... 6 LED Lamps ........................6 Operating Instructions ....................Cleaning your rangehood ..................Installation ..........................Electrical Connection ....................Instructions for Installation ..................Installing the carbon filter ..................
- Page 6 Operating Instructions MEDIUM HIGH LIGHT POWER SPEED SPEED SPEED OPERATING THE RANGEHOOD Turn the rangehood on by pushing the POWER button. To start the rangehood on its 1 speed, push the LOW SPEED button. An indicator light surrounding the button will illuminate. Push the LOW SPEED again to turn the motor off. To operate the 2 and 3 speed of the rangehood, push either the MEDIUM SPEED or HIGH...
- Page 10 The IRI6WE3, IRI9WE3, IRI6SE1 & IRI9SE1 are designed to be installed fully integrated into an overhead cupboard as pictured below. The IRI6WE3& IRI6SE1 are suited for a 600mm cupboard and the IRI9WE3 & IRI9SE1 are suited for a 900mm cupboard.
- Page 11 Mount the Integrated Rangehood onto the two tabs on the mounting bracket into the two matching slots located at the rear of the rangehood. (Fig. 4) Removable shelf Removable shelf (Cannot be permanently (Cannot be permanently fixed if the need for fixed if the need for servicing is required) servicing is required)
- Page 12 Above the shelf a U-shaped box can be made to cover the duct so it cannot be seen when the overhead cupboard is open. (Fig.5) 150mm Ducting required 150mm Ducting required and ducted to outside of and ducted to outside of the home the home U-shaped box...
- Page 13 The integrated rangehood can be installed in either ducted or re-circulating method. The integrated rangehood is supplied with a small length of flexible duct, although may not be sufficient in all installations. The installer needs to determine the method in which the rangehood will be installed and may need to supply the appropriate components to duct the rangehood correctly.
- Page 14 Carbon filters may be required to reduce any fumes or smells being re-directed back into the kitchen environment. OPTIONAL Carbon Filter code – CF260 Mesh Cover Mesh Cover Mesh Cover recommended to recommended to recommended to keep out insect or keep out insect or keep out insect or 150mm diameter hole in top of cupboard...
- Page 15 INSTALLING AND CHANGING THE CARBON FILTER – PART NO. CF260 This rangehood can be fitted with an optional carbon filter that will aid in the removal of grease, smoke and cooking odours from the air before it is recirculated into the room. The square carbon filter attaches to the base of the motor housing above the aluminum mesh filters.
- Page 17 MANUFACTURER GUARANTEE This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460 (Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Glen Dimplex product.
- Page 18 4. How to make a claim You may make a claim under this warranty through our website, contacting our customer care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of this document...
- Page 19 Refurbished parts may be used to repair the goods. Products are designed and supplied for normal domestic use. We will not be liable to you under this warranty for business loss or damage of any kind whatsoever. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd www.glendimplex.com.au www.glendimplex.co.nz...
- Page 20 All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty.
