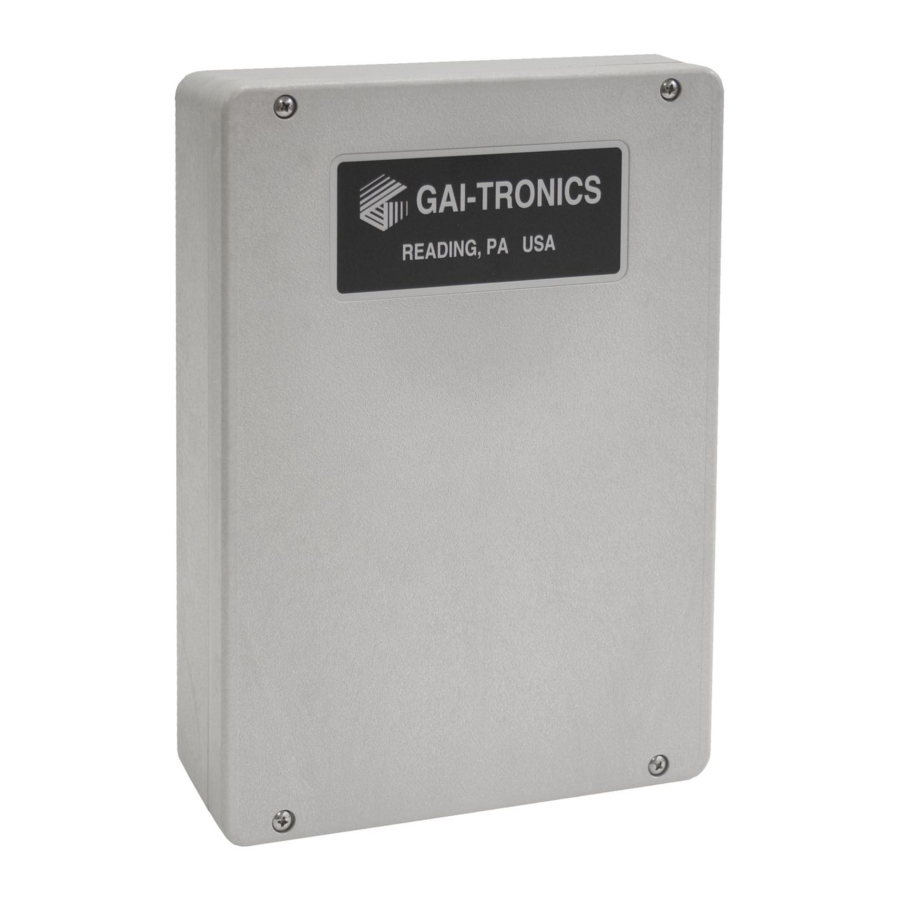

VoIP Speaker Amplifier Interface
Confidentiality Notice .....................................................................................................................1
Computer Software Copyrights ......................................................................................................1
General Information .......................................................................................................................1
Product Overview ................................................................................................................................... 1
Features and Functions .......................................................................................................................... 2
System Requirements and Limitations ................................................................................................. 2
Multicast Broadcasts .............................................................................................................................. 3
Installation ......................................................................................................................................3
Safety and General Information ............................................................................................................ 3
Electromagnetic Interference/Compatibility ......................................................................................... 3
Safe Handling of CMOS Integrated Circuit Devices ............................................................................ 3
Important Safety Information ............................................................................................................... 4
Cable Installation Safety Considerations .............................................................................................. 5
Outdoor Product .................................................................................................................................... 5
Mechanical Receipt Inspection .............................................................................................................. 5
Required Tools ........................................................................................................................................ 5
Open the VoIP Amplifier Interface ....................................................................................................... 5
Mount the Enclosure ............................................................................................................................... 6
Field Wiring ............................................................................................................................................. 7
Power .................................................................................................................................................... 8
8-Ohm Speaker Connection .................................................................................................................. 9
Output Contact Connections ................................................................................................................. 9
Audio Output Connections.................................................................................................................... 9
Programming ..................................................................................................................................9
VoIP Speaker Amplifier Interface Initial Access ................................................................................. 9
VoIP Speaker Amplifier Interface Network Configuration ................................................................ 9
Close the VoIP Amplifier Interface Assembly.................................................................................... 10
Maintenance ..................................................................................................................................10
Status Indication ................................................................................................................................... 10
Power .................................................................................................................................................. 10
Heartbeat ............................................................................................................................................. 10
Link ..................................................................................................................................................... 10
Speed ................................................................................................................................................... 10
VoIP Circuit PCBA Push Buttons ....................................................................................................... 10
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374 ◼ 800-492-1212 ◼ Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S
A H U B B E L L C O M P A N Y
T
A B L E O F
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
®
C
O N T E N T S
Pub. 42004-463C
Advertisement
Table of Contents
Related Manuals for Hubbell GAI-Tronics 10370-701
Summary of Contents for Hubbell GAI-Tronics 10370-701
-
Page 1: Table Of Contents
Pub. 42004-463C G A I - T R O N I C S ® A H U B B E L L C O M P A N Y VoIP Speaker Amplifier Interface A B L E O F O N T E N T S Confidentiality Notice ........................1 Computer Software Copyrights ......................1 General Information ........................1... - Page 2 Table of Contents Pub. 42004-463C Reset ..............................10 Factory ..............................10 USB port ..............................10 Amplifier Components ......................... 11 Service ..............................12 Reference Documentation ......................12 Specifications ..........................12 Electrical ..............................12 Power ..............................12 Audio Output ............................12 Network (Ethernet) ..........................12 Control Outputs ............................
-
Page 3: Confidentiality Notice
Pub. 42004-463C G A I - T R O N I C S ® A H U B B E L L C O M P A N Y VoIP Speaker Amplifier Interface Confidentiality Notice This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive business and technical information that is confidential and proprietary to GAI-Tronics. -
Page 4: Features And Functions
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 2 of 13 Features and Functions GAI-Tronics’ Model 10370-701 VoIP speaker amplifier interface has the following features: • 10/100 BaseT Ethernet network connection • one-way broadcasting from an IP network • weatherproof enclosure •... -
Page 5: Multicast Broadcasts
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 3 of 13 Multicast Broadcasts The VoIP speaker amplifier interface can receive multicast broadcasts. Multicast allows a single audio stream to be sent to multiple end points simultaneously, achieving multi-point paging or public address functionality over IP. -
Page 6: Important Safety Information
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 4 of 13 • When servicing a circuit module, avoid carpeted areas, dry environments, and certain types of clothing (silk, nylon, etc.) because they contribute to static build-up. Similarly, disconnect the test probe prior to removing the ground lead. •... -
Page 7: Cable Installation Safety Considerations
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 5 of 13 Cable Installation Safety Considerations Interconnecting communication and Class 2 dc power cables should be separated from electrical light or other Class 1 circuits by at least 2 inches. The exception is where Class 1 wiring or power circuits are run in a raceway, or are metal-sheathed or metal-clad, or are permanently separated from the conductors of the other circuitry by a continuous and firmly fixed nonconductor such as porcelain tubes or flexible tubing in addition to the insulation on the wire. -
Page 8: Mount The Enclosure
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 6 of 13 Mount the Enclosure 1. Pull on the left side of the enclosure until the hinge pins pull loose to separate the front and rear sections (see Figure 2). Set the front of the enclosure aside. 2. -
Page 9: Field Wiring
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 7 of 13 Field Wiring WARNING —Do not apply power until all the connections are wired. Consult the National Electrical Code (NFPA 70), Canadian Standards Association (CSA 22.1), and local codes for the specific requirements regarding your installation. Install all equipment without modification and according to the local and national codes. -
Page 10: Power
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 8 of 13 Power Ground The unit must be connected to earth ground: 1. Install a #6 ring lug on the incoming ground wire. 2. Secure the ground conductor to the ground stud, located in the upper right corner of the housing. PoE (Power over Ethernet) The device can be powered from the network cable if the speaker output requirement is less than 8 watts. -
Page 11: 8-Ohm Speaker Connection
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 9 of 13 8-Ohm Speaker Connection Connect an 8-ohm speaker to removable terminal block TB3 terminals 1 and 2 (see Figure 4). Output Contact Connections Two relay contact sets are available on connectors TB3 and TB1. Each contact set is form A type NO (normally open) (see Figure 4). -
Page 12: Close The Voip Amplifier Interface Assembly
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 10 of 13 Repairs or a replacement will be made in accordance with GAI-Tronics’ warranty policy if the equipment is under warranty. Please include a written explanation of all defects to assist our technicians in their troubleshooting efforts. -
Page 13: Usb Port
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 11 of 13 USB port The USB port is for GAI-Tronics service personnel only. Make no connection to this port. Figure 5. VoIP PCBA—Component Locations Amplifier Components The Model 10370-701 VoIP Speaker Amplifier Interface contains the following components: Table 3. -
Page 14: Service
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 12 of 13 Service Contact a regional service center for an RA# (return authorization number) if the equipment requires service. Equipment must be shipped prepaid to GAI-Tronics with an RA# and a purchase order number. Repairs or a replacement will be made in accordance with GAI-Tronics’... -
Page 15: Environmental
Pub. 42004-463C VoIP Speaker Amplifier Interface Page 13 of 13 Mounting ................ surface-mounting: four 0.28-inch mounting holes Color ..............................gray Shipping weight ........................6.0 lb (2.72 kg) Environmental Temperature range: Operating ..................−4 ºF to +131 ºF (−20 ºC to +55 ºC) Storage .................. - Page 16 Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed upon quotation or proposal document.
