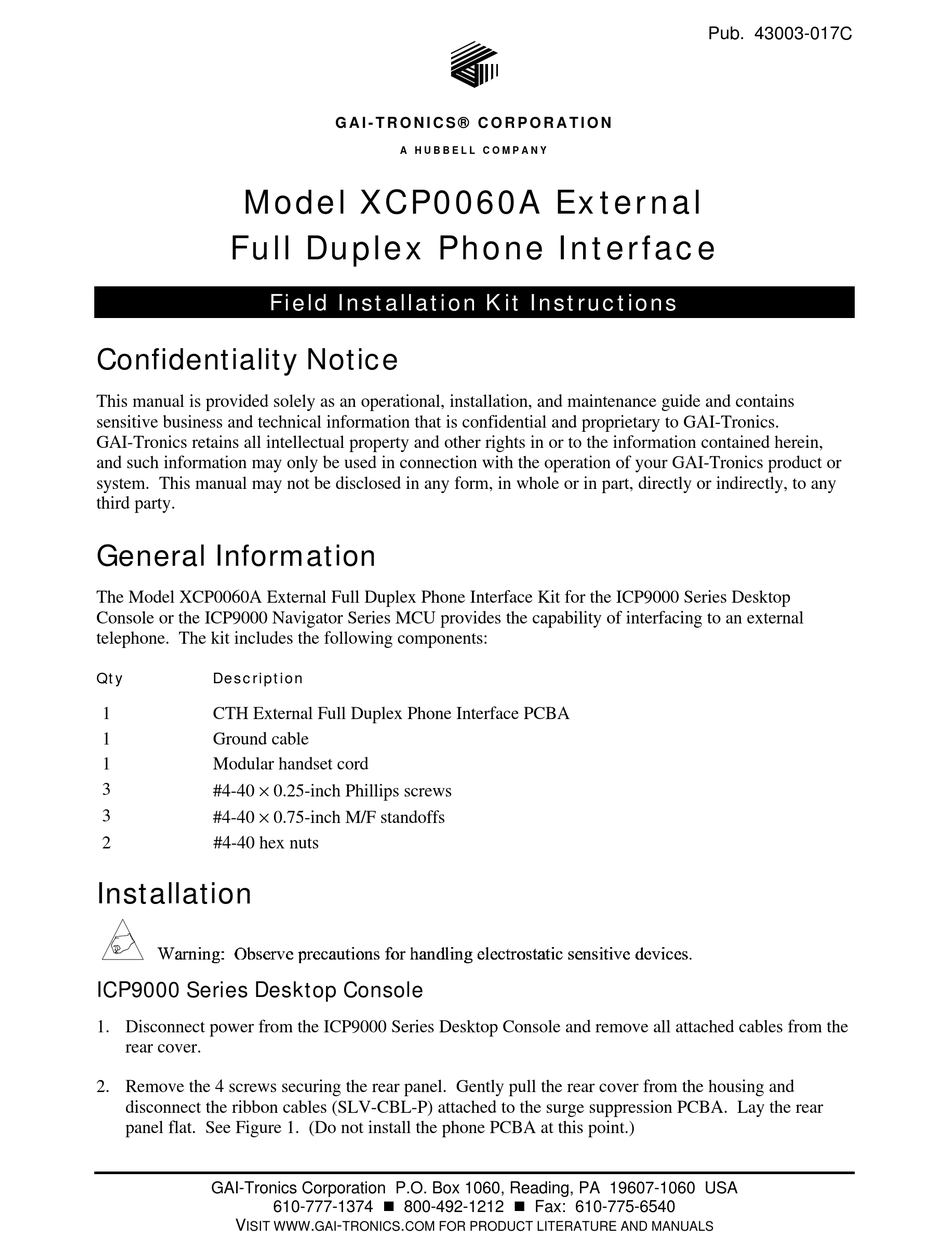

Model XCP0060A External
Full Duplex Phone Interface
Field Installation Kit Instructions
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.

General Information

The Model XCP0060A External Full Duplex Phone Interface Kit for the ICP9000 Series Desktop
Console or the ICP9000 Navigator Series MCU provides the capability of interfacing to an external
telephone. The kit includes the following components:
Qty Description
1 CTH External Full Duplex Phone Interface PCBA
1 Ground cable
1 Modular handset cord
#4-40 × 0.25-inch Phillips screws
3
#4-40 × 0.75-inch M/F standoffs
3
2 #4-40 hex nuts

Installation

ICP9000 Series Desktop Console

1. Disconnect power from the ICP9000 Series Desktop Console and remove all attached cables from the
rear cover.
2. Remove the 4 screws securing the rear panel. Gently pull the rear cover from the housing and
disconnect the ribbon cables (SLV-CBL-P) attached to the surge suppression PCBA. Lay the rear
panel flat. See Figure 1. (Do not install the phone PCBA at this point.)
