- Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-CMW101 and CMW102 Full HD Camera with wireless speaker microphone User Manual...
-
Page 2: Table Of Contents
ALFATRON ALF-CMW101 and CMW102 Content Legal Statement Preface Safety Precautions 1 Product Overview 1.1 Production Introduction 1.2 Features 1.3 Package list 1.4 Component description 2 Connection 3 Operating Description 4 Specification 5 Warranty……………………………………………………………………………. -
Page 3: Legal Statement
ALFATRON ALF-CMW101 and CMW102 Legal Statement FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 4 ALFATRON ALF-CMW101 and CMW102 Radiation Exposure: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé.
-
Page 5: Preface
ALFATRON ALF-CMW101 and CMW102 Preface Overview This document describes in detail the quick configuration of the Alfatron ALF-CMW101 and 102 series. Symbol Conventions For the purpose of this document, the following signs that may exist herein mean as below: Symbol... -
Page 6: Safety Precautions
ALFATRON ALF-CMW101 and CMW102 Safety Precautions Before using the product, read and abide by the following requirements to prevent damage to the product or your belongings. Caution · Transport, use, and store the product only under the appropriate temperatures and humidity. -
Page 7: Product Overview

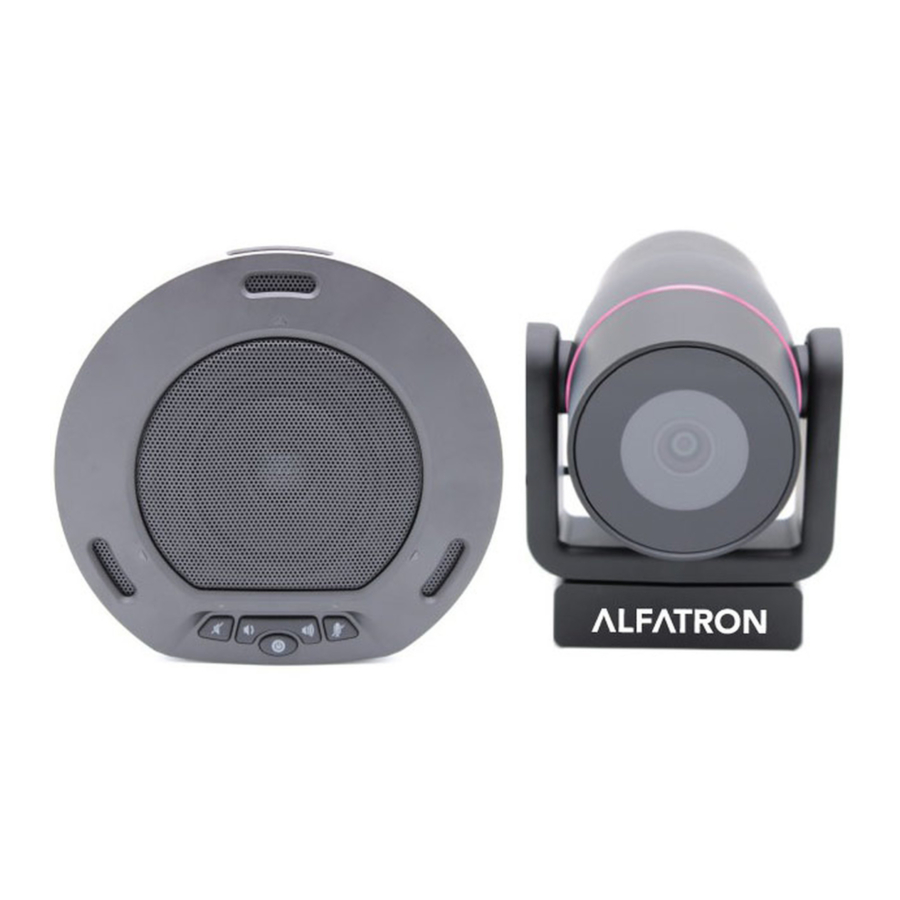

ALFATRON ALF-CMW101 and CMW102 Product Overview Product Introduction Alfatron ALF-CMW101/102 is an audio-video conference camera, configured with 120 ° field of view,1080P HD webcam and 2.4 GHz wireless speaker microphone, suitable for small and medium-sized conference scenes, personal business, home or leisure place. -
Page 8: Package List
ALFATRON ALF-CMW101 and CMW102 Package list Please check whether the materials are complete according to the following table when opening the box. Name Picture Pcs Function Description Conference shooting Pickup and display conference Camera audio Speaker- phone Speakerphone charging cable... -
Page 9: Component Description
ALFATRON ALF-CMW101 and CMW102 Component description Part 1: HD network camera Lens Lens clamp Horizontal shaft Clamp USB cable Part 2: 2.4G wireless speakerphone Triangular Indicator Mini USB interface Loudspeaker 3.5mm audio interface Microphone Bottom right Bottom left Indicator indicator... -
Page 10: Connection
ALFATRON ALF-CMW101 and CMW102 Connection Connect HD camera to a PC and long press the power button on the speaker microphone, long press again to power off. -
Page 11: Operating Description
ALFATRON ALF-CMW101 and CMW102 Operating Description Connecting USB cable to a computer, the following prompt will appear in · the lower right corner of the computer when first time using. When the device driver is installed successfully, the following prompt will ·... - Page 12 ALFATRON ALF-CMW101 and CMW102 Another way to check whether CMW101/102 is being used on the computer, click the " speaker" icon, and then it will show as following: Click " audio device" or " display devices", and then it will show: ·...
- Page 13 ALFATRON ALF-CMW101 and CMW102 If the color and resolution of video are found to be abnormal, you can use the · camera adjustment software called “Amcap” to make adjustments. Check the output size, white balance and video for the corresponding values.
-
Page 14: Specification
ALFATRON ALF-CMW101 and CMW102 Specification Description Specification Camera:104* 139* 124mm Dimension Speakerphone:155*148*37mm Camera:500g Net weight Speakerphone:337g Black Color USB 2.0 Interface Battery(speakerphone) Built-in lithium battery (7-10H) Lens 1/2.8, fixed focus, 120° Angle Sensor Full HD CMOS sensor Voice pickup range... -
Page 15: Warranty
ALFATRON ALF-CMW101 and CMW102 Warranty 1. Limited warranty in respect of Alfatron Products 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. - Page 16 ALFATRON ALF-CMW101 and CMW102 1.12 If this product is returned to the Company this product must be insured during shipment, with the insurance and shipping charges prepaid by the Customer. If this product is returned uninsured, the Customer assumes all risks of loss or damage during shipment. The Company will not be responsible for any costs related to the removal or re-installation of this product from or into any installation.
