- Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-CAM100 Full HD Camera User Manual...
-
Page 2: Table Of Contents
ALFATRON ALF-CAM100 Content Legal Statement Preface Safety Precautions 1 Product Overview 1.1 Production Introduction 1.2 Features 1.3 Package list 1.4 Component description 2 Connection 3 Operating Description 4 Specification 5 Warranty……………………………………………………………………………. -
Page 3: Legal Statement
ALFATRON ALF-CAM100 Legal Statement FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Preface
ALFATRON ALF-CAM100 Preface Overview This document describes in detail the quick configuration of the Alfatron ALF-CAM100 series. Symbol Conventions For the purpose of this document, the following signs that may exist herein mean as below: Symbol Description Danger indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 5: Safety Precautions
ALFATRON ALF-CAM100 Safety Precautions Before using the product, read and abide by the following requirements to prevent damage to the product or your belongings. Caution · Transport, use, and store the product only under the appropriate temperatures and humidity. · Install the product in a well - ventilated place and do not block the device's air vents. -
Page 6: Product Overview

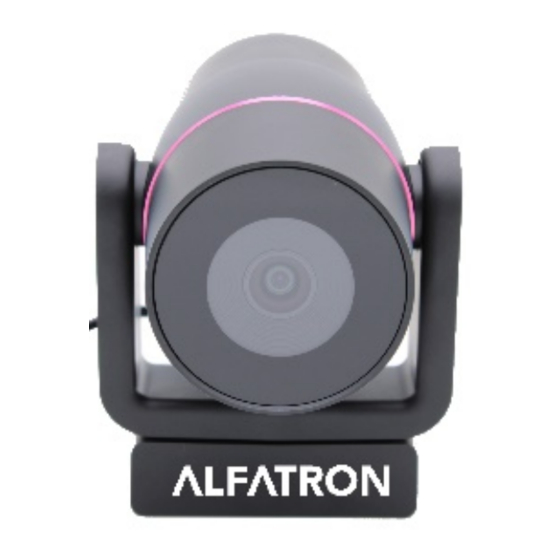

ALFATRON ALF-CAM100 Product Overview Product Introduction Alfatron ALF-CAM100 is a video conference camera, configured with 120 ° field of view,1080P HD webcam, suitable for small and medium-sized conference scenes, personal business, home or leisure place. Features · 1080P HD camera 120°Field of view, clear and fluid picture... -
Page 7: Component Description
ALFATRON ALF-CAM100 Component description HD network camera Connection Connect HD camera to a PC with the USB Cable. -
Page 8: Operating Description
When the device driver is installed successfully, the following prompt will · appear on the computer side If you need to confirm whether the equipment has installed successfully, in "computer properties" - click on the "device manager" - click on the "image equipment" ALF-CAM100 will appear in the device list. - Page 9 ALFATRON ALF-CAM100 If the color and resolution of video are found to be abnormal, you can use the · camera adjustment software called “Amcap” to make adjustments. Check the output size, white balance and video for the corresponding values. Check the white balance option with a default value of 4600 Video output size, select 1920*1080 Or change the camera to "restore the default effect"...
-
Page 10: Specification
ALFATRON ALF-CAM100 Specification Description Specification Camera:104* 139* 124mm Dimension Camera:500g Net weight Black Color USB 2.0 Interface Lens 1/2.8, fixed focus, 120° Angle Sensor Full HD CMOS sensor 1920 * 1080 Video Up to 30FPS Image transmission speed Aperture coefficient F2.0... -
Page 11: Warranty
ALFATRON ALF-CAM100 Warranty 1. Limited warranty in respect of Alfatron Products 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever. - Page 12 ALFATRON ALF-CAM100 1.12 If this product is returned to the Company this product must be insured during shipment, with the insurance and shipping charges prepaid by the Customer. If this product is returned uninsured, the Customer assumes all risks of loss or damage during shipment. The Company will not be responsible for any costs related to the removal or re-installation of this product from or into any installation.
