R-COD 500 & 500 IR
Installing, Commissioning, Using
The manual describes how to mount, connect, program and
use the devices.
RCO Security AB
Box 705
176 27 Järfälla
tel 08-546 560 00
info@rco.se
www.rco.se
© 2021 RCO Security AB. All rights reserved. February 2021.
R-COD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-COD 500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCO R-COD 500

Summary of Contents for RCO R-COD 500

  • Page 1 R-COD 500 & 500 IR Installing, Commissioning, Using The manual describes how to mount, connect, program and use the devices. RCO Security AB Box 705 176 27 Järfälla tel 08-546 560 00 info@rco.se www.rco.se © 2021 RCO Security AB. All rights reserved. February 2021.

  • Page 2: Table Of Contents

    Activate IR codes (R-COD 500 IR) ..................8 Reset individual IR codes (R-COD 500 IR) ................9 General information about programming R-COD 500 and R-COD 500 IR ....... 10 Changing the system code ....................10 Programming access codes ....................11 Erasing one access code .....................

  • Page 3: Code Lock R-Cod 500 And R-Cod 500 Ir

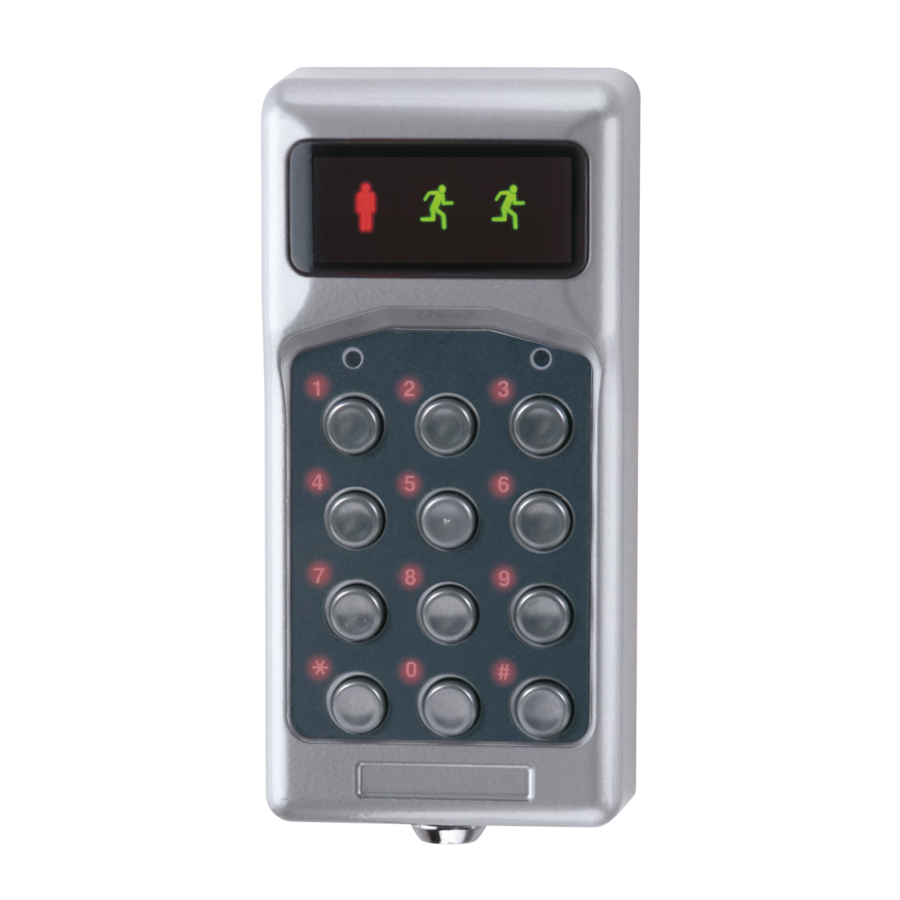

    Code lock R-COD 500 and R-COD 500 IR R-COD 500 is a compact code lock for controlling a single door. R-COD 500 has 8 code positions for access codes (3–6 digits each) plus 1 system code. The model R-COD 500 IR also has positions for five IR codes for the built-in IR receiver.

  • Page 4: R-Cod 500 Daily Use

    R-COD 500 & R-COD 500 IR R-COD 500 DAILY USE At startup 1 blink Normal start. 2 blinks Start with SW 1/8 ON. (All IR codes are deleted.) During normal use 1 blink Invalid IR code. 2 blinks Too many characters in received IR code.

  • Page 5: Mounting

    R-COD 500 & R-COD 500 IR MOUNTING Mounting Keep in mind when mounting R-COD 500 IR • Position the code lock so that the IR receiver (on the right side of the front panel) is clearly visible from the where the IR transmitter is to be used.

  • Page 6: Mounting With Recessed Box

    R-COD 500 & R-COD 500 IR MOUNTING Mounting with recessed box For best protection from vandalism, Mount the recessed box and the mount the recessed box as close to the unit’s mounting plate (4 screws). surface (or spacers) as possible.

  • Page 7: Connection

    R-COD 500 & R-COD 500 IR CONNECTION Connection Button Common 0V Time control AC/DC AC/DC Marking Function Relay (P1/6,7,8) Can be switched breaking (NC) or closing (NO). In the above example, the strike plate is activated when a valid access code or IR code is entered/received, and the connection between pins 6 and 8 is broken.

  • Page 8: Commissioning

    COMMISSIONING Commissioning Overview Only R-COD 500 IR: Activate IR codes. Change the system code (see page 10). Do not lose the system code, or a factory reset must be performed (see page 13). Set the access codes (see page 10). Use the new system code for this.

  • Page 9: Reset Individual Ir Codes (R-Cod 500 Ir)

    Not used. Normally set to OFF. Resets codes. See instructions. Reset individual IR codes (R-COD 500 IR) Disconnect the unit from power. Set the terminal for each IR code to be reset (SW1/1-5) to ON, and all others to OFF.

  • Page 10: General Information About Programming R-Cod 500 And R-Cod 500 Ir

    Enter the new code. Confirm by pressing #. The unit code + # beeps once to confirm the change. Return to operating mode by pressing the asterisk. – On model R-COD 500 IR (which does not have the far-right lamp), the green symbol blinks instead.

  • Page 11: Programming Access Codes

    R-COD 500 & R-COD 500 IR COMMISSIONING Programming access codes Description Quick guide Indication Enter the system code (default 1 2 3 4). x x x x Select menu 1. Confirm by pressing #. A beep 1 + # confirms.

  • Page 12: Adjusting The Door Opening Time

    R-COD 500 & R-COD 500 IR COMMISSIONING Adjusting the door opening time Specify how long the door is to remain open after valid access codes are entered/received. The standard (default) time is 5 seconds. Description Quick guide Indication Enter the system code (default 1 2 3 4).

  • Page 13: Performing A Factory Reset

    R-COD 500 & R-COD 500 IR PERFORMING A FACTORY RESET Performing a factory reset Normally a factory reset is only performed when the unit is commission or recommissioned, or when the system code has been lost. All information contained in the memory is erased.

  • Page 14: Specifications

    Relay, single pole Number of access codes Number of IR codes (only R-COD 500 IR) Reading distance of IR receiver (only R-COD 500 IR) Dimensions (B x H x D) Surface mounting: 70 x 144 x 37 mm Box for recessed mounting: 76 x 204 x 28 mm...
