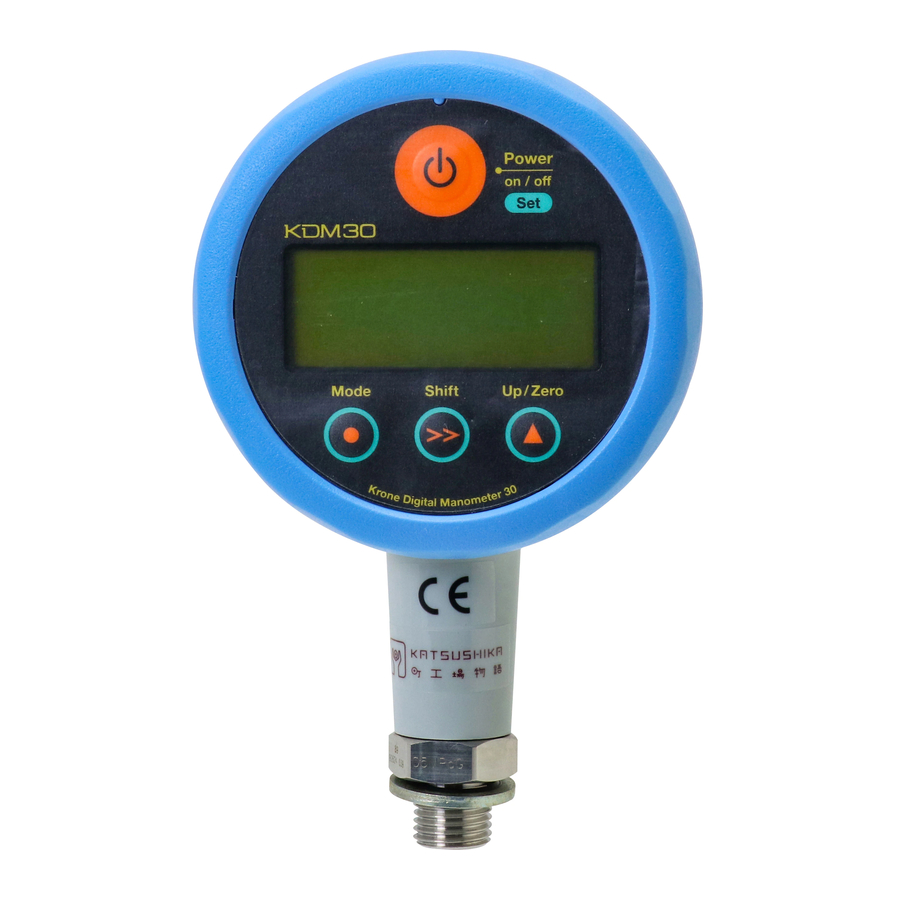

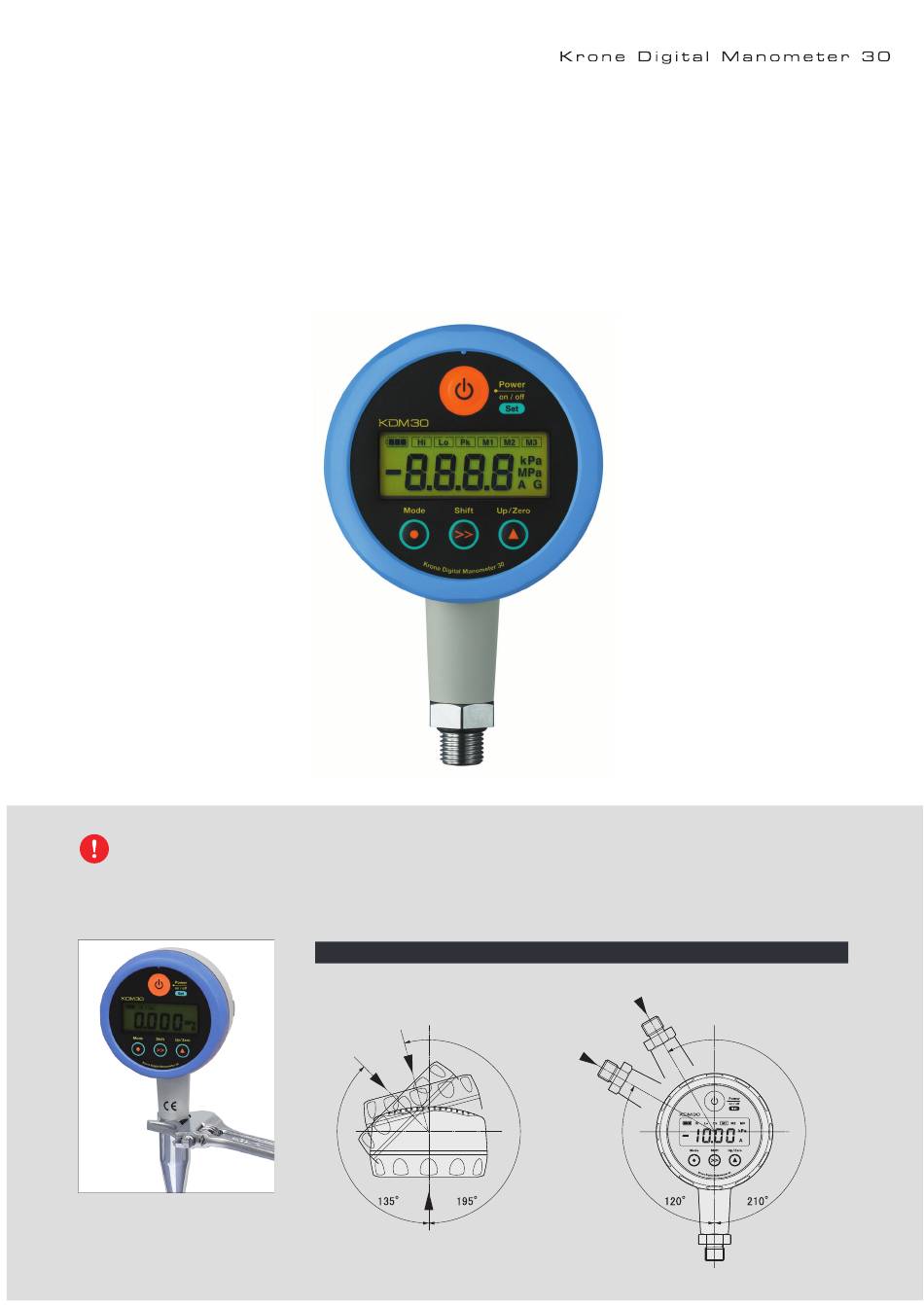

KDM30 Instruction Manual
For Battery / External Power Supply / RS232C
ver 3.6.1
CAUTION
Please use spanner / wrench when install / remove KDM30.
Installing / removing KDM30 by screwing KDM30 body causes product break.
Flexible Display
Neck rotation angle: Max 330°
Display rotation angle: Max 330°
(front)
Advertisement
Related Manuals for Krone KDM30
Summary of Contents for Krone KDM30
- Page 1 For Battery / External Power Supply / RS232C ver 3.6.1 CAUTION Please use spanner / wrench when install / remove KDM30. Installing / removing KDM30 by screwing KDM30 body causes product break. Flexible Display Neck rotation angle: Max 330° Display rotation angle: Max 330°...
- Page 2 Item Function How to operate ON：Press the Power/Set button . Power ON/OFF Power / Set OFF：Press the Power/Set button(≧3 sec) . Press the Power/Set button , and the backlight is turned on . Backlight ON/OFF Press the Power/Set button again , and the backlight is turned off . Press the Power/Set button , and you can switch to the another mode .
- Page 3 ( >3sec ) Shi Up k Shi Up Hi H Hi O p s) _ : si iv _0: N Shi Up Up k s) 2_ : si iv 2_0: N Shi Up Up k Up k Up k Up k s) G_ : si iv G_0: N...
- Page 4 ( >3sec ) 40 60 s wi Shi U ※１ ※２ ※３ ※４ - 4 -...
- Page 5 ・4-20mA current output ▼ User side connection example Wiring table ・1-5VDC voltage output ▼ User side connection example Wiring table ・RS232C output ▼ User side connection example Wiring table shield - 5 -...
- Page 6 Please make a ground (Earth) connection when using the AC100V power adapter. When using the power adapter AC100V, If the displayed value fluctuates or deviates from the accuracy, Pin 8 connect to ground (Earth). ・4-20mA current output ▼ User side connection example Wiring table ・1-5VDC voltage output ▼ User side connection example Wiring table ・RS232C output ▼ User side connection example Wiring table shield - 6 -...
- Page 7 ・External 24VDC power supply / RS232C output ▼ User side connection example Wiring table shield ・External AC100V power supply / RS232C output ▼ User side connection example Wiring table shield - 7 -...
- Page 8 *The design and specifications are subject to change without prior notice for product improvement. KRONE CORPORATION https://www.krone.co.jp Head office Osaka branch TEL+81-3-3695-5431 TEL+81-6-6361-4831 FAX+81-3-3695-5698 FAX+81-6-6361-9360 Email : sales-tokyo@krone.co.jp Email : sales-osaka@krone.co.jp OM40154-0014-65 2021/3...
