Summary of Contents for ETCR 001F
-
Page 2: Table Of Contents
CONTENT Warning ....................1 Ⅰ Introduction ..................2 Ⅱ Electrical symbol ................3 Ⅲ Range ....................3 Ⅳ Technical specifications ..............4 Ⅴ Structure ..................... 6 Ⅵ Operating Method ................7 1. Plug connection ..............7 2. Switch ..................7 3. ... -
Page 3: Warning
Warning Thanks for your purchase of ETCR001F Flexible coil current sensor (Integrator). For better use of the product, please make sure: ---to read this user manual in details. ---to abide by the safety regulations and precautions strictly. In any case, use this sensor should pay special attention to safety. ... -
Page 4: Ⅰ Introduction

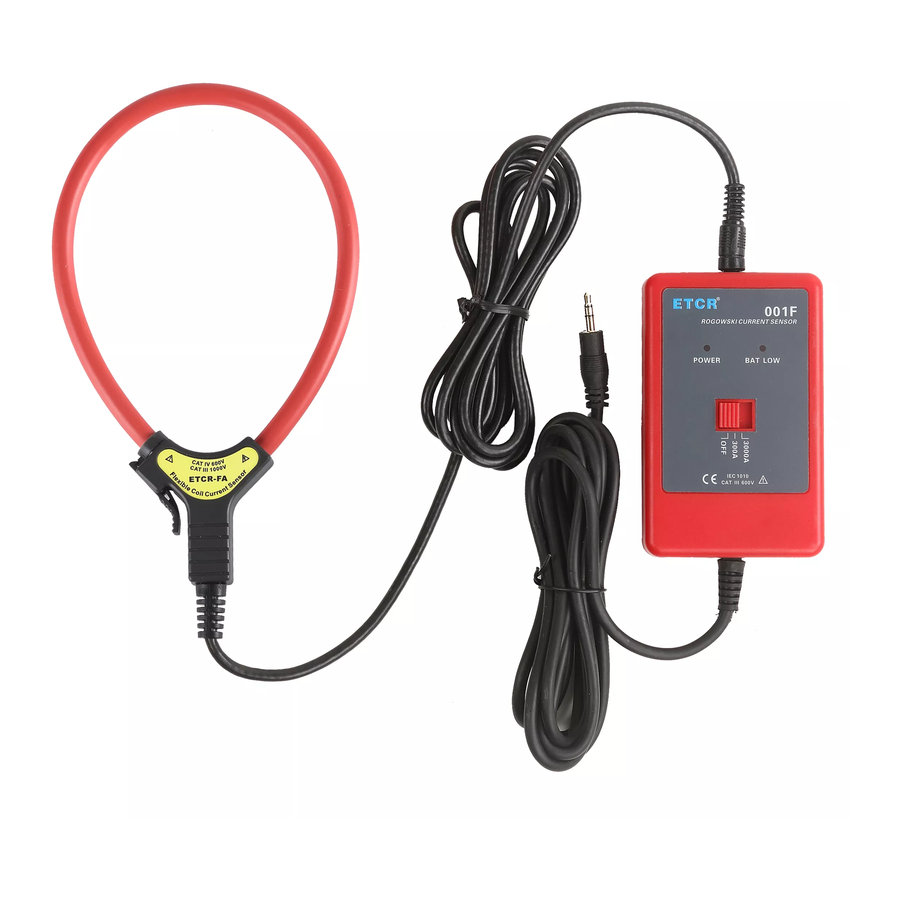

Ⅰ Introduction ETCR001F Flexible coil current sensor (Integrator), Rockwell coil Current Sensor, using advanced Roche technology, is a non-ferromagnetic material in the uniform winding of the coil, no hysteresis effect, almost zero phase error, non-magnetic saturation phenomenon, high linearity. The flexible coil is the derivative of the current to time. -
Page 5: Ⅱ Electrical Symbol
welding and other serious signal distortion of the industrial environment. Ⅱ Electrical symbol Extremely dangerous! Operators shall strictly observe safety rules; otherwise there would be dangers of electric shock to cause personal injuries or casualties. Dangerous! Operators shall strictly observe safety rules; otherwise there would be dangers of electric shock to cause personal injuries or casualties. -
Page 6: Ⅳ Technical Specifications
Ⅳ Technical specifications AC current, high harmonic current, complex waveform current, transient inrush current, Function starting current, phase, power, power, power factor detection φ7.5mm(Suitable for narrow environments Coil thickness and cable-intensive places) 6F22 9VDC Zinc-manganese dry batteries power supply (external power supply) 315mm /650mm/1000mm(Optional) Coil length φ100mm /φ200mm/φ300mm(Optional) - Page 7 Working -20℃~50℃; Below 80%rh temperature and humidity Storage -10℃~60℃; Below 70%rh temperature and humidity AC 2000V/rms( both end of the unlocked coil) Insulation IEC1010-1, IEC1010-2-032, Pollution degree Safety 2, CAT Ⅲ 600V regulations...
-
Page 8: Ⅴ Structure
Ⅴ Structure 1. Integrator signal output 2. Integrator signal ground (shorted shielded) 3. Shielded ground 4. The integrator signal outputs (audio plug) 5. Integrator power indicator 6. Integrator battery voltage low indicator light 7. Power / gear switch 8. Integrator 9. -
Page 9: Ⅵ Operating Method
Ⅵ Operating Method Before use, carefully check whether all parts of the sensor are damaged, there is no damage to use Install the battery by manual 1. Plug connection Put the Audio plug insert to the integrator’s input jack. 2. Switch Power / gear switch to the right to start the boot, turn off at OFF, after the boot device power indicator light 3. -
Page 10: Ⅷ Packing List
the battery with a new pass, pay special attention to the battery specifications polarity, cover the battery cover, tighten the two screws. 3. Dial the key to the middle or right to check whether the instrument can boot normally, if not boot, please press the second step to re-operation. - Page 12 Manufactured by ETCR Electronic Technology Company Address: F-3F, No.4 Pengshang Zhifu Road, Jiahe, Baiyun District, Guangzhou, Guangdong, China Post Code: 510440 Tel: (86-20)62199556 Fax: (86-20)61100822 E-mail: info@etcr.cc Website: www.etcr.cc...
