Summary of Contents for Sunbeam F1

  • Page 1 User Manual for the Sunbeam F1...

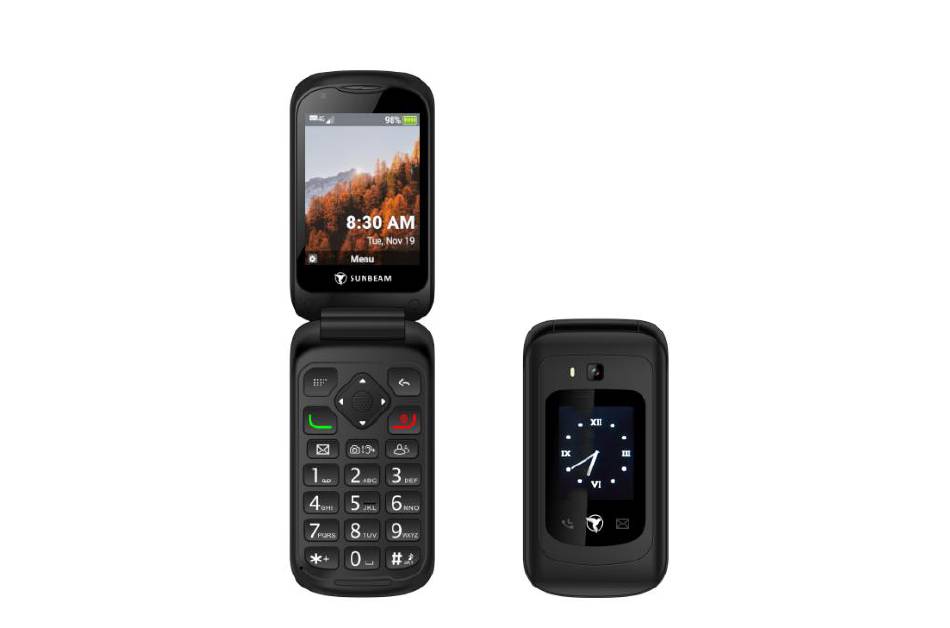

  • Page 3 Instructions of button and telephone appearance 1. Earpiece 2. Front-facing camera 3. Up arrow key 4. Left-section key 5. Call key 6. Messaging 7. Camera/Amplification key 8. Voice mail 9. Right-section key/Back key 10. + Volume key/Flashlight key 11. End call key/Power on/Power off 12.
  • Page 4 Instructions of main menu: Tools Contacts Message Call logs Voice Settings Alarm memos...

  • Page 5: Table Of Contents

    Contents Installation ........................6 Installing the SIM card ....................6 Installing the battery ......................8 Messages ......................... 9 Call logs .......................... 9 Contacts ........................10 Camera ........................... 11 Gallery..........................12 Alarm ..........................12 Voice memos ......................... 12 Multimedia ........................14 Recorder .........................
  • Page 6 Note ........................... 18 CMAS Alerts ........................18 Settings ........................18 Airplane mode ......................18 WLAN........................19 Mobile data ....................... 19 Bluetooth ........................19 Flip answers ......................20 Talking keys ......................20 Tone and volume ....................... 20 Common functions ....................21 Call settings .......................

  • Page 7: Installation

    Special functions ...................... 22 Low battery notifications ..................22 Amplify receiver volume ..................22 BasicOS system ......................23 Safety Information ....................... 25 Installation IMPORTANT Turn off the phone and disconnect the charger before removing the battery cover. Installing the SIM card 1.

  • Page 9: Installing The Battery

    Installing the battery For first time use, please deplete the battery and charge for 4 hours to achieve a full charge. Remove the battery cover, insert the battery into the battery compartment, and replace the battery cover.

  • Page 10: Messages

    Messages 1. Press New to establish New message; Scroll or touch this icon to choose the Recipient from Contacts or you can input the contact number directly. 2. Input your message then press Send to send out the message. 3. Press Back to cancel the previous steps. 4.

  • Page 11: Contacts

    2.3 Add contact: You can save the contacts To Phone or To SIM. 2.4 Add to blacklist/Remove from blacklist: You can add or remove the contacts to the blacklist. 2.5 Delete: You can delete all received, missed, or dialed calls in Call logs. Contacts Options 1.

  • Page 12: Camera

    4. Blacklist management You can set the contacts to blacklist to filter out related calls and text messages. 5. When there are saved contacts, you can View, Send SMS, Edit, Delete, Copy to SIM card from Options. Camera (except Dandelion model) 1.

  • Page 13: Gallery

    Notes: (1) Press * to check preview image; (2) Press # to switch the Rear camera or Front camera; (3) Press left or right navigation key to switch take photo or take video; (4) Press up or down navigation key to zoom in or zoom out the focus. Gallery (except Dandelion model) All pictures, video, and photos will be displayed here.
  • Page 14 you to add new tasks and edit/delete existing tasks. If you add a new task or edit an existing task, enter Subject，Remind sound, Due date, Due time, Repeat, Sound loop (default:10 times) and Remind interval (default: 5 mins). You can use Remind sound to record what you want to be reminded instead of traditional input tasks.

  • Page 15: Multimedia

    Multimedia (except Dandelion model) 1. Recorder Press to record the voice, press to stop the recording, press to pause the recording, press to play the recording, press to save the recording file, press to cancel the recording, press to open the recording file list. 2.
  • Page 16 1. Make sure SOS has been Enabled to work. 2. Scroll to Emergency contacts to setup SOS numbers. Here you can enter 5 numbers. 3. Scroll to Warning Tone to control warning tone status On or Off. 4. Scroll to Send message to choose whether to send SOS SMS or not. 5.

  • Page 17: Tools

    precise positioning. If there’s no pre-stored Wi-Fi connection, the phone turns on the mobile data. After the SOS function is aborted, the phone will automatically turn off mobile data and/or Wi-Fi connection. 3) The SOS function always requests the network (mobile and/or Wi-Fi) to have the positioning, and sends out the message of the Maps link.

  • Page 18: Calculator

    B. Enter a Start Date and End Date for the event. C. Enter the Start Time and End time for the event. D. Enter the Event Reminder for the event. E. Enter Location for the event. F. Write the Notes for the event. G.

  • Page 19: Note

    2) Input numbers. to select ＋,－,=,× ,÷ . 3) Use arrow key 4) Then press OK key. The calculation result is shown on the screen. 5) You can press * to choose decimal point. 6) You can press # to delete or clean the result. 3.

  • Page 20: Wlan

    connectivity features, such as phone calls and mobile data. 2. WLAN (except Dandelion model) Power On/Off: Touch or select OK key On/Off to enable or disable WLAN. Remarks: 1) When WLAN is turned on, your device will automatically scan for available networks and display them.

  • Page 21: Flip Answers

    Note: Pairing between two Bluetooth devices is a one-time process. Once a pairing is created, the devices will continue to recognize their partnership and exchange information without having to re-enter a pairing code. 5. Flip answer Power On/Off: Touch or select OK key On/Off to enable or disable Flip answer. Note: When Flip answer is turned on, you can automatically answer the call when you open the phone cover.

  • Page 22: Common Functions

    3) Tab Phone ringtone to select ringtone type from the phone. 4) Tab Advanced for more steps, for example, open or close the Touch sounds. 8. Common functions 1) Call settings: You can set Calling accounts, Voicemail, Fixed Dialing Numbers, Call forwarding, Call barring, Additional settings.

  • Page 23: Special Functions

    There are two clock styles (Analog or Digital) here. You can choose your preferred style that you would like shown on the front display. 9. Special functions 1) Low battery notifications Status: On/Off Notified contacts: 3 numbers Notification SMS When battery capacity is lower than 10%, the phone will automatically send a message to 3 preset Notified contacts to remind them to ask the user to charge the phone soon.

  • Page 24: Basicos System

     This mobile telephone has a loud ringer. Also, there is an amplifier function to increase the volume an extra 25dB volume with the amplified key. This is a useful feature to make a highly suitable telephone for users with hearing impairments without requiring extra hearing aid devices or for those in noisy surroundings.
  • Page 25 4) Battery Check battery status here. 5) Display Check Page 28. 6) Sound Check Tones and volume (Page 27). 7) Storage Check Device storage here. 8) Security & locations Secure your device and protect your data with Lock Screen and Security settings ...

  • Page 26: Safety Information

    9) Users & accounts You can check add account, Emergency information, etc, here. 10) System You can set Languages & input, Date & time, Backup, Reset options, About phone here.  Reset options: You can check DRM reset, Reset Wi-Fi, mobile & Bluetooth, Reset app preferences, Erase all data (factory reset) here.
  • Page 27 manufacturer before using a hearing aid with this product. Also make sure you position the phone near the hearing device when using the phone, so that it can achieve the best results.  Please be careful when you are near chemical plants, gas stations, tank farms and other such places.
  • Page 28  Accessories and battery: please use the dedicated accessory and battery from Sunbeam Wireless. If not, it could destroy the phone and become dangerous. Please do not short-circuit, dismantle or adapt the battery. If the phone has excessive temperature, discoloration, variation, bulging, seeping or other unusual symptoms, please stop using it and change the battery immediately so as to not affect your safety.
  • Page 29 FCC Statement 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 30 guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
  • Page 31 W/kg averaged over one gram of tissue. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset.
  • Page 32 The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is 0.447 W/kg and when worn on the body, as described in this user guide, is 1.123W/kg (Body-worn measurements differ among phone models, depending upon available enhancements and FCC requirements).
  • Page 33 IC STATEMENT This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: This device may not cause interference; and This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
  • Page 34 safety of all persons regardless of age or health. IC RF Exposure Information and Statement The SAR limit of USA (IC) is 1.6 W/kg averaged over one gram of tissue. This device was tested for typical body-worn operations with the back of the handset kept 10mm for body worn. To maintain compliance with IC RF exposure requirements, use accessories that maintain a 10mm for body worn.
