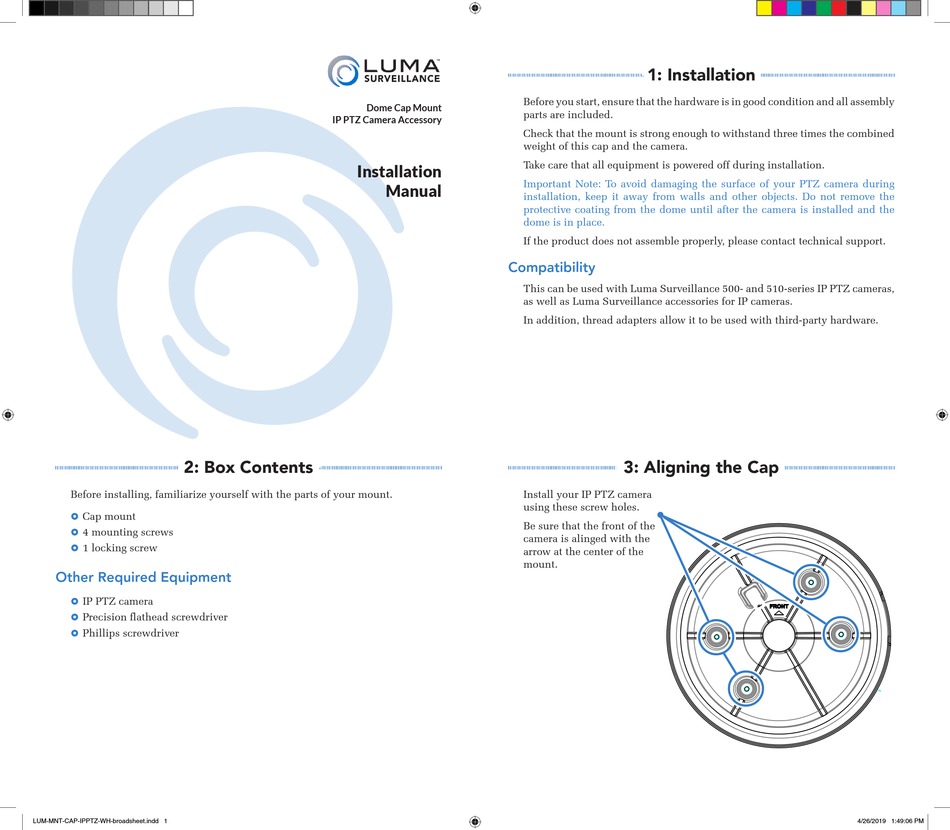

Luma Surveillance LUM-MNT-CAP-IPPTZ-WH Installation Manual

2: Box Contents
Before installing, familiarize yourself with the parts of your mount.
Cap mount
}
4 mounting screws
}
1 locking screw
}
Other Required Equipment
IP PTZ camera
}
Precision flathead screwdriver
}
Phillips screwdriver
}
LUM-MNT-CAP-IPPTZ-WH-broadsheet.indd 1
Dome Cap Mount
IP PTZ Camera Accessory
Installation
Manual
Compatibility
1: Installation
Before you start, ensure that the hardware is in good condition and all assembly
parts are included.
Check that the mount is strong enough to withstand three times the combined
weight of this cap and the camera.
Take care that all equipment is powered off during installation.
Important Note: To avoid damaging the surface of your PTZ camera during
installation, keep it away from walls and other objects. Do not remove the
protective coating from the dome until after the camera is installed and the
dome is in place.
If the product does not assemble properly, please contact technical support.
This can be used with Luma Surveillance 500- and 510-series IP PTZ cameras,
as well as Luma Surveillance accessories for IP cameras.
In addition, thread adapters allow it to be used with third-party hardware.
3: Aligning the Cap
Install your IP PTZ camera
using these screw holes.
Be sure that the front of the
camera is alinged with the
arrow at the center of the
mount.
