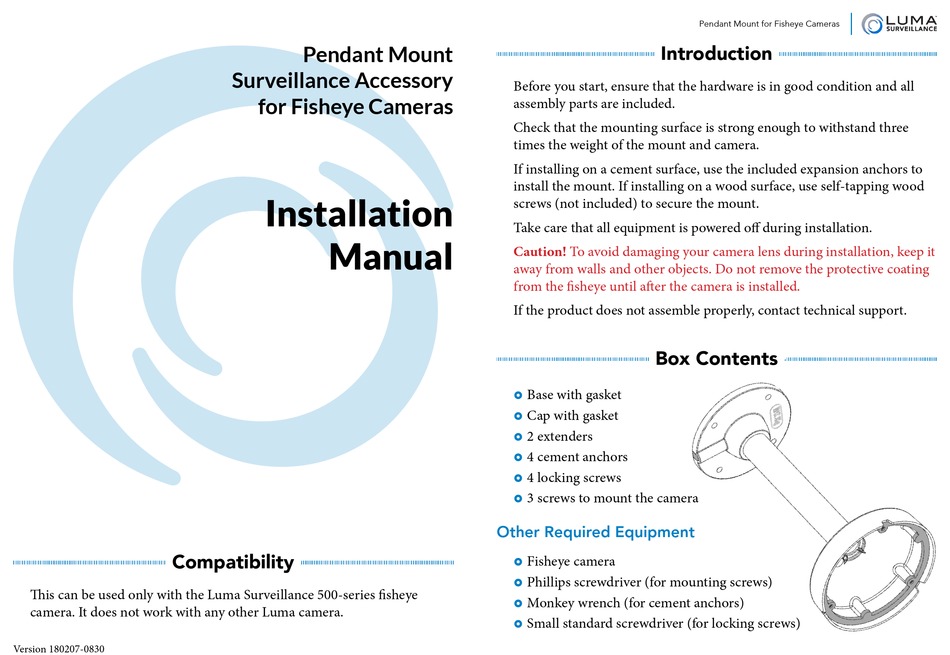

Luma Surveillance LUM-MNT-PND-FISH Installation Manual

Compatibility

This can be used only with the Luma Surveillance 500-series fisheye
camera. It does not work with any other Luma camera.
Version 180207-0830
Pendant Mount
Surveillance Accessory
for Fisheye Cameras
Installation
Manual

Introduction

Before you start, ensure that the hardware is in good condition and all
assembly parts are included.
Check that the mounting surface is strong enough to withstand three
times the weight of the mount and camera.
If installing on a cement surface, use the included expansion anchors to
install the mount. If installing on a wood surface, use self-tapping wood
screws (not included) to secure the mount.
Take care that all equipment is powered off during installation.
Caution! To avoid damaging your camera lens during installation, keep it
away from walls and other objects. Do not remove the protective coating
from the fisheye until after the camera is installed.
If the product does not assemble properly, contact technical support.

Box Contents

Base with gasket
}
Cap with gasket
}
2 extenders
}
4 cement anchors
}
4 locking screws
}
3 screws to mount the camera
}

Other Required Equipment

Fisheye camera
}
Phillips screwdriver (for mounting screws)
}
Monkey wrench (for cement anchors)
}
Small standard screwdriver (for locking screws)
}
