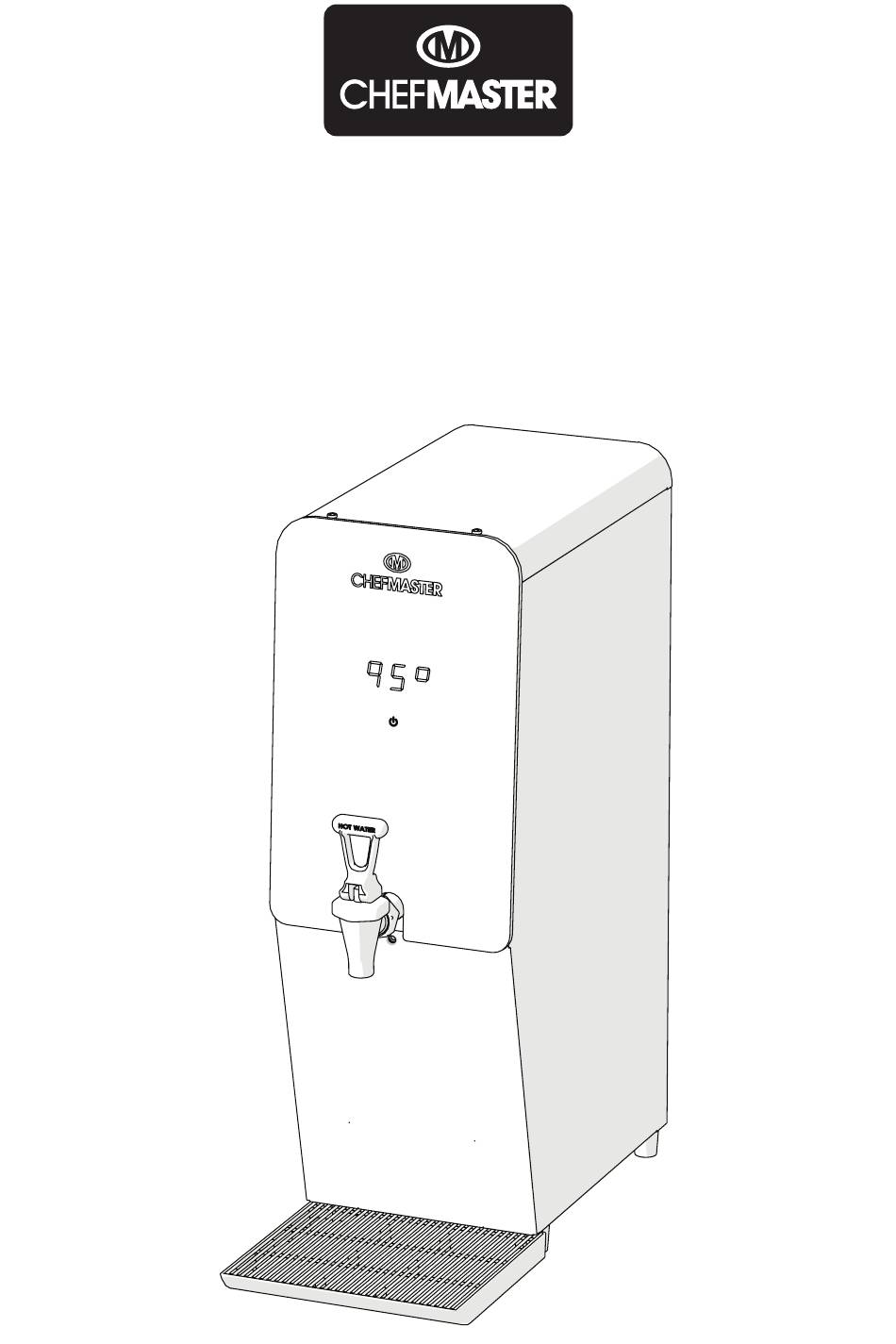

  • Page 1 HEF605 Water Boiler Instruction Manual...
  • Page 2: Table Of Contents

    Contents 1. Information........................3 1 Introduction......................3 2 Safety.........................3 3 Electrical Installation Procedure................4 4 Plumbing Installation Procedure................4 5 Backflow Prevention....................4 6 Maintenance.......................4 7 Descale Procedure....................4 8 Limescale......................4 9 Disposal......................5 10 Compliance......................5 11 Operating the Boiler for the First Time..............5 2. Installation........................6 3.
  • Page 3: Information

    Information Introduction The information provided in this manual is intended to assist in the installation and maintenance of the MT range of hot water boilers. Please read the instructions carefully to prevent accidents and ensure an efficient installation. This manual is not a substitute for any safety instructions or technical data affixed to the machine or its packaging.
  • Page 4: Electrical Installation Procedure

    Information Electrical Installation Procedure Electrical specification: 2.8kW 200-230Vac 50Hz When installing the machine, always observe the local regulations and standards. The ap- pliance is supplied with a moulded power cord. A suitable mains power supply socket should be available within easy access of the appliance so that it can be disconnected easily after install.
  • Page 5: Disposal

    Chefmaster distributor or local authority responsible for waste disposal. Compliance All Chefmaster parts and products have undergone a stringent testing process to ensure that comply with all European standards and specifications. All Chefmaster products carry the CE approval symbol.
  • Page 6: Installation

    Installation ¼” tube (6.35mm) Software revision. Revision can change in future.
  • Page 7: Installing Filter

    Installing Filter 8000781 The orientation indicator on the filter should point left before rotating...
  • Page 8: Operating Boiler

    Operating Boiler Tank Filling; water under low level probe Diagram of Parts Screen Standby Button Drip Tray Tank filling...
  • Page 9: Service Set Up

    Service Set Up Changing Temperature 5 sec Add one degree Range 60 - 97°C 5 sec To save value...
  • Page 10: Filter Mode

    Service Set Up Filter Mode Add 2 units. Each unit is 200L. Setting to “00” 10 sec disables the flag. The machine estimates how much water goes through the system & triggers a filter flag if a filter change is required.
  • Page 11: Changing From C/F

    Service Setup Changing from Celcius to Farenheit 15 sec Switch between 5 sec 203 = 203F...
  • Page 12: Heat Fill Selection

    Service Set Up Heat Fill Selection Switch between: H-F (Heat Fill) 20 sec C-F (Continuous Fill) Heat Fill (default & recommended setting) The inlet valve lets in a small fixed volume of water and the element turns on heating the water to the set tempera- 5 sec ture.
  • Page 13: Cleaning & Maintenance

    Cleaning & Maintenance Cleaning max temp 65°C...
  • Page 14: Troubleshooting

    Troubleshooting The screen of the boiler indicates various errors or problems with the machine. See diag- nostic table below for futher details. Error Description Action High level probe is detected but low level Descale machine & low-level probe. probe is not detected. If it persists, call service agent.
