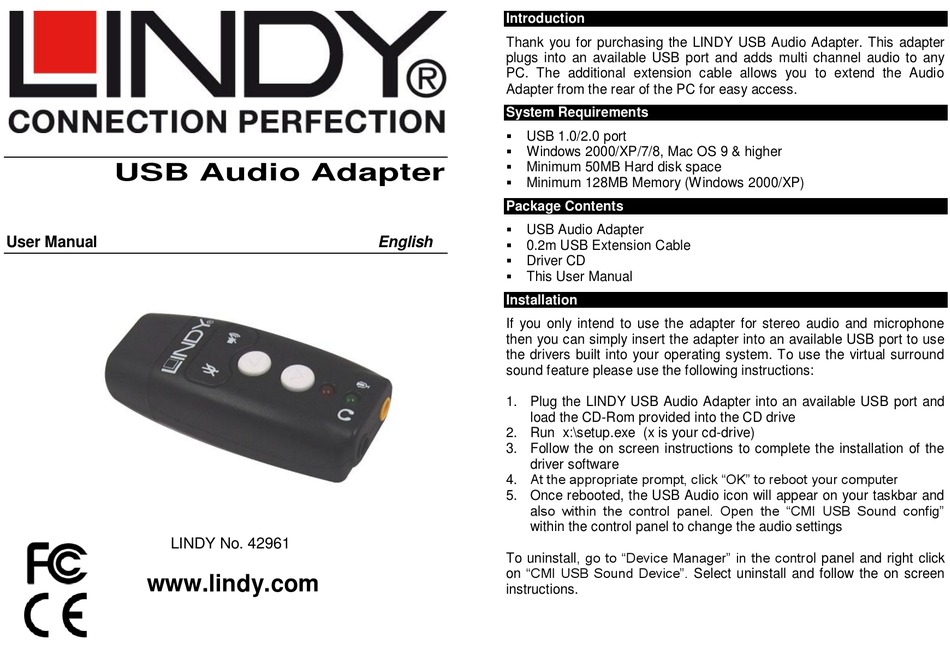

Lindy 42961 User Manual

USB Audio Adapter
User Manual
LINDY No. 42961
www.lindy.com

Introduction

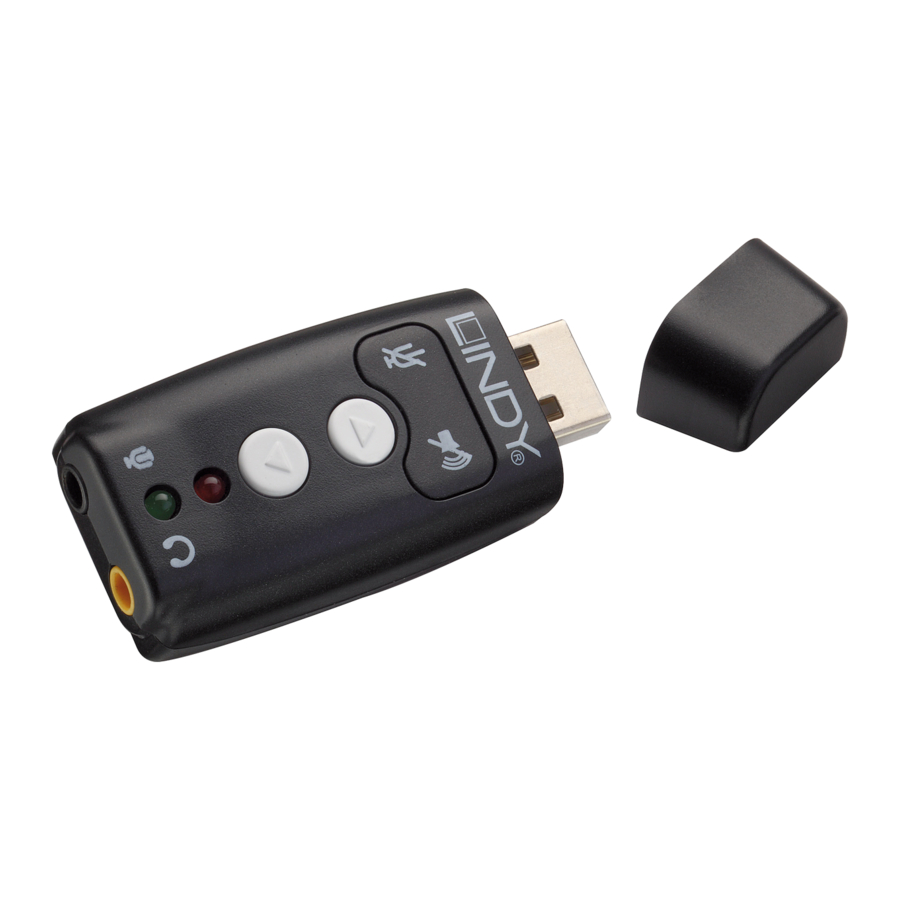

Thank you for purchasing the LINDY USB Audio Adapter. This adapter
plugs into an available USB port and adds multi channel audio to any
PC. The additional extension cable allows you to extend the Audio
Adapter from the rear of the PC for easy access.

System Requirements


USB 1.0/2.0 port

Windows 2000/XP/7/8, Mac OS 9 & higher

Minimum 50MB Hard disk space

Minimum 128MB Memory (Windows 2000/XP)

Package Contents


USB Audio Adapter
English

0.2m USB Extension Cable

Driver CD

This User Manual

Installation

If you only intend to use the adapter for stereo audio and microphone
then you can simply insert the adapter into an available USB port to use
the drivers built into your operating system. To use the virtual surround
sound feature please use the following instructions:
1. Plug the LINDY USB Audio Adapter into an available USB port and
load the CD-Rom provided into the CD drive
2. Run x:\setup.exe (x is your cd-drive)
3. Follow the on screen instructions to complete the installation of the
driver software
4. At the appropriate prompt, click "OK" to reboot your computer
5. Once rebooted, the USB Audio icon will appear on your taskbar and
also within the control panel. Open the "CMI USB Sound config"
within the control panel to change the audio settings
To uninstall, go to "Device Manager" in the control panel and right click
on "CMI USB Sound Device". Select uninstall and follow the on screen
instructions.
