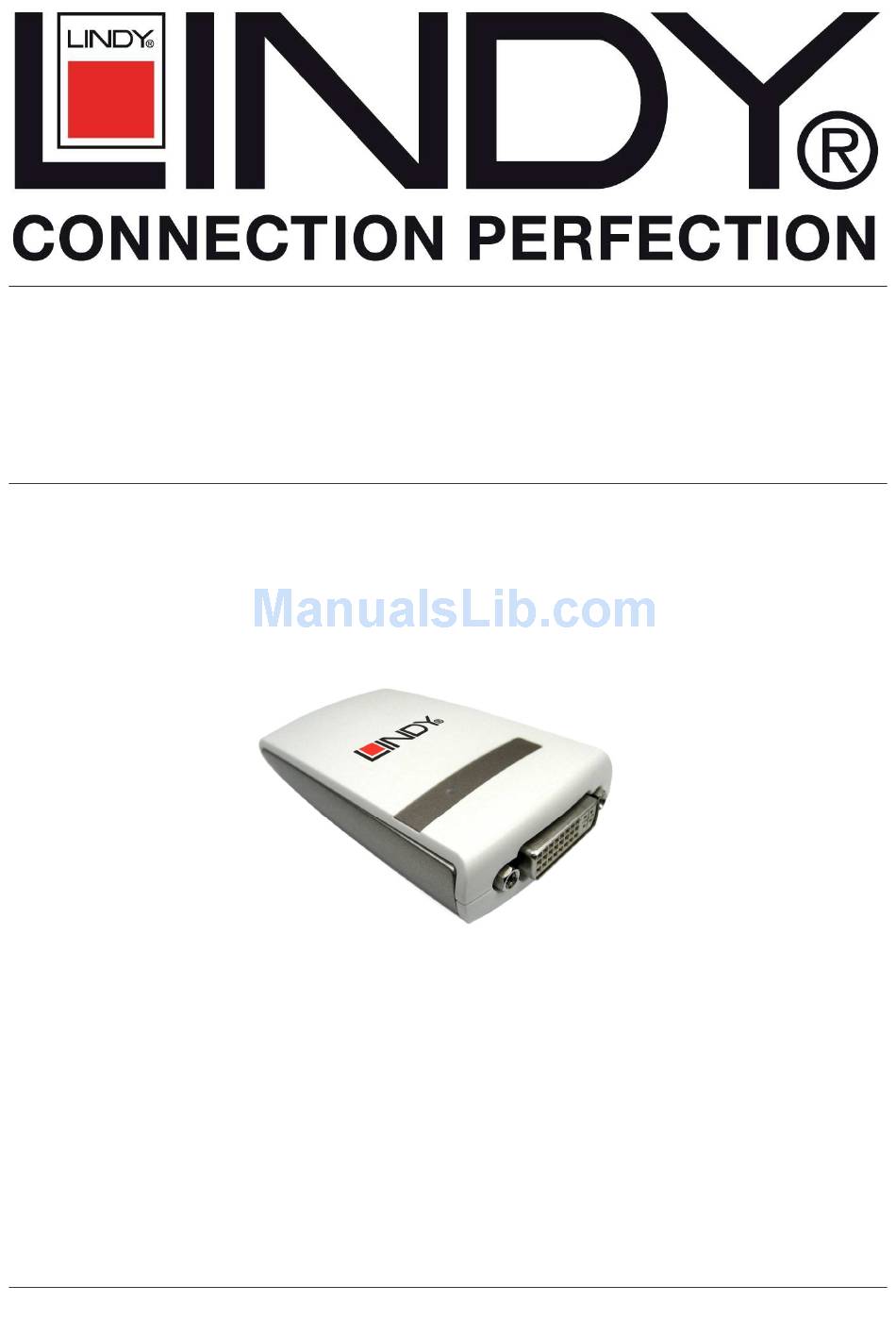

- Page 1 USB 2.0 to DVI Adapter Classic User Manual English LINDY No. 42798 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (June 2009)
- Page 2 User Manual English...
-
Page 3: System Requirements
Windows 2000 SP4 / Windows XP SP2 / Windows Vista Package Contents • USB 2.0 to DVI Adapter • Driver CD • LINDY Manual Features • USB 2.0 compliant • supports display resolution up to DVI : 1680 x 1050 •... -
Page 4: Installation
User Manual English Refresh Rate USB-DVI Resolution Frequency 800 * 600 16bit, 32bit 60Hz,75Hz 1024 *768 16bit, 32bit 60Hz,75Hz 1152 * 864 16bit, 32bit 60Hz 1280 * 720 16bit, 32bit 60Hz 1280 * 768 16bit, 32bit 60Hz 1280 * 800 16bit, 32bit 60Hz 1280* 960... - Page 5 User Manual English Step 2 Driver Installation Wizard, click “Next” to continue. Step 3 License Agreement; please read it and select “I accept the terms of the license agreement.” Click “Next” to accept the License Agreement. Step 4 The Microsoft Software Installation Certificate warning dialogue box, please select “Continue Anyway”...
- Page 6 User Manual English Step 5 Please select “Yes, I want to restart my computer now”. Then, click “Finish” to complete the software installation. Step 6 (After System Reboot) Please connect the external display device (monitor/projector) to the DVI connector of USB DVI Adapter and switch it on. Then plug the USB DVI Adapter into an available USB 2.0 port of your PC or Notebook.
- Page 7 User Manual English Step 8 Please select “Install the software automatically (Recommended)”. And click ”Next” to continue. Step 9 The Microsoft Software Installation Certificate warning dialogue box, please select “Continue Anyway” to continue with the hardware installation. This will not affect the device driver installation and the device usage.
- Page 8 User Manual English Step 11 Installation of multiple USB DVI Adapters Please plug the additional USB DVI Adapter into an available USB 2.0 port of your PC or Notebook. a. A Hardware Installation Wizard dialog will show up, please select “No, not this time”...
- Page 9 User Manual English To make sure the USB DVI Adapter works correctly, please reboot the computer after the installation. After rebooting the computer, the USB extended display will be shown on the display device. Verifying the device driver installation The following procedure allows you to verify the device driver installation. Please right click “My Computer”...
- Page 10 User Manual English Multiple USB DVI Adapters installation on the computer...
- Page 11 User Manual English Device Driver Un-Installation Step 1. Start menu: Click “Start” “ “Control Panel” “Add or Remove Programs” Select “ USB Display Device (Trigger 1+) 9.xx.xxxx.0159” (driver ver.). Click “Remove” button. Step 2. Unplug the USB DVI and click “OK” DAPTER to continue.
- Page 12 User Manual English Windows Vista Installing the device driver enables your computer’s operating system to recognize the adapter once it’s connected. Please check your operating system and refer to the appropriate installation procedure to begin installing the device driver. Please make sure the USB DVI Adapter is unplugged from your PC or Notebook before executing the setup program.
- Page 13 User Manual English Step 5 Setup is searching for installed features. Step 6 Please select “Yes, I want to restart my computer now”. Then, click “Finish” to complete the software installation. Step 7 (After System Reboot) Please connect the external display device (monitor/projector) to the DVI connector of the USB DVI Adapter and switch it on.
- Page 14 User Manual English Step 9 Installation of multiple USB VGA Adapters Please plug the additional USB DVI Adapters into another available USB 2.0 port of your PC or Notebook. The setup process will begin automatically. You may see below notification balloons for each additional adapter.
- Page 15 User Manual English Single USB DVI Adapter installation on the computer...
- Page 16 User Manual English Multiple USB DVI Adapters installation on the computer...
- Page 17 User Manual English Device Driver Un-Installation Step 1 Access Program Uninstall: Click “Start” “Control Panel” Under “Programs”, click “Uninstall a program” Look for “ USB Display Device (Trigger 1+) 9.xx.xxxx.0159” (driver ver.) Click “Uninstall” button. Step 2 Unplug the USB DVI Adapter and click “OK”...
- Page 18 User Manual English Function Description This section describes several friendly functions provided by the USB DVI Adapter. A display device described in this section means devices such as CRT, LCD monitor, TV display, projector. Access USB DVI Adapter Utility Make sure the USB DVI Adapter is attached to the PC. Look for this on your Windows Start bar.
- Page 19 User Manual English ISPLAY OTATION 4 options available: 0°, 90° , 180° , 270° under the Extended or Primary display modes. It is a useful function for some rotatable display devices. ISPLAY ODES “E ” XTENDED DISPLAY MODE EFAULT The default display mode; this feature allows the attached USB display device to work as an “Extended”...
- Page 20 User Manual English “P ” RIMARY DISPLAY MODE A feature to allow the USB display device to act as the main working display. The USB DVI Adapter will work as the main graphics adapter of the computer. The screen connected to the on-board graphics card will then work as the extended display.
- Page 21 User Manual English ULTI ISPLAY ONTROL ANEL A feature to allow a much quicker and simpler working experience in a multi- display environment. A series of hotkeys to quickly change active window or cursor to the desired display device (either on-board graphics or each USB Display enabled devices).
-
Page 22: Frequently Asked Questions (Faq)
User Manual English Frequently Asked Questions (FAQ) Q: Why can’t I make the USB D the primary display? ISPLAY DAPTER A: Some video cards ship their product with a utility that prevent other video cards from being set as the primary card. Check the bottom right hand corner taskbar for the utility. - Page 23 User Manual English - Direct 3D is not supported under XP. It would be supported under Vista Aero mode. General Recommendation - Check to make sure that the device is plugged in correctly to the host system. Make sure that the USB port that you are using is USB 2.0. Unplug the USB cable of USB graphics device and re-insert it.
- Page 24 User Manual English license free software. VLC Media Player: http://www.videolan.org/vlc/ http://sourceforge.net/projects/guliverkli/ Media Player Classic: Others - Some graphics card, i.e. Intel, prevents other secondary graphics chipset from being set as the primary card. As the result of this, primary mode might not work or the display maybe disabled.
- Page 25 WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si dispone di un apparecchio elettrico o elettronico. Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato. LINDY No. 42798 Edition June 2009 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (June 2009)
