Installation Instructions
1. UNPACK AIR CONDITIONER
WARNING
Excessive Weight Hazard
• Use two or more people to move and install
air conditioner.
• Failure to do so can result in back or other
injury.
NOTE: Before using the air conditioner, keep it
upright for at least 2 hours.
• Remove packaging materials. Save the carton and
the foam packaging for storing the air conditioner
when not in use.
NOTE: There are NO packing materials inside the air
conditioner to remove—Do Not open the cabinet.
• Properly dispose of/recycle all packing material.
• Handle the air conditioner gently.
• Keep the air conditioner upright and level. Do not set
the air conditioner on its side, front, back or upside
down.

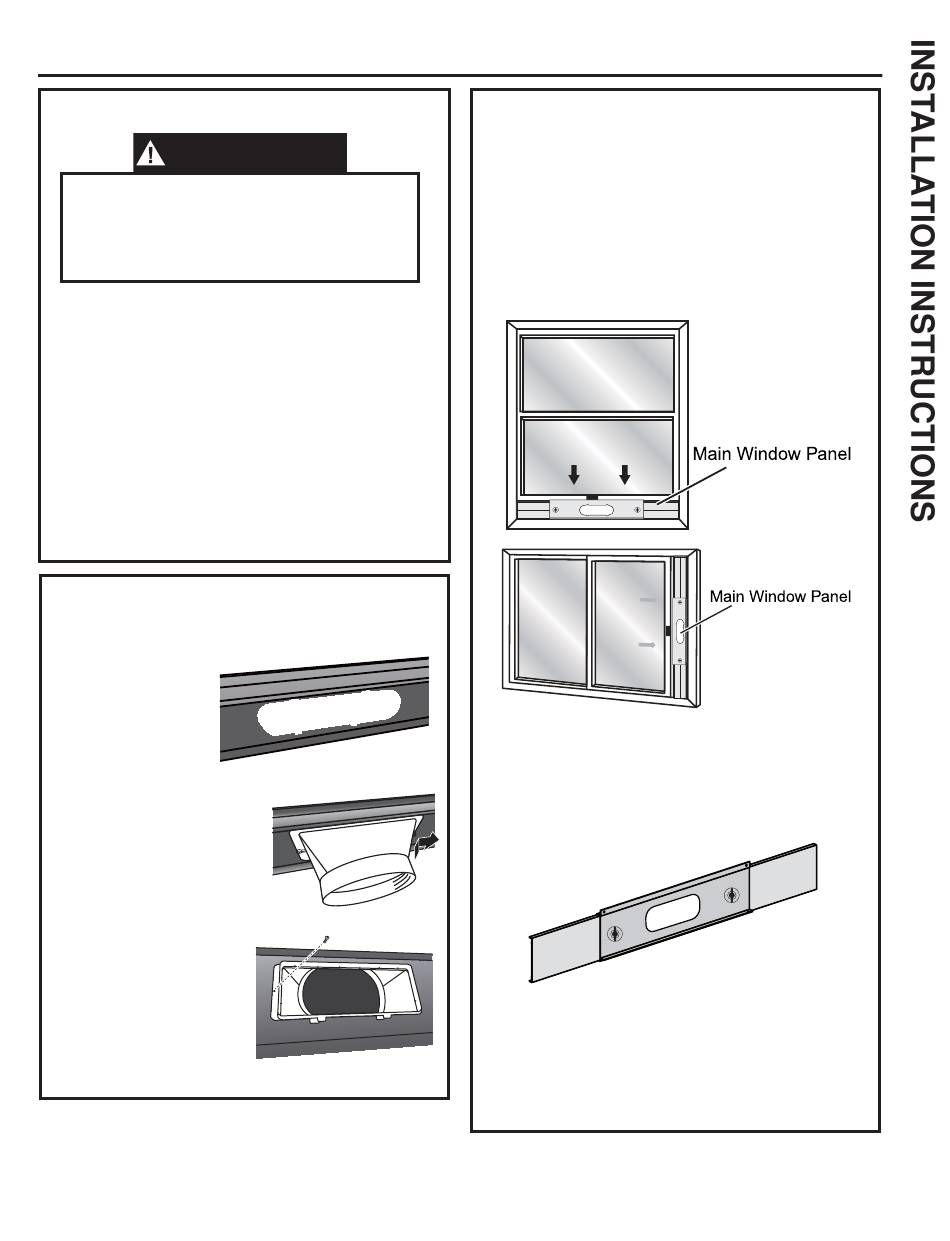

Install Exhaust Nozzle to Main
2.
Window Panel
1. Hold the main
window panel so
that the L-shaped
edges of the
panel are facing
you.
2. Align the exhaust
nozzle with the slots in
the opening, and then
insert and slide the
nozzle to access the
hole from the back of
the main window panel.
3. Turn the main window
panel over, so that
the nozzle is away
from you. Insert a
flat tip screw through
the hole to fasten the
window panel to the
adapter.
49-5000526 Rev. 1
Install Main Window Panel and
3.
Extension Panels
NOTE: Measure the window opening and use the
extension panels as referenced on page 10 to fit your
window.
1. Open the window and place the window kit
assembly into the window.
NOTE: The window assembly is designed to
accommodate either a double hung or sliding
window.
2. Adjust the extension panel(s) to the width or height
of the window as shown.
3. Depending on the number of extension panels
used, turn the knobs to secure the extension
panel(s) to the main panel. Install from the back.
NOTE: There are many window types on the market
today. Use the foam strips and brackets (provided) to
secure the extension panels that will fit the window
opening.
Double Hung Window
Sliding Window
