Black Box Corporation
www.blackbox.com e-mail: info@blackbox.com

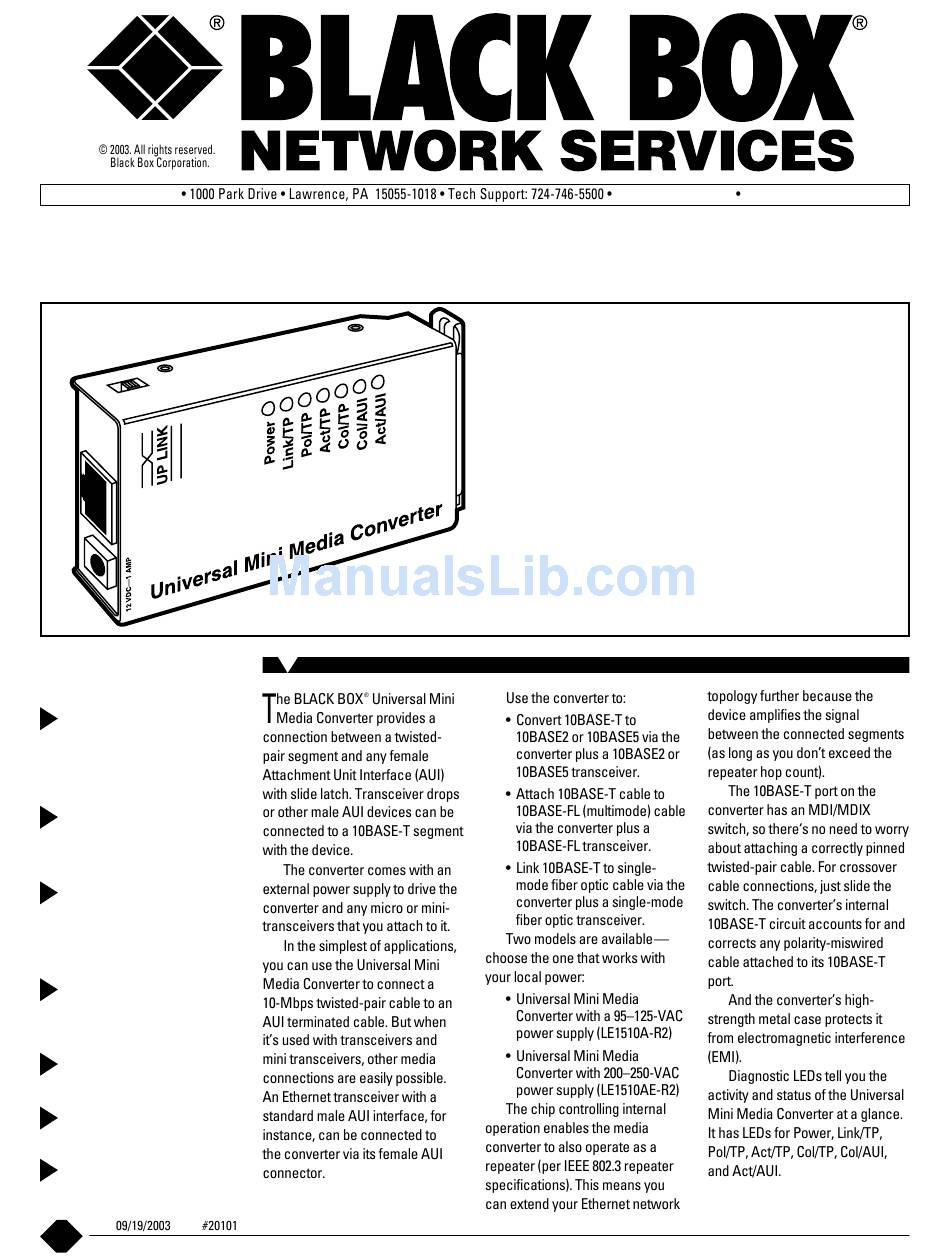

UNIVERSAL MINI MEDIA CONVERTER
Attach any twisted-pair segment
to any female AUI connector
with slide latch.
Key Features
Attaches to any
Ethernet transceiver
with a standard AUI
male connector.
Handy slide latch
secures the
connection.
Metal packaging
shields against
electromagnetic
interference (EMI).
Slide the MDI/MDIX
switch to match
10BASE-T pinning.
Includes external
power supply.
Diagnostic LEDs report
activity and status.
Also functions as an
IEEE 802.3 repeater.
1
Advertisement
Table of Contents
Related Manuals for Black Box LE1510A-R2
Summary of Contents for Black Box LE1510A-R2
- Page 1 Black Box Corporation www.blackbox.com e-mail: info@blackbox.com UNIVERSAL MINI MEDIA CONVERTER Attach any twisted-pair segment to any female AUI connector with slide latch. Key Features Attaches to any Ethernet transceiver with a standard AUI male connector. Handy slide latch secures the connection.
-
Page 2: Ordering Information
How to link twisted-pair cable to fiber optic cable. Universal Mini Media Converter Specifications Approvals: Temperature Tolerance: Speed: Standards: Humidity Tolerance: Transmission Method: MTBF: Connectors: Enclosure: Indicators: Power: Size: Weight: Ordering Information ITEM Need a transceiver for fiber connections? Here’s a good choice…...
