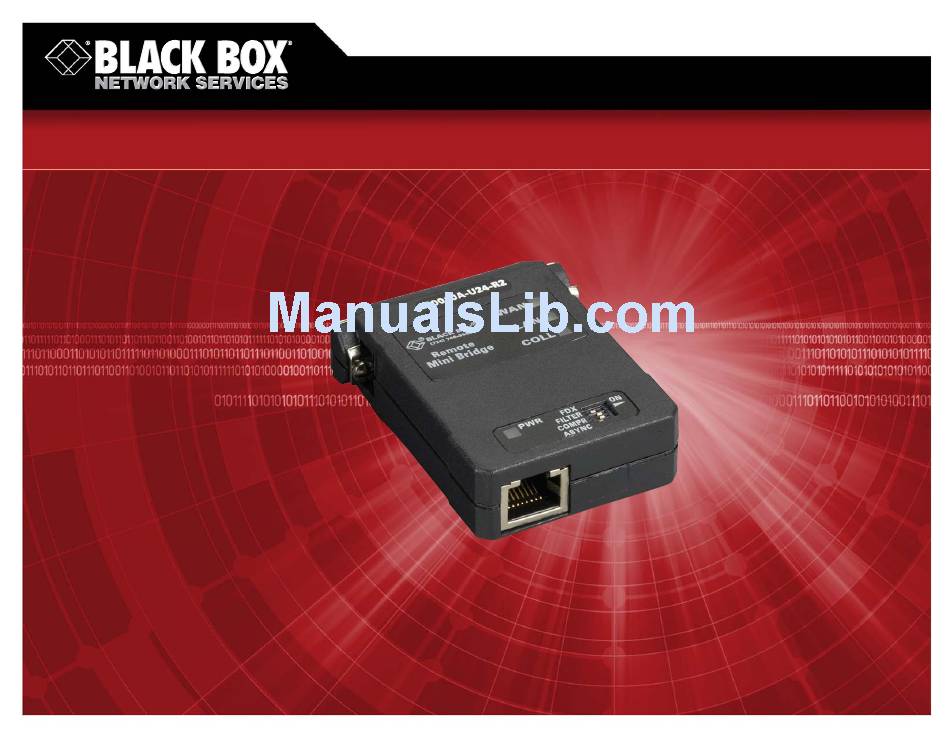

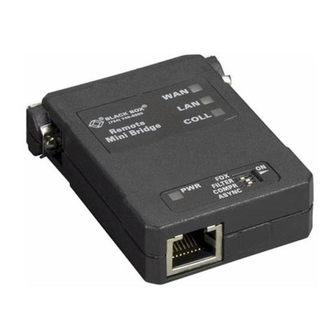

- Page 1 FREE 24-hour Tech Support: 724-746-5500 blackbox.com © 2007. All rights reserved. Black Box Corporation. Remote MiniBridge Bridge network traffic in legacy 10BASE-T networks. Bridge network traffic in legacy 10BASE-T networks.
- Page 2 FEATURES • Pairs of compact units bridge Ethernet LANs. • Data rates to 20 Mbps on LAN side, 10 Mbps sync or 115.2 kbps async on WAN side. • Filters and forwards nearly 15,000 packets per second, and automatically updates its table of as many as 10,000 MAC addresses.
- Page 3 Throughput Delay — 1 frame User Control — (1) Top-mounted 4-position DIP switch for full vs. half-duplex; filtering; compression; sync/async Interfaces — LAN: 10BASE-T; WAN: LB0010A-U24-R2: TIA RS-232/ITU-TSS V.24/V.28, DTE; LB0010A-U35-R2: ITU-TSS V.35; LB0010A-U36-R2: TIA RS-422/ITU-TSS V.36; LB0010A-U53-R2: TIA RS-530;...
