Grill'D Step-Grill Installation And Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

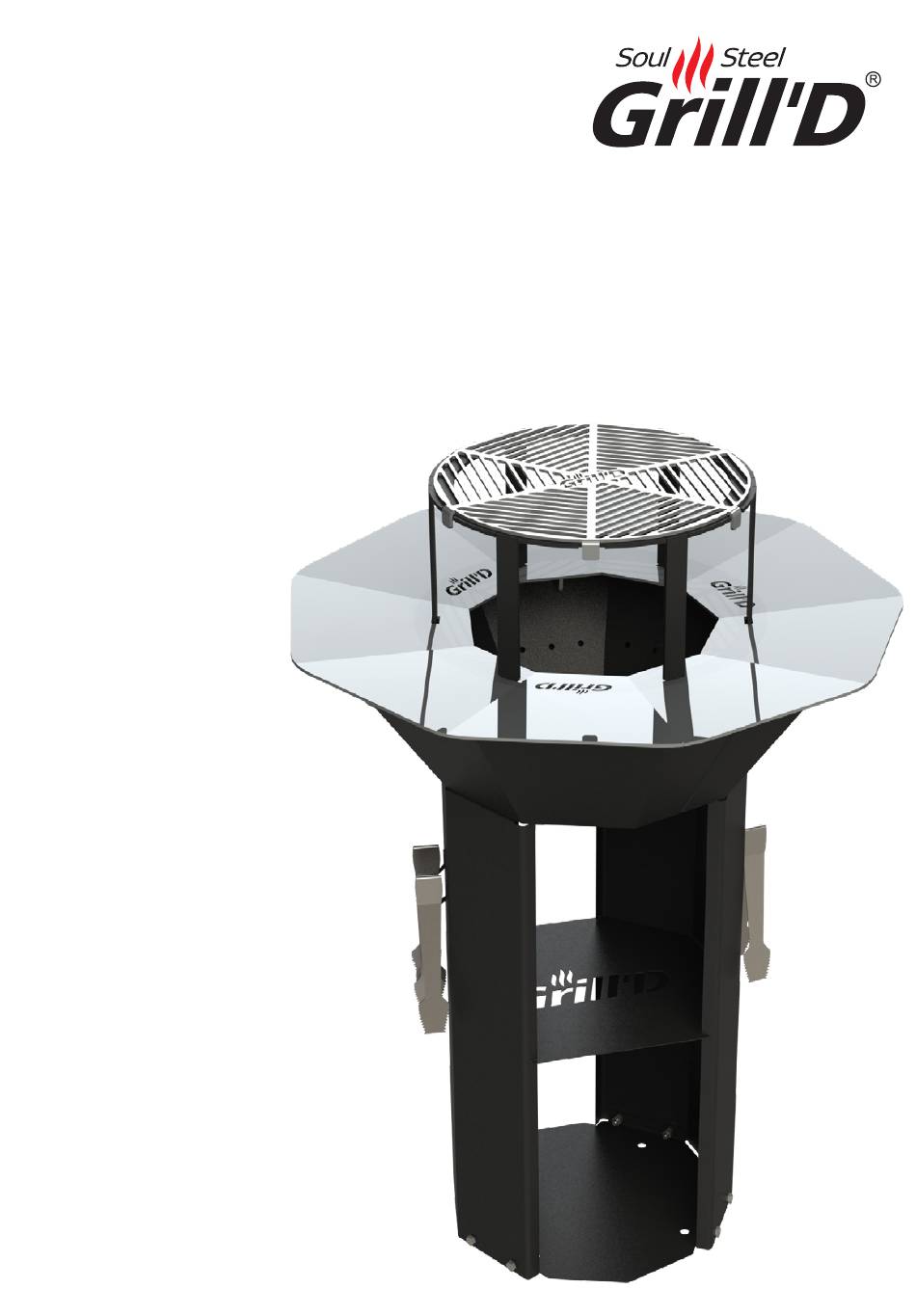

Installation and
Operation Manual
Step-Grill
Congratulations
on making a right
choice!
Compliance with
the instructions
of this manual
are mandatory, it
guarantees safety,
excellent quality and
maximum service life
of the Grill'D brand
grill.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Step-Grill and is the answer not in the manual?

Questions and answers

Related Manuals for Grill'D Step-Grill

Summary of Contents for Grill'D Step-Grill

  • Page 1 Installation and Operation Manual Step-Grill Congratulations on making a right choice! Compliance with the instructions of this manual are mandatory, it guarantees safety, excellent quality and maximum service life of the Grill’D brand grill.
  • Page 2 ɸ780 ɸ300 Fig. 1 Step-Grill dimensions...

  • Page 3: Table Of Contents

    CONTENTS № name page GENERAL SAFETY RULES APPLICATION TECHNICAL DATA DELIVERY PACKAGE, ASSEMBLY PROCEDURE COMMISSIONING WARRANTY TRANSPORTATION AND STORAGE DISPOSAL GENERAL SAFETY RULES IMPORTANT! PLEASE, OBEY FIRE SAFETY RULES! IMPORTANT! Non-observance of safety measures when using the grill can lead to serious consequences, even death. IMPORTANT! Do not use the grill near flammable, volatile or explosive substances.

  • Page 4: Application

    Vegetable oils used for cooking shall be stored in closed containers and shall not be placed on or near the grill. 1. APPLICATION Grill’D brand Step-Grill is designed for cooking outdoors, in alcoves, in verandas and one- storey extensions, using firewood or charcoal.

  • Page 5: Technical Data

    2. TECHNICAL DATA Grill dimensions are specified in Figure 1. Grill range (5) and cooking grate (9) are fabricated of stainless steel. Other elements are fabricated of quality structural-grade steel, painted with anti- corrosion heat-resistant enamel that can withstand temperatures up to 600 °C. Paint burnout or cracking in the inner bowl (4) is normal and is due to flame exposure.

  • Page 6: Delivery Package, Assembly Procedure

    3. DELIVERY PACKAGE, ASSEMBLY PROCEDURE 3.1 Delivery package Contents of Type Name № delivery Base 1 pce Shelf 1 pce Outer bowl 1 pce Inner bowl 1 pce Range 1 pce...
  • Page 7 Support 2 pcs Tongs 3 pcs Wok stand 1 pce Grate 1 pce M8 bolt 12 pcs M8 nut 12 pcs M8 spring washer 12 pcs M8 washer 12 pcs...
  • Page 8 3.2 Assembly procedure: IMPORTANT! Do not give mechanical impact to the grill surface prior to complete heat-bodying of the paint and its cooldown, in order to avoid damage of the coat of heat-resistant paint. 1) If necessary, the grill can be fixed at the place of permanent operation: there are four holes with a diameter of 12 mm in the base (1) for fixing the...
  • Page 9 groove shelf 3) Shelf (2) to be installed into the grooves of the previously installed support (6) and while holding it, install the second support (6) simultaneously matching the grooves and the shelf. While holding the structure, attach the support to the base (1) using fastening elements (10-13).
  • Page 10 4) Install the outer bowl (3), attach it to the supports (6) in four places using fastening elements (10-13).
  • Page 11 groove landing seat 5) Install the inner bowl (4) grooves to match the landing seats on the outer bowl (3).
  • Page 12 landing seat groove 6) Install the range (5) with landing seats in the grooves on the outer (3) and inner bowl (4).

  • Page 13: Commissioning

    4. COMMISSIONING IMPORTANT! Remove all packing elements, paper information labels, etc., prior to the operation of the product. IMPORTANT! It is prohibited to operate products with faults. Make sure that all elements of the grill are free from defects, and also make sure that the delivery package is complete.

  • Page 14: Transportation And Storage

    6. TRANSPORTATION AND STORAGE The following storage conditions apply to the storage premises of both the Supplier and the Consumer. Storage conditions: In accordance with GOST 15150-69, group 3. (in a dry room, providing protection from atmospheric precipitation and direct sunlight), in the original packaging, in a horizontal position.
  • Page 15 Notes...
  • Page 16 QCD mark: ________________________________________________________ (Name, signature, stamp) Date of sale: _______________________________________________________ (Date, Seller’s signature, store stamp) I have read and understood this manual: _________________________________ (Buyer’s signature) IMPORTANT! The Manufacturer disclaims warranty liability in the absence of a store stamp.
