We would you like to thank you for choosing an ezcap product. You have made an excellent decision.
The following contents guide you how to use the product. Hope this device will bring you nice digital experience
Overview
You now have all the options you need for recording your favorite music, an analog audio source to some kinds
of digital formats onto your computer. And edit them, and send them to your iPod by iTunes. So you can listen to
them any where and any time.
The USB Audio Capture, it can capture High-quality audio file directly by USB interface. It doesn't need any
drivers to be installed by the user, as the Windows Operating System will install the driver automatically.
The USB Audio Capture includes professional audio editing software – "Audacity". It can provide best editing
function for you. Audacity is an audio-editing software that makes editing your audio as fun as shooting them.
Audacity helps novice users finish MP3 music in only few steps. Share finished projects on Tape, MD, and
Phono.
Specification
Item Name
Model Number
Interface
Recording Format
Input
Power Supply
Consumed Power
Editing Software
Dimension / Weight
Cable Length
System Requirements
Connection Guide
USB Audio Capture
ezcap216
USB standard
Wave, MP3
Audio L/R (RCA), 3.5" Stereo Audio (Male)
USB Bus
≤ 1.5W
Audacity
73(L)×26(W)×11(H)mm / 62g
80cm(USB), 15.8cm(Audio)
One available USB port
Pentium4 CPU or above
512MB RAM or above
1GB free HDD space
CD-ROM for installation
Windows 2000, XP, Vista, Seven

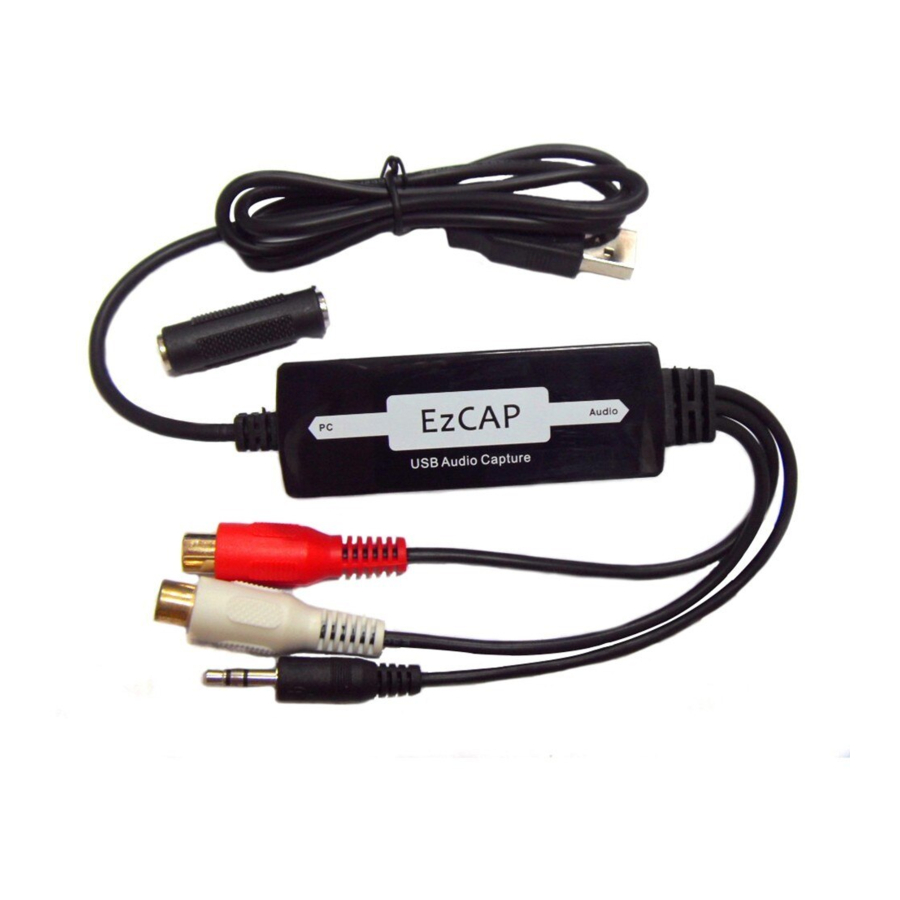

Audio Capture device, 3.5mm Audio female to female
connector, Software CD(includes application and manual)
USB Audio Capture
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EzCAP ezcap216
Summary of Contents for EzCAP ezcap216
- Page 1 USB Audio Capture We would you like to thank you for choosing an ezcap product. You have made an excellent decision. The following contents guide you how to use the product. Hope this device will bring you nice digital experience...
- Page 2 USB Audio Capture Notice: 1, You maybe have to buy a 3.5” Stereo Audio cable (Male) if the audio cable of device is not long enough. 2, The below devices can be used as analog audio sources: Tape, MD, Phono, CD player, and any device that provides an analog audio signal Quick Installation Chart Please read the all installation guide clearly.
- Page 3 The operating system will install the drivers for ezcap USB Audio Capture automatically. Please connect the ezcap USB Audio Capture to your computer. Wait for a moment until the system appears you “Your new hardware is installed and ready to use”. It means the driver has been installed.
- Page 4 USB Audio Capture Audacity for Windows OS Audacity Software Installation Please insert the Software CD into the CD drive, and read it. Double click “Audacity.exe” file, and select the language you wanted, then click “OK” to start installation. Click “NEXT” and / or select the installation folder to go forward. Please wait for installation finished, and click “Finish”...
- Page 5 USB Audio Capture Now, you need to set software for capturing and editing audio. Audacity Software Guide Double click “Audacity” icon on your desktop. Please click “Edit” key on the software panel, and select “Preferences”.
- Page 6 USB Audio Capture Please set recording device to be “USB Audio Device”, and channels to “2(Stereo)”. And select “Software Play through (Play new track while recording it)”. Now, you can start to record analog audio to be digital MP3 format file. Begin playing your vinyl or cassette and click red record key (see below) to start recording audio - when you want to finish, click the yellow stop key.
- Page 7 USB Audio Capture Now you can export the recording audio into MP3 format files in your computer. Click “File”, and select “Export”, you will get one window. Please write the name of the recording file, and select the “Format” to be MP3 or other format that you wanted. Then select “Save”.
- Page 8 USB Audio Capture Note: Please go to the link - http://manual.audacityteam.org/o/ to get the more information for Audacity software functions.
- Page 9 USB Audio Capture Audacity for Mac OS X Check Hardware Installation The hardware device doesn’t need any driver. Mac X OS will install the driver automatically. Please check hardware installing correctly. Please go to “Apple logo” \ “About this Mac” \ “More information” \ “Hardware” \”USB”. If the driver has been installed correctly, you should see the “USB Audio Device”...
- Page 10 USB Audio Capture Click “Install” to start installation. Please wait for installation finished, and click “Close” to complete the installation.
- Page 11 USB Audio Capture Now, you need to set software for capturing and editing audio. Audacity Software Guide Please click “Go” and select “Application”, then you will get the window as below. Open “Audacity” folder and double click “Audacity” icon to start the software. Please click “Edit”...
- Page 12 USB Audio Capture Please select recording device to be “USB Audio Device” or “USB PnP Audio Device”, and channels to be “2(Stereo)”. And select “Software Play through (Play new track while recording it)”, then click “OK”. Now, we start to record analogue audio to be digital MP3 format file. Please click red record key to start recording audio that you wanted.
- Page 13 USB Audio Capture At first time, we need to do more steps if we want to export as MP3 file. Click “File”, and select “Export”. Maybe you need to give some information, such as file name and location. And you need to select file format to MP3 format, then click “Save”.
- Page 14 USB Audio Capture You may be asked to provide some additional information about your recording files. Then you can get the recording audio file into the format that you want. Now, you can get MP3 file through your analog audio device. You can use the file for your iPod by iTunes.
Need help?
Do you have a question about the ezcap216 and is the answer not in the manual?
Questions and answers
My laptop don't see the Ezcap cassette Capture 216, how can I this dissolve?
To resolve the issue of your laptop not recognizing the EzCAP ezcap216 cassette capture device:
1. Check Device Manager:
- Right-click on "My Computer" and click "Properties".
- Go to the "Hardware" tab and open "Device Manager".
- Look under "Sound, video and game controllers" for "USB Audio Device".
2. Check for Driver Issues:
- If there is a yellow mark next to "USB Audio Device", the driver is not installed correctly.
3. Reinstall the Driver:
- Remove the driver from Device Manager.
- Disconnect the ezcap216 device from the computer.
- Reconnect the device to reinstall the driver.
4. Install Software:
- Insert the included Software CD.
- Run “Audacity.exe” from the CD to install the audio editing software.
- Follow the installation prompts and finish setup.
These steps should help your laptop recognize the ezcap216 cassette capture device.
