Model
Prepared by
Subject
Disassembly
This section covers the assembly and disassembly of SDP100 phone. In order to carry out the
assembly or disassembly the following precautions should be taken:
1. A Plus screwdriver is required to remove the four retaining screws, which holds the two casings
together. Ensure that the screwdriver is narrow enough to reach the screws without causing
damage to the casing parts.
2. The phone should always be placed on a soft surface to minimise the risk of damage being
caused to the casing, window and keypad. If the PCB is to be removed, then care should be taken
not to stress or scratch the exposed LCD.
3. Observe anti-static precautions when handling the main PCB or any of its components.
4. Repairs carried out by unauthorised persons will result in the warranty on the unit becoming
void.
5. Do not use solvents to clean any of the casing parts or the LCD window.
Phone disassembly

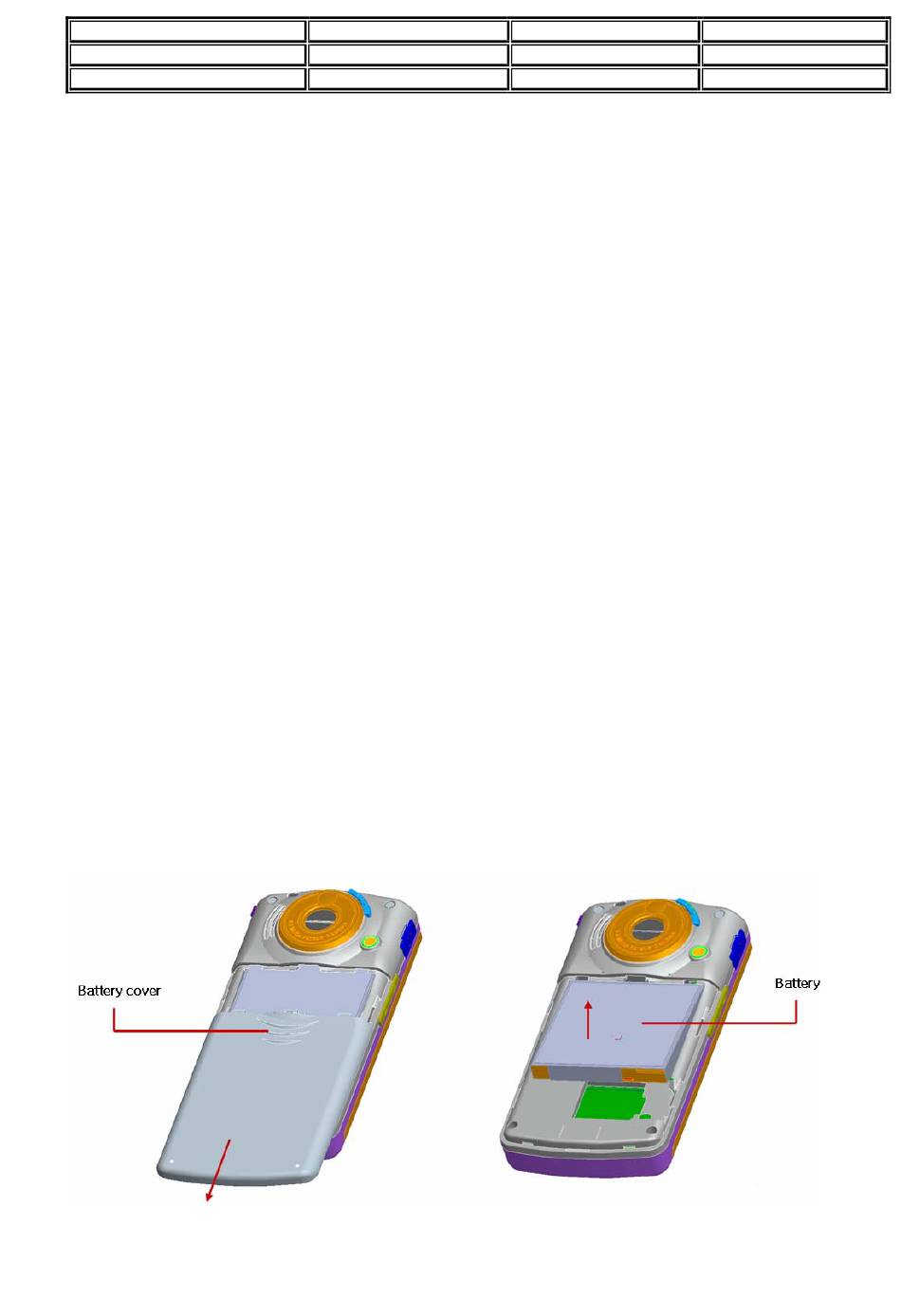

1. Battery Cover Disassembly
A. Shove battery cover out along the direction of arrow and remove battery cover.
B. Push up battery along the direction of arrow and remove battery.
2. SIM card & TF card & caps & screws & rear cover Disassembly
SDP100
H/W
Technical Manual
Version
Date
Page
V_0.1
2007.05.22
1/15
Advertisement
Related Manuals for FLY SDP100
Summary of Contents for FLY SDP100
- Page 1 1/15 Disassembly This section covers the assembly and disassembly of SDP100 phone. In order to carry out the assembly or disassembly the following precautions should be taken: 1. A Plus screwdriver is required to remove the four retaining screws, which holds the two casings together.
- Page 2 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 2/15 A. Remove SIM card B. Remove TF card C. Remove four caps and four screws. Carefully separate two covers (front and rear) 3. Side key & Disassembly A.
- Page 3 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 3/15 Separate Main PCB manual ASS’Y, Main keypad ASS’Y and Cap IO ASS’Y from front cover. 5. Front cover & Deco rail Disassembly...
- Page 4 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 4/15 A. Unscrew four slide unit screws from front cover B. Remove deco rail from front cover. 6. Slide unit & Stopper & Back cover Disassembly...
- Page 5 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 5/15 A. Remove two caps and four screws and carefully separate two covers (top and back) B. Unscrew six slide unit screws and remove slide unit C. Remove slide unit D.
- Page 6 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 6/15 A. Remove LCD manual ASS’Y from top cover. B. Remove keypad from top cover.. 8. Decoration top cover and Main window Disassembly...
-
Page 7: Phone Assembly
Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 7/15 A. Pull off decoration top cover from top cover B. Pull off main window from Top cover. Phone Assembly 1. Top cover assembly... - Page 8 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 8/15 A. Attach the D/T decoration slide key on the top cover B. Attach the decoration slide key by heat C. Attach the receiver metal net on the top cover.
- Page 9 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 9/15 C. Assemble the slide unit with back cover. D. Screw up six slide unit screws. E. Attach the D/T decoration back cover. F. Attach the decoration back cover.
- Page 10 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 10/15 B. Group the LCD manual ASS’Y into the top cover. C. Attach the cushion LCD on the LCD glass. D. Attach the main window on the top cover.
- Page 11 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 11/15 C. Attach the two cap screws. 5. Front cover & Deco rail Assembly A. Group the front cover with Deco rail. B. Screw up four slide unit screws.
- Page 12 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 12/15 6. Main PCB & Main keypad Assembly A. Group the main keypad ASS’Y, cap IO ASS’Y and main PCB manual ASS’Y with front cover.
- Page 13 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 13/15 7. Side key ASS’Y & Camera key ASS’Y Assembly A. Group the side key ASS’Y and camera key ASS’Y along the arrow direction.
- Page 14 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 14/15 9. Sim card & screw & caps & rear cover Assembly A. Assemble the rear cover. B. Screw up four screws and put in five caps. C. Put the TF card and SIM card in.
- Page 15 Model SDP100 Version V_0.1 Prepared by Date 2007.05.22 Subject Technical Manual Page 15/15 B. Put the battery in and shove battery cover in along the direction of arrow.
