- Page 1 Gustard Headphone Amplifier User’s Manual...
-
Page 2: Table Of Contents
Table of Contents Front panel Introduction· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·2 Rear panel Introduction·... -
Page 3: Front Panel Introduction

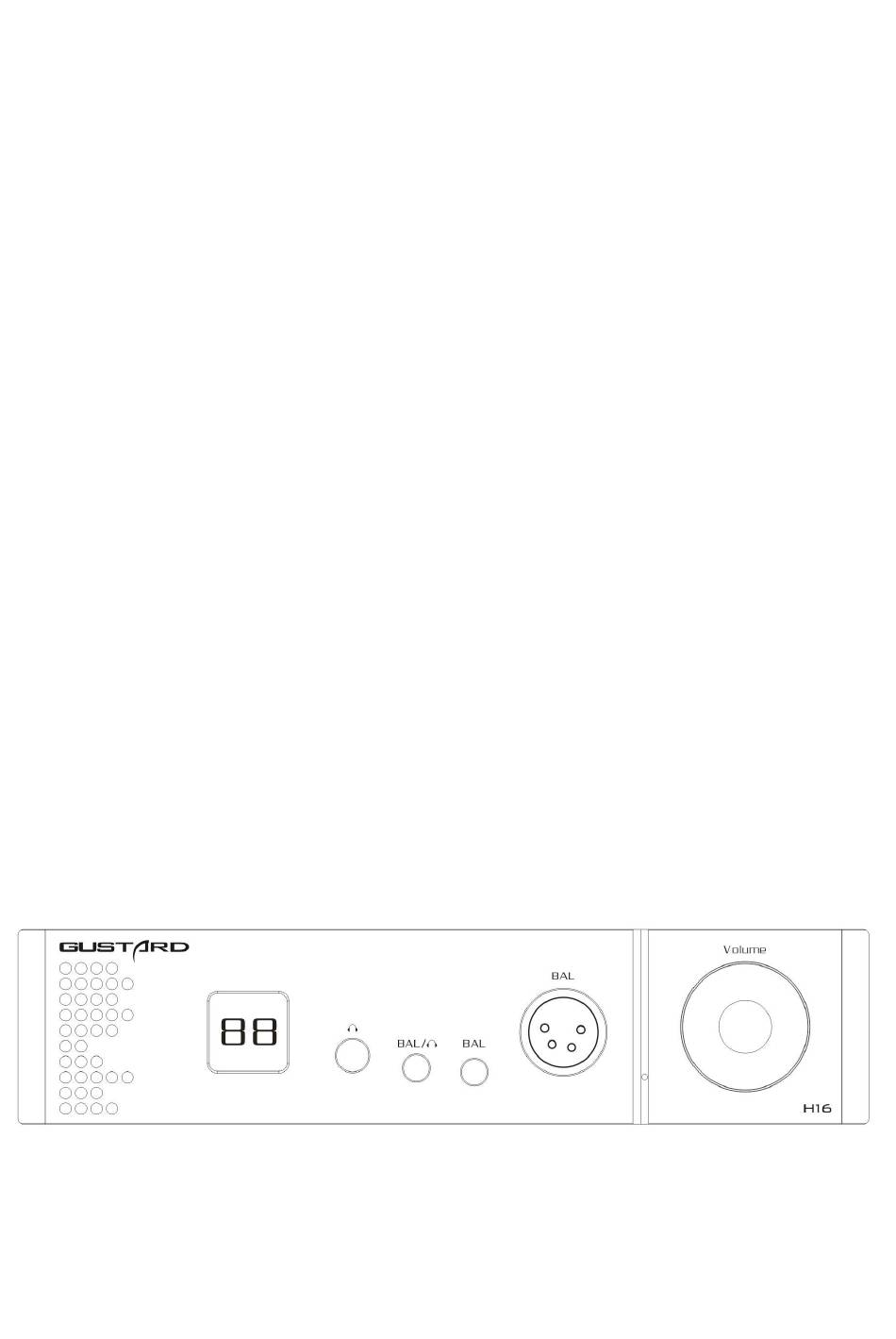

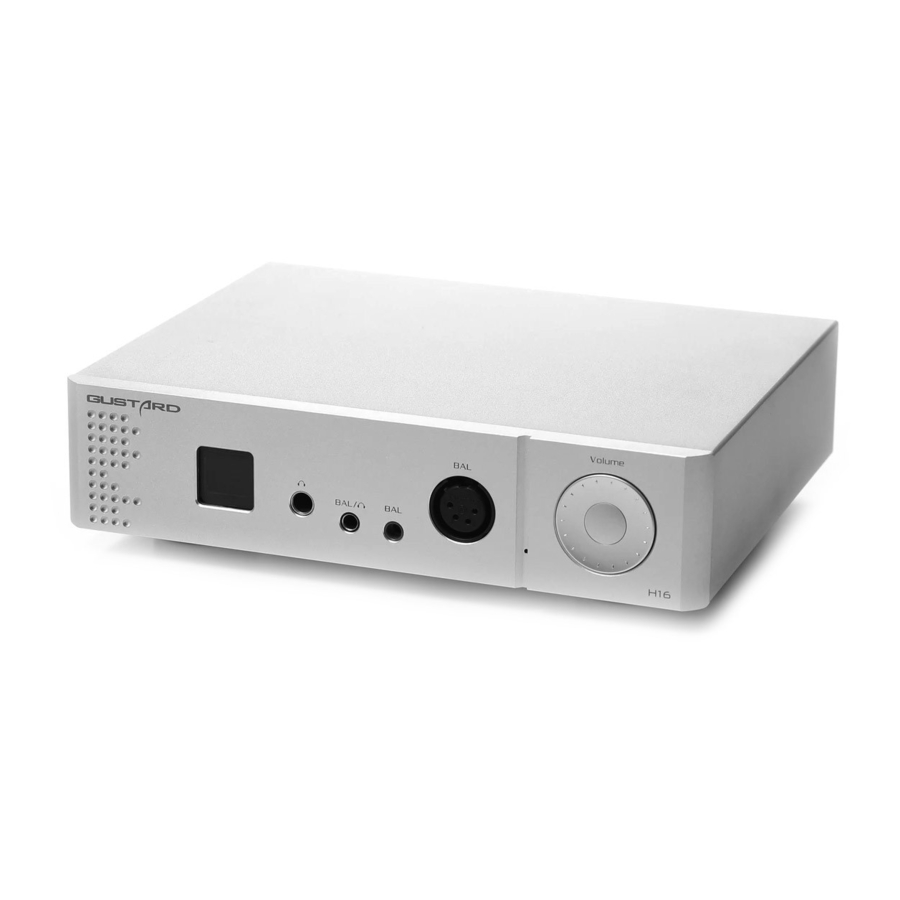

Front panel 1. The display usually shows the current volume status. 2. The Turntable can adjust the volume; or adjust the menu options in the menu state. 3. Function button, short press to switch the analog input channel; long press to enter or exit the menu. Rear panel AC international voltage switching: be sure to select the correct voltage range according to the area of use, otherwise the internal transformer will be damaged!!! -
Page 4: Menu Description
2. Input channel selection: The H16 headphone amplifier has a total of 2 input channels. In the main page display state, short press the menu key to cycle through the current input channel between XLR and RCA. -
Page 5: Balanced Earphone Connection
When connecting balanced headphones, avoid midpoint or common ground connections. H16 headphone amplifier provides three different interfaces to connect balanced headphones. The specific pin definitions are as follows: Use a single four-pin XLR connector (male). For example: Neutrik NC4MC-B connector. -
Page 6: Ir Remote Control
AMP button for more than 3 seconds to enter the amp operation mode. ① Mute button: By default, press this button once to enter the mute state of the H16 headphone amplifier; when the H16 headphone amplifier is in the mute state, press this button to unmute. -
Page 7: Product Specifications
Product specifications Analog input : One set of RCA standard input, typical input sensitivity: 2Vrms; input impedance 4.7kΩ One set of XLR balanced input, typical input sensitivity: +18dBu maximum +26dBu; input impedance 10kΩ Preamplifier analog output (XLR on the rear panel) : Frequency response: 20-80kHz /-0.1dB Signal to noise ratio: 120dB Channel crosstalk: -120dB @ 1kHz... -
Page 8: Output Power Chart
Output power curve chart H16 Balanced Headphones Output Maximum undistorted Power (mw) VS Headphones impedance (ohm) 4000 3500 3000 2500 2000 1500 1000 Headphones impedance (ohm) H16 Single-ended Headphones Output Maximum undistorted Power (mW) VS Headphones impedance (ohm) 1200 1100... -
Page 9: After-Sales Policy
Free Warranty Service GUSTARD H16 HEADPHONE AMPLIFIER from the purchasing date in the free warranty period, the user uses the product in normal, and the product fails due to component quality or manufacturing problems.
