Summary of Contents for GUSTARD P26
- Page 1 Gustard High-performance full balanced preamp User Manual...
- Page 2 The GUSTARD P26 is a high performance fully balanced preamplifier with the following features: • Fully balanced design, the left and right channels are divided into regions, and the left and right separation is excellent • The volume uses a multi-stage relay array, the volume adjustment is delicate, and there is no problem of left and right channel deviation •...
-
Page 3: Table Of Contents
Table of Contents Front panel Introduction· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·3 Rear panel Introduction·... -
Page 4: Front Panel Introduction

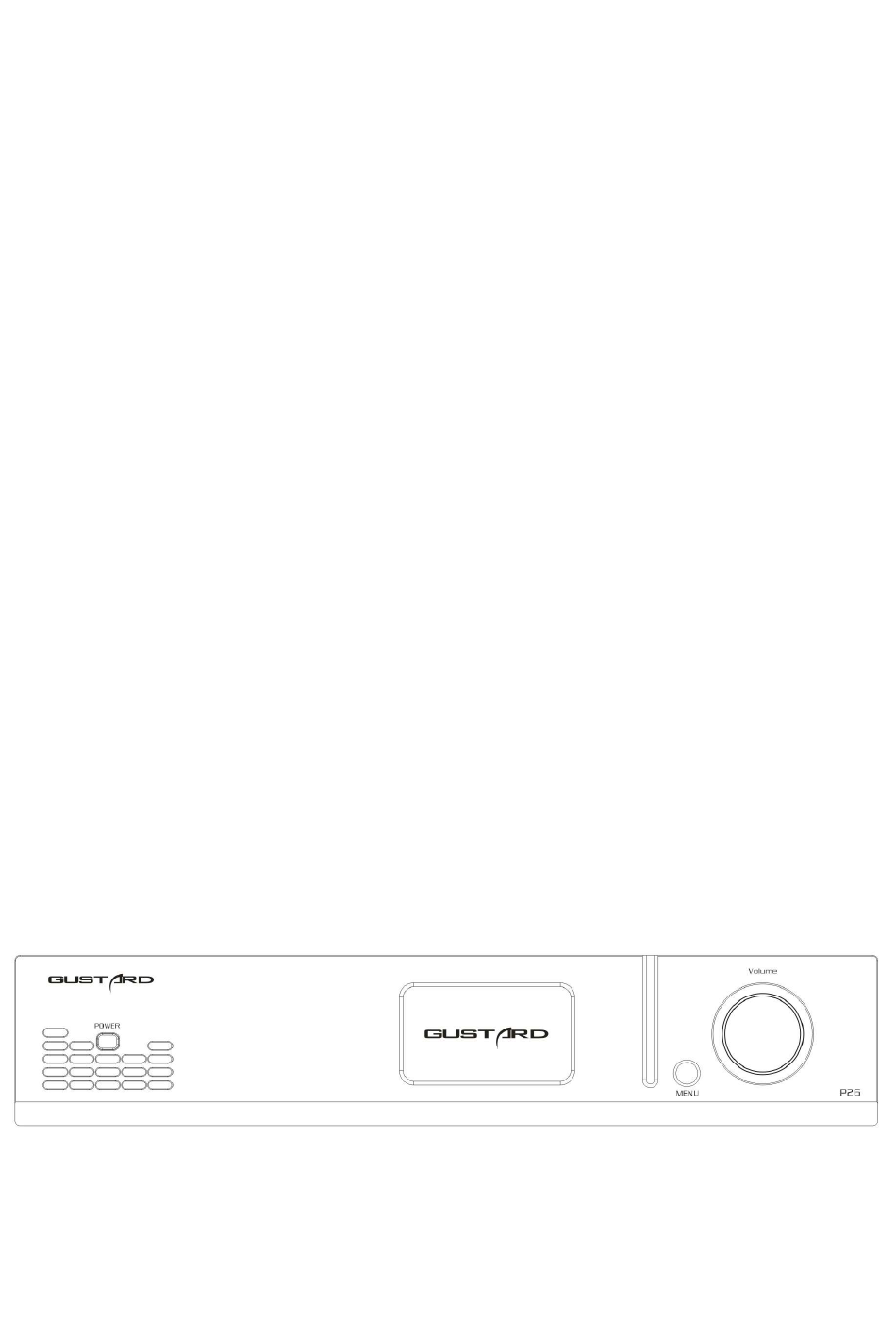

Front panel 1. The power switch is a button. When the power is off, press the power switch to turn it on. Press again to power off. 2. The screen will display the current input channel, GAIN, volume and other status. 3. -
Page 5: Display And Menu
The following graphic shows the status of the main page of the screen. 2. Input channel selection: The P26 preamp has a total of 3 input channels. In the main page display state, short press the menu key to cycle select the current input channel in the order of RCA—XLR1—XLR2. - Page 6 Each menu option is introduced below: a. IGAIN(Input circuit gain adjustment): P26 Preamp input stage circuit can adjust the gain, and the options are 0dB or + 6dB to match the level amplitude of different Sound source outputs for the best listening experience.
-
Page 7: Ir Remote Control
② Menu button: Press this button to enter the function setting menu of P26 Preamp. ③ Four-way and OK button: When entering the menu of P26, use up / down to switch the function to be adjusted, and adjust the options by left / right. Press the middle button to confirm the adjustment result and return to the main page screen. -
Page 8: Product Specifications
Product specifications Analog input: RCA：Input impedance 47k Input sensitivity 2~10V rms XLR1 & XLR 2：Input impedance 47k Maximum input Level +28dBu（19V rms） @ IGAIN=0dB Analog output: Frequency response: 20-20kHz /+-0.1dB Signal to noise ratio: 130dB Channel crosstalk: -130dB @ 20-20kHz THD+N：<0.00035% 20-22kHzBW @ 18dBu IN &... - Page 9 Free Warranty Service GUSTARD P26 PREAMP from the purchasing date in the free warranty period, the user uses the product in normal, and the product fails due to component quality or manufacturing problems.
