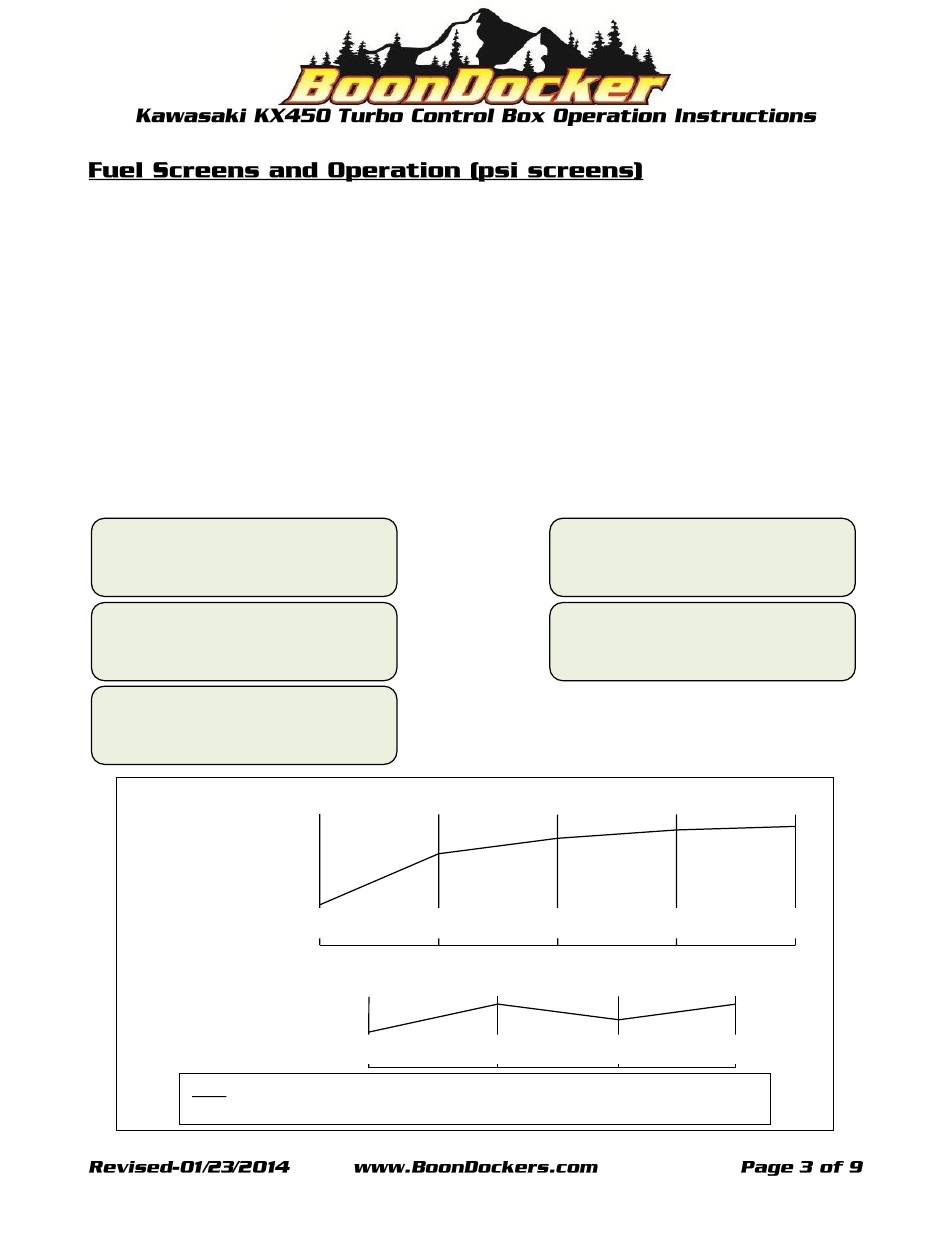

BoonDocker Turbo Control Box Operation Instructions Manual page 3

There are five fuel (psi) screens. These screens allow the user to make fueling adjustments for boost.
Each of the fuel screens are labeled with that screens corresponding RPM in the lower left hand corner
of the display and has four adjustment points 0, 33, 66, and 99. These adjustment points represent a
given throttle position (TPS) percentage, 0% being no throttle and 99% being full throttle. The adjustable
two digit numbers below each TPS value represents the amount of fuel that will be added to the given
RPM and TPS range. The values set in these psi screens will adjust fueling according to the
corresponding RPM and TPS ranges while automatically factoring in boost pressure. Each of the RPM
ranges blend into each other as demonstrated in the RPM figure below. Each TPS range blends to the
previous and next adjustment point as demonstrated in the TPS figure below.
To make adjustments, use the left and right arrow buttons to position the →(cursor) next to the
appropriate TPS value and use the up and down buttons to increase or decrease the fuel value.
To advance to the next screen press the SEL button.
psi →
0 33
4300 05 05
psi →
0 33
6000 08 18
psi →
0 33
7500 16 16
RPM
Applied (TPS) Values
Adjustable Values
Note: The adjustable values displayed are only samples, intended to illustrate the manner in
which these values will affect the blending in each region.
66 99
00 00
66 99
11 00
66 99
22 18
4300 5500
05 07
TPS 0
05
psi →
0
8700 14
psi →
0
10K 19
6700 7500
10 11
33 66
10 07
33 66 99
22 35 40
33 66 99
35 40 45
8200
12
99
11
