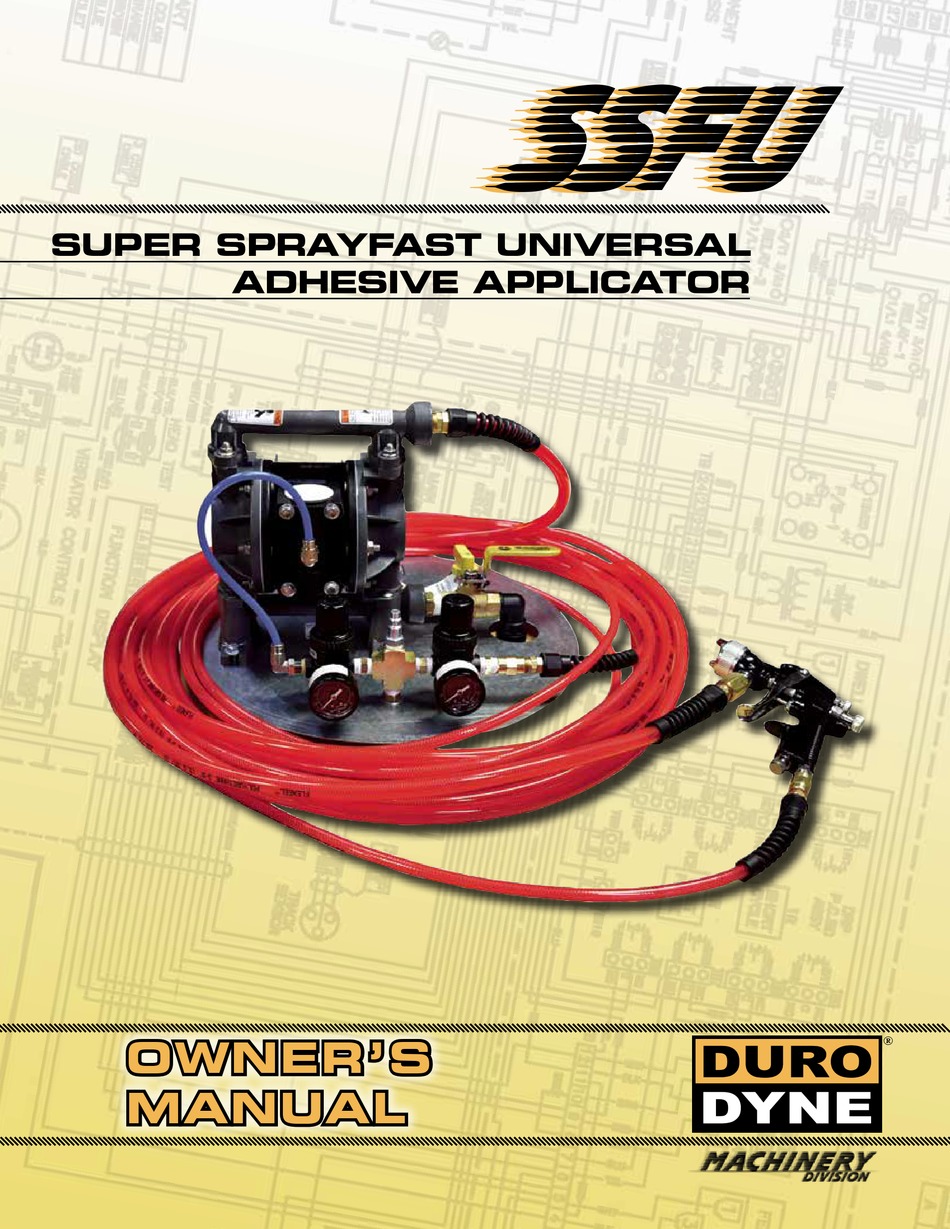

- Page 1 SSFU SSFU SUPER SPRAYFAST UNIVERSAL ADHESIVE APPLICATOR ® OWNER’S OWNER’S MANUAL MANUAL...
- Page 2 Duro Dyne Distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Duro Dyne will, for a period of 90 days from date of sale, repair or replace any part of the equipment proven defective. This warranty applies only when the equipment is installed, operated, and maintained in accordance with Duro Dyne’s written recommendations.
- Page 3 • This equipment is for professional use only. • Read all instruction manuals, tags and labels before operating the equipment. • Use the equipment only for its intended purpose. If you are not sure, call Duro Dyne’s Technical Service department at 1-800-899-3876 •...
- Page 4 ASSEMBLY ASSEMBLY Assembling for the 5 Gallon unit: (see Figure-1 below) 1 - Insert the Suction Tube through the hole into the Elbow to its full depth. 2 - Insert the Re-circulation Tube (shown as hidden) through the hole into the Connector to its full depth. Tube may be as shown or on other side of the Elbow.
- Page 5 2 - Always use genuine Duro Dyne Super Sprayfast Universal parts and accessories, available from your Duro Dyne Distributor. Refer to the Product Data Sheet for the pump. If you supply your own accessories, be sure they are adequately sized and pressure rated for your system.
- Page 6 OPERATION OPERATION Starting and Adjusting the Pump: (see Figure-3 below) 1 - Check that all fittings are tight. Be sure to use a compatible liquid thread sealant or Teflon tape on all male threads. Tighten the Fluid Inlet and Fluid Outlet fitting into the Pump. 2 - Place the finished Pump Assembly onto either a 5 gallon pail or a 55 gallon drum with tubing into the fluid.
- Page 7 PARTS LIST PARTS LIST 39033 SSFU P/U Tube - Short 39034 SSFU P/U Tube - Long 39035 SSFU P/U Tube Coupler 39052 SSFU Flush Fitting Assembly 39053 SSFU Flush Hose Assembly 39054 SSFU Lid Complete 5120 CAG SSFU Adhesive Gun Only 5144 15’...
- Page 8 ® MACHINERY DIVISION © 2017 Duro Dyne Corporation Printed in USA 2/7/2017 BI060010 Duro Dyne Corporate Headquarters, Bay Shore, NY 631-249-9000 • Fax: 631-249-8346 Duro Dyne Midwest • Duro Dyne West • Duro Dyne Canada www.durodyne.com • E-mail: durodyne@durodyne.com...
