CONTENTS PAGE:
2 X End Panels
3 x back Panels
1 x Base
1 x Lattice
1 x Roof
4 x Centre Posts
65mm Screws
85mm Screws (For the Base only)
2 x Spacer Blocks
Door version only:
3 x Doors
Black Screws (for hinges)
3 x Latches

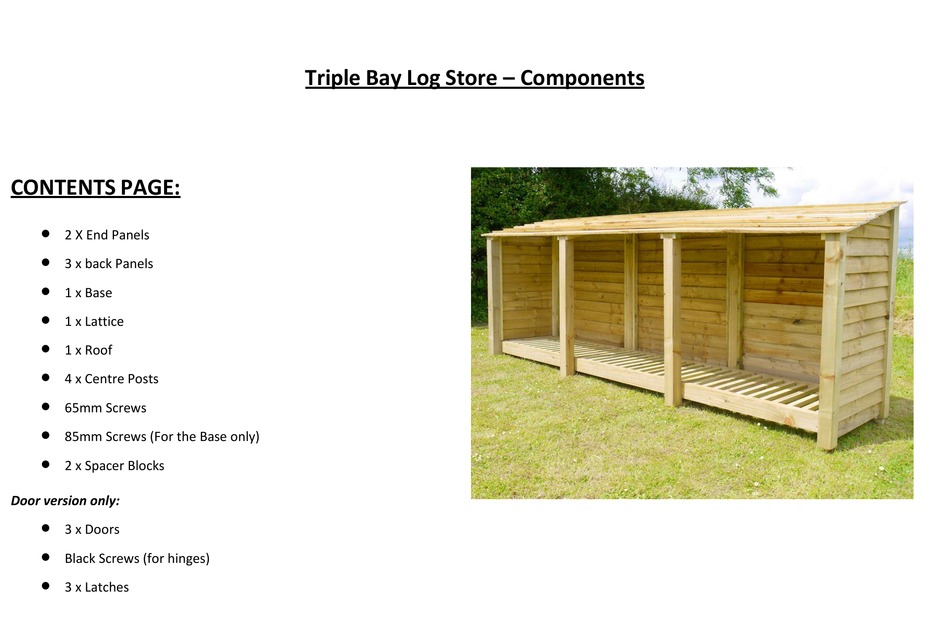

Triple Bay Log Store – Components
Advertisement
Related Manuals for Rutland County Garden Furniture Triple Bay Log Store
Summary of Contents for Rutland County Garden Furniture Triple Bay Log Store
- Page 1 Triple Bay Log Store – Components CONTENTS PAGE: 2 X End Panels 3 x back Panels 1 x Base 1 x Lattice 1 x Roof 4 x Centre Posts 65mm Screws 85mm Screws (For the Base only) ...
- Page 2 Firstly, stand the left hand End Panel upright, then place the Back Panel on the two Spacer Blocks provided to give you the correct distance from the ground. Using the 65mm screws, fix the Back Panel to the Side Panel (as shown in picture 3).
- Page 3 Place one of the longer centre posts next to the Back Panel and using the 65mm Screws, fix into position (as shown in pictures 1 & 2). Place the next Back Panel on the two Spacer Blocks provided and secure into place using the 65mm Screws. Repeat this process with the 2 Centre Post and the 3 Back Panel.
- Page 4 Slide the base into position and secure using the longer 85mm screws. Screw into the front posts first and then into the rear, once this has been done, screw the base into the centre post.
- Page 5 Slide the remaining end panel onto the log store and using the 65mm screws, secure the back panel to the end panel. Using the 85mm screws, fix the base into position front and rear. Place the roof on top of the posts, ensuring that the roof support batons finish flush with the front post.
- Page 6 Position the lattice as shown in picture 1. Now line up the remaining two centre posts with the black lines on the base (as shown in picture 2) and fix into position, ensuring that the centre posts finishes flush with the roof support batons (as shown in picture 3).

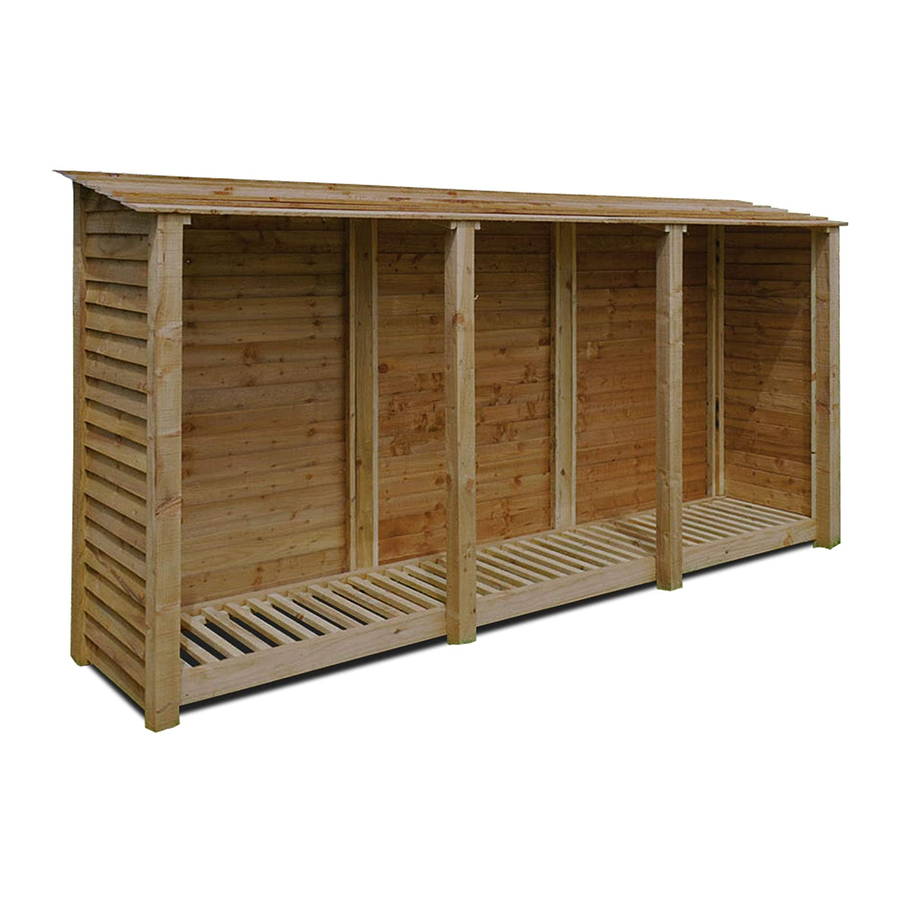

- Page 7 FINISHED PRODUCT...
- Page 8 Door Version Only Stand the left hand door on a spacer block to give you the correct height, using the 42mm black screws, fix the hinges into the post on the left, leaving a small gap, as show in pictures 2 and 3. Now repeat the process for the other two doors ensuring that they open from the middle out (like a wardrobe).
- Page 9 The latches are already screwed onto the front of the doors. Close the doors and hold the latch horizontal, then position the keeper for each latch and fix into place.
