Instructions for the

Single-Sided Bin Rack (HCL #1431)

Open End

Open End Up

2. Now attach the remaining

vertical bar onto the hor-

izontal bar using screws.

Tighten down the screws.

The open end should

face inward as well.

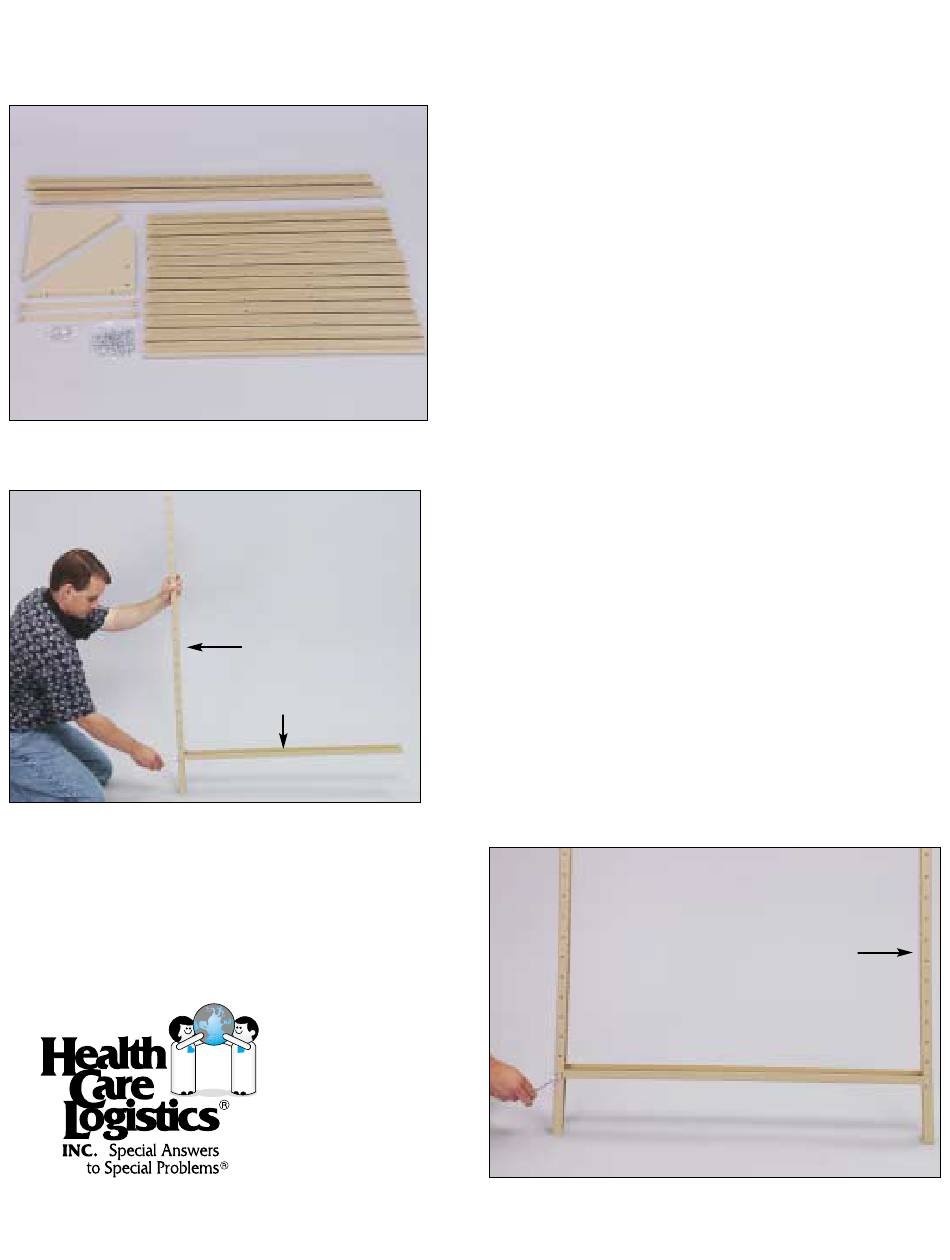

Before assembling your Bin

Rack, please familiarize yourself

with all the parts, and check to

make sure that you have all the

parts as listed below.

A - (2) Vertical Bars

B - (12) Horizontal Bars

C - (2) Leg Stands

D - (2) Braces

E - (1) Bag of Mounting Hardware

1. Take one of the two vertical

bars and attach a horizontal

bar to the first hole from the

bottom using the included

screws. There will be a

screw on both sides of the

vertical bar. The open end

of the vertical bar should

face in and the open end of

the horizontal bar should

face up.

Open End

Page 1 Instructions for the Single-Sided Bin Rack (HCL #1431) Before assembling your Bin Rack, please familiarize yourself with all the parts, and check to make sure that you have all the parts as listed below. A - (2) Vertical Bars B - (12) Horizontal Bars...
Page 2 Instructions for the Single-Sided Bin Rack (HCL #1431) 3. Skipping two holes on the vertical bar, attach another horizontal bar with the open end up. Attach the rest of the horizontal bars, skipping every other hole using the included screws.
Page 3 Instructions for the Single-Sided Bin Rack (HCL #1431) 5. After attaching the second base unit onto the rack, attach both braces. The braces attach from the bottom of the vertical bars to the center holes in the first horizontal Place the bolts bar.
