TOOLS REQUIRED
1/8'' Drill bit
Drill
BOX CONTAINS
2 x
1 x
WARNING
Please read installation carefully prior to installing. Before using the product thoroughly
test the fully-weighted product (with equipment in place) to ensure the product has been
installed properly. Do not allow children to play on product. Proslat is not responsible for
any damage resulting from improper installation, overloading or product failure.
STEP 1
Measure the distance between the handle
bars and seat of the bike. Most adult bikes
are between 32" and 36", we suggest install-
ing your hoist a maximum of 48" apart.
295 D, boul. Industriel, Châteauguay (QC) J6J 4Z2 proslat.com

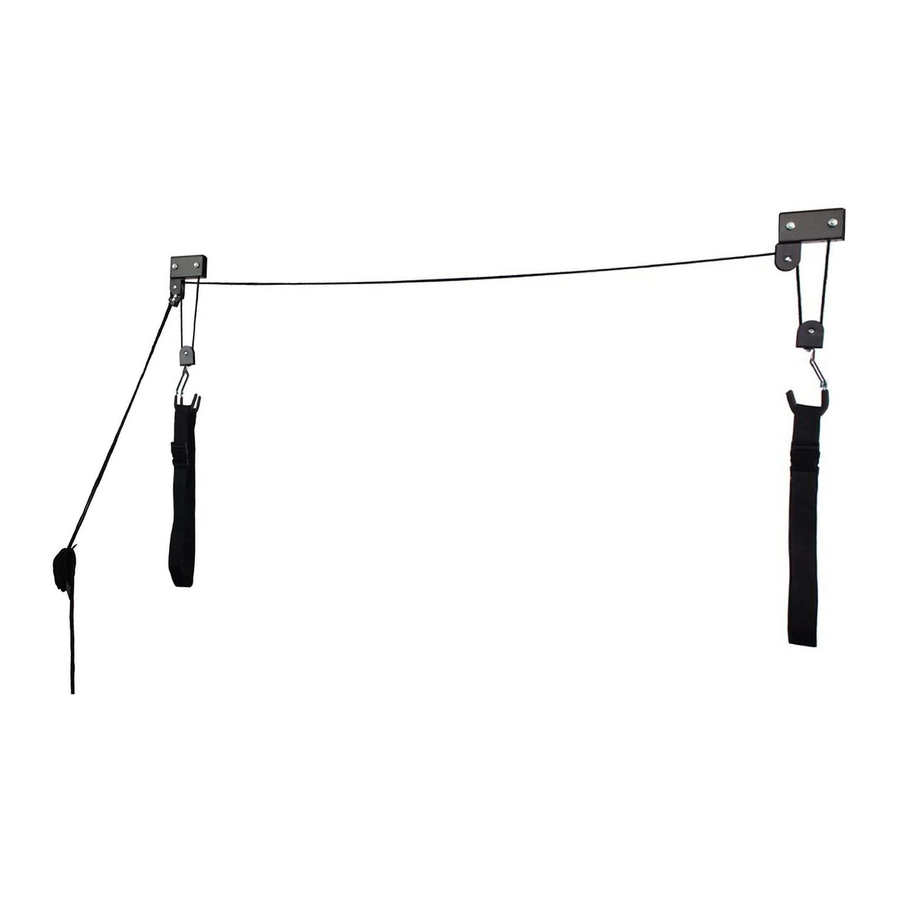

HEAVY DUTY HOIST
Installation guide
Star screwdriver
4 x
4 x
1 x
Tape measure
4 x
1 x
For kayaks or similar items, we suggest 6' apart.
1-888-691-2944
//
450-691-2944
Adjustable wrench
4 x
1 x
2 x
info@proslat.com
1 x
2 x
Advertisement
Table of Contents
Related Manuals for Proslat HEAVY DUTY HOIST
Summary of Contents for Proslat HEAVY DUTY HOIST
- Page 1 Please read installation carefully prior to installing. Before using the product thoroughly test the fully-weighted product (with equipment in place) to ensure the product has been installed properly. Do not allow children to play on product. Proslat is not responsible for any damage resulting from improper installation, overloading or product failure.
- Page 2 Double knot around bolt Figure eight knot Left side rope Proper rope placement in brake 295 D, boul. Industriel, Châteauguay (QC) J6J 4Z2 proslat.com 1-888-691-2944 450-691-2944 info@proslat.com...
- Page 3 It is the installer’s responsibility to check for proper installation and if in doubt, contact the manufacturer. These assembly guidelines will direct you through the process of assembling a section of Proslat Inc product. Please keep in mind that they may not cover every assembly or installation scenario you may encounter.
- Page 4 à sa charge maximale afin de vous assurez qu’il a été installé adéquatement. Ne pas permettre aux enfants d’utiliser ou de jouer avec le produit. Proslat n’est pas responsable de quelconque dommage causé par une mauvaise installation, une surchage ou une défaillance du produit.
- Page 5 8 et faites un double nœud autour du boulon. Double knot around bolt Figure eight knot Côté droit Mise en place de la corde dans le frein 295 D, boul. Industriel, Châteauguay (QC) J6J 4Z2 proslat.com 1-888-691-2944 450-691-2944 info@proslat.com...
- Page 6 Cette garantie est valide seulement si la capacité maximale de 100 lb (45 kg) du palan a été respectée. (Le client, distributeur et/ou l’installateur s’engage à ne pas tenir PROSLAT responsable en cas d’une réclamation concernant le spalan si le poids a dépassé la capacité maximale de celui-ci ou que l’installation n’a pas été effec- tuée selon les instructions du fabricant.
