Shure A15AS User Manual

Switchable in-line attenuator

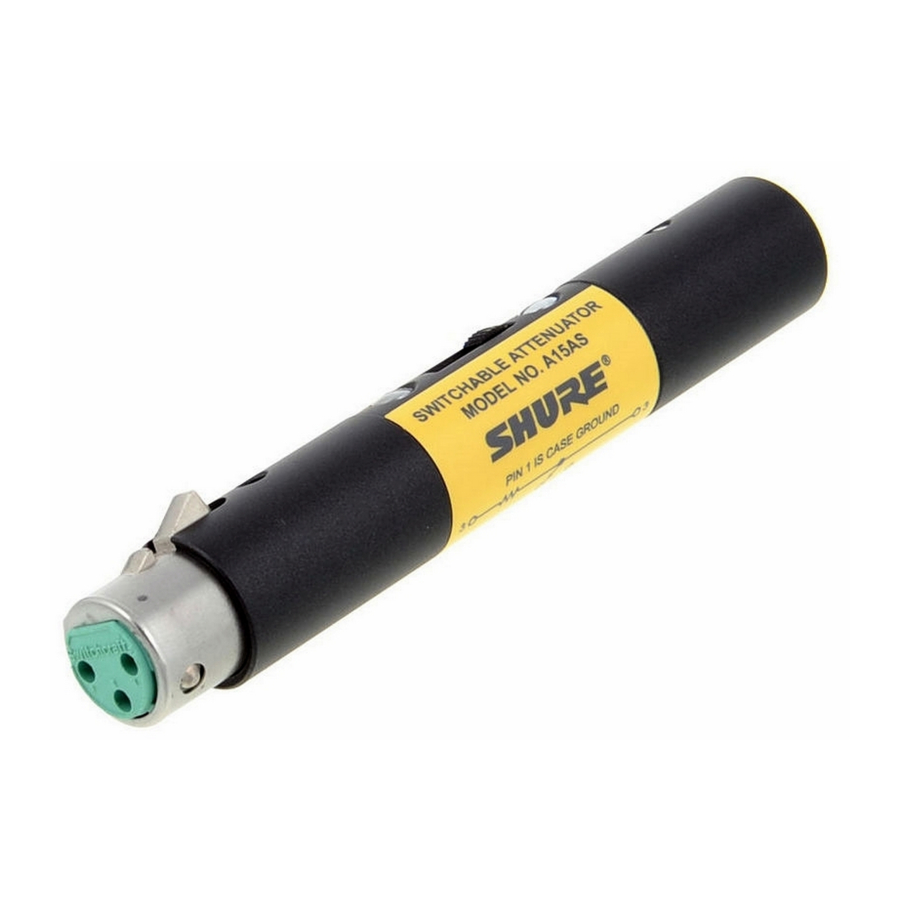

MODEL A15AS SWITCHABLE IN-LINE ATTENUATOR

Use this balanced-line attenuator to prevent low-impedance

microphones (rated at 150 or 600 Ω) and high-output condenser

microphones from overloading low impedance inputs in high

sound pressure level applications. The values of attenuation can

be switch selected for 15, 20, or 25 dB.

Use the A15AS with any low-impedance microphone, including

phantom-powered condenser microphones, such as the Shure

SM81. It can be used in line between the microphone and its pow-

er supply. (This model is not suitable for use with the condenser

powering system called "A-B Powering.")

The A15AS attenuator bridges the microphone output and allows

maximum signal handling with a minimum of loading-caused dis-

tortion or reduction in clipping level.

2003, Shure Incorporated

27B1915 (Rev. 4)

Model A15AS

User Guide

Printed in U.S.A.

Table of Contents

Do you have a question about the A15AS and is the answer not in the manual?

Page 1 (This model is not suitable for use with the condenser powering system called “A-B Powering.”) The A15AS attenuator bridges the microphone output and allows maximum signal handling with a minimum of loading-caused dis- tortion or reduction in clipping level.
Page 2 SPECIFICATIONS Frequency Response Flat, 20 to 20,000 Hz $ 0.5 dB Impedance Input (XLR Female): 1,000 Ω Output (XLR Male): 150 Ω Attenuation (switch selectable) 15 dB, 20 dB, or 25 dB Case Full magnetic shield; steel with gray enamel finish Dimensions 19 mm ( in.) diameter;...
Page 3 GUARANTEE This Shure product is guaranteed in normal use to be free from electrical and mechanical defects for a period of two years from date of purchase. Please retain proof of purchase date. This guar- antee includes all parts and labor, and is in lieu of any and all other guarantees or warranties, express or implied.
Page 4 SHURE Incorporated Web Address: http://www.shure.com 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 800-257-4873 Fax: 847-600-1212 In Europe, Phone: 49-7131-72140 Fax: 49-7131-721414 In Asia, Phone: 852-2893-4290 Fax: 852-2893-4055 Elsewhere, Phone: 847-600-2000 Fax: 847-600-6446...
