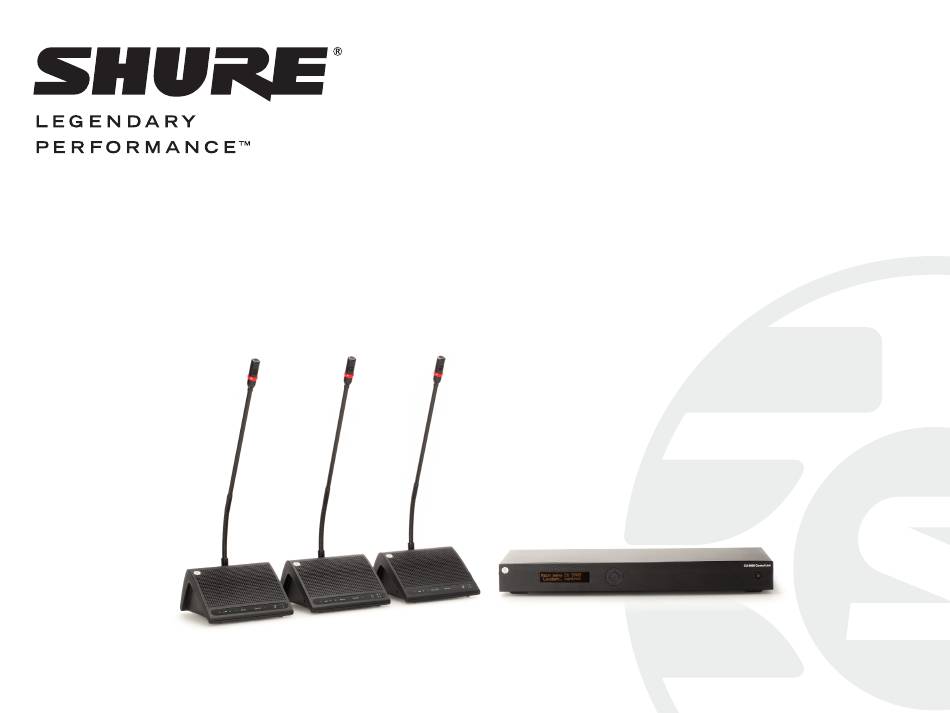

- Page 1 Discussion and Conferencing DIS-CCU CENTRAL CONTROL UNIT Quickstart Guide...
- Page 2 50 microphone units. To operate with the DCS-6000 Conference System, simply add a feature license to the DIS-CCU. See the Shure website for information on obtaining and installing a license. Important: Do not turn on the CCU until all microphone units are connected.
-
Page 3: System Overview
Accessible from a computer or tablet networked with the CCU. ④ Shielded Cat5e cables (not included) Used to connect DIS devices. Visit the Shure website for information on high-quality, Shure pre-tested cables in various lengths from 0.5 m to 100 m. - Page 4 3. Up and Running 4. Computer Control 1. Introduction Select the Button Overlay Button overlays vary to support multiple DC 5980 P DC 5900 F user roles: ① Chairman ② Participant ③ Interpreter (DC 5980 P only) DIS-CCU Quick Setup Guide...
- Page 5 2. Prepare the Units 3. Up and Running 4. Computer Control 1. Introduction Attach the Overlay Remove the adhesive back and carefully place the overlay on the unit. Note: Overlays are not reusable. DIS-CCU Quick Setup Guide...
- Page 6 2. Prepare the Units 3. Up and Running 4. Computer Control 1. Introduction Insert the Microphone Tip: Lock the microphone using the supplied hex key. DIS-CCU Quick Setup Guide...
- Page 7 1. Use the DCS-LAN outputs on the CCU to connect to the first unit. 2. Connect each unit to the next for the remainder of the units. Important: Always use shielded Cat5e cables or higher. Shielded Cat5e cable DIS-CCU Quick Setup Guide...
- Page 8 4. Computer Control 1. Introduction Power On the CCU 1. Use the PS-CCU power supply to DIS-CCU Central Control Unit connect the CCU to an AC power source. 2. Press the power button and wait for the system to power on completely.
- Page 9 The type is indicated by the channel LEDs: User Role Channel 1 Channel 2 Participant with mute button Participant without mute button Chairman Interpreter c) Release the buttons and wait until the unit restarts. DIS-CCU Quick Setup Guide...
- Page 10 The LED illuminates red and the audio is distributed to the other units' loudspeaker. Note: The system defaults to Auto (automatic) speaker mode, allowing participants to control their own microphone. See the full manual online for information on other speaker modes. DIS-CCU Quick Setup Guide...
- Page 11 2. Prepare the Units 3. Up and Running 4. Computer Control 1. Introduction Connect a Computer to the CCU Use the TCP/IP port on the CCU to connect a computer for system control from a web browser. TCP/IP DIS-CCU Quick Setup Guide...
- Page 12 3. Up and Running 4. Computer Control 1. Introduction Note the IP Address of the CCU Use the menu on the CCU front DIS-CCU Central Control Unit panel: LAN setup > IP Address > Setup IP address. IP address 169.254.005.001...
-
Page 13: Open The Web Interface
Note: Remove any zeros before a number within an octet. For example, 169.254.5.1 for an IP address that displays on CCU menu: 169.254.005.001, type into the browser URL bar: 169.254.5.1 DIS-CCU Quick Setup Guide... - Page 14 Europe, Middle East, Africa: PT. GOSHEN SWARA INDONESIA Kompleks Harco Mangga Dua Blok L No. 35 Jakarta Pusat I.16.GSI31.00501.0211...
