Avery Dennison Eartrace RH7 Quick Start Quide

Avery Dennison
Smartrac
Instructions
Eartrace

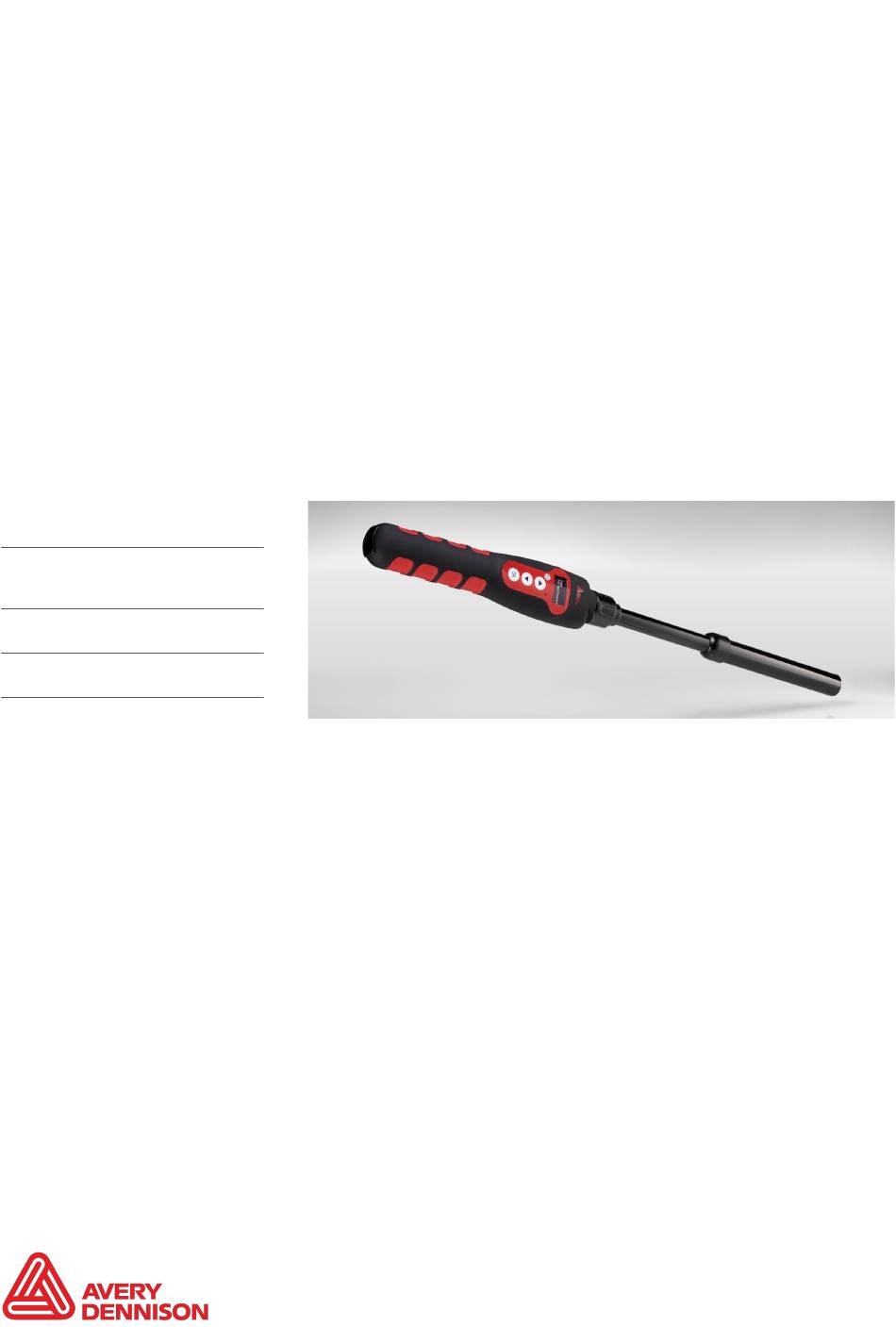

Handheld Reader RH7
Overview
Frequency Band
LF 124 kHz - 134.2 kHz
HDX and FDX
Hard Tag Dimensions
660 x 65 mm / 25.98 x 2.56 in
Industry Segments
Animal Identification
®
Instructions
The RH7 can read all ISO 11784 and
11785 compliant animal transponders
(FDX-B and HDX) as well as FDX-A and
EM4102 transponders.
Switch Reader Off
Press the 'ON/OFF' button for about
2 seconds. In case of inactivity the reader
switches off automatically after about
2 minutes.
Charging Battery
Connect the reader to a computer or an
USB power supply. When fully charged
the LED changes from red to green.
The battery status is shown in the upper
right corner of the OLED display.
Reader Configuration
From initial scan view press 'UP' once and
enter Settings by pressing 'OK'. The menu
offer configuration of Language, Memory,
®
Bluetooth
function please press 'OK'.
, Hex. For selecting the desired
Classification: Avery Dennison - Public Classification: Avery Dennison - Internal
Eartrace-Handheld-Reader-RH7-05-21-EN-IS
®
Bluetooth Setting
Scroll to 'Bluetooth' and press 'OK' for
disabling or enabling communication
via Bluetooth ® . When enabled the LED
is blue. For saving battery power please
disable Bluetooth ® .
Reading Transponders
Switch on the reader, wait until 'Scan'
Is shown and press 'OK'. Approach the
reader antenna to the transponder.
After detecting a transponder the
identification number is shown on the
OLED display. For another reading press
'OK' again.
Continuous Scan
Continuous reading can be activated by
scrolling down from initial scan view to
'Continuous Scan' and pressing 'OK'.
