- Page 1 LITTLE DAVID OWNERS MANUAL LD7D/3 CAC51 / CAC61 CARTRIDGES THE LOVESHAW CORPORATION LOVESHAW - EUROPE 2206 EASTON TURNPIKE, BOX 83 UNIT 9, BRUNEL GATE SOUTH CANAAN, PA 18459 W. PORTWAY INDUSTRIAL ESTATE ANDOVER, HAMPSHIRE SP103SL TEL: (570) 937-4921 ENGLAND FAX: (570) 937-4370...
- Page 2 Part and Instruction Manual Loveshaw Pressure Sensitive Taping Machine Semi – Automatic - Uniform Model: LD7D/3 1 ...
-
Page 3: Theory Of Operation

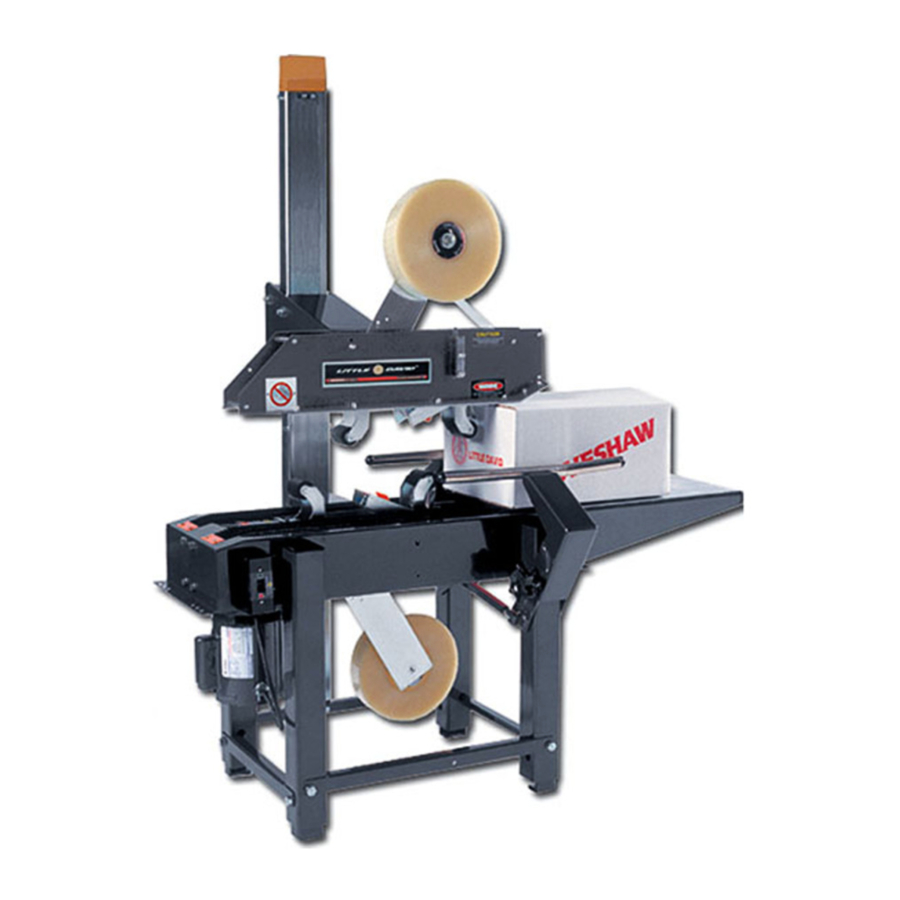

Theory of Operation: The LD7 with the Loveshaw patented design tape cartridges apply pressure sensitive tape to the top and bottom center seam of regular slotted containers. The standard model machine applies the tape in a “C” clip configuration. The LD7 is manually adjustable in width and height to accommodate a large range of boxes. -
Page 4: Important Safety Notices
Important Safety Notices: Before installing operating or servicing this equipment read carefully and understand the following precautions: • Never service the machine without completely removing all power sources first. Refer to your company’s Lock out / Tag out procedures. • Do not bypass or remove safety guards on the machine or tape cartridges. - Page 5 5 ...
-
Page 6: Machine Specifications
• Height: 4 ½” minimum to 24” maximum standard (34” maximium optional) Box that are 1 ½ times taller than longer are at risk of tipping over in this machine. Loveshaw considers thses box not in the specifications of this machine. -
Page 7: Installation
Installation: For domestic customer only – The Little David is shipped completely assembled. The Little David is ready for operation after plugging it into an appropiately grounded electrical outlet. The line cord is located on the operator side of the machine. - Page 8 Figure 1 Mast Constant force spring Head assembly Squeezers Box flow Belt drive Motor starter Side rails assy. Pack table Drive motor 8 ...
-
Page 9: Operation
Operation: With the tape cartridges loaded and installed in the machine it is ready to be set up. Place a sample box with all of its flaps folded at the infeed of the machine. Loosen the side rails locking knob by turning counter clockwise and adjust the rails to the width of the box. -
Page 10: Machine Components
Machine components: Starter Switch: The starter switch is mounted on the operator side of the machine. The device is a manual motor starter with integral overload protection. The device starts and stops the drive motor while protecting the motor from over current conditions such as a box jam. -
Page 11: Side Rails
Side Rails: The side rails center and align the box as it is being processed. The side rails are manually adjustable and are held in position by a manual lock knob. The side rails should never be used to drag or move the machine. The side rails can also be used to hold a box in position on the pack table while being filled. - Page 12 It is recommended that both belts be replaced at the same time. It is important to replace the belts with genuine Little David belts, since they are engineered specifically for the application. Belts Belt finger guard: The rough top belts have finger guards that prevent the entanglement or pinch hazards.
-
Page 13: Head Assembly
Head Assembly: The head assembly rides along the mast via ball bearings and high density polyethylene pads. The head height is adjust by turning the lock knob counter clockwise to unlock head travel. The head can be manually adjusted by simply pushing or pulling the head assembly. The head assembly is counter balanced by a constant force spring to make head travel easy. - Page 14 Drive Motor: The standard drive motor is 1/3 hp open drip proof motor. The motor is dual rated at 120 or 230 vac single phase 60hz. The motor is open drip proof design. The motor is coupled to a dual output sealed gear box. The gear box requires no maintenace.
- Page 15 Top Flap Squeezer: The top flap squeezers are used to butt the major flaps together before tape is applied. The squeezers are independantly set to the width of the box. The squeezers can help close boxes that are not severly overstuffed with product.
-
Page 16: Machine Maintenance
Machine Maintenance: Daily------- Clean machine ( as required) Inspect bottom belt drives. Weekly----- Check belt tensioner Inspect area around motor & gearbox Inspect belt idlers Adjust finger guards for belts (as required) Monthly---- Check / Adjust head wear pads Check drive roller belt lagging. Cartridge Maintenance: Refer to cartridge area of manual... -
Page 17: Troubleshooting
Troubleshooting: Problem Cause Corrective Action Box jamming in machine. Make sure box is in operating Do not run box on machine. range of machine. Product bulging through top of Insure product is not above box. score line of box. Tape cartridge problems. Check tape cartridge troubleshooting. - Page 18 • When moving a machine with the caster option, always make sure that the top head assembly is lowered completely. Never push the machine width ways first. Always push the machine from the front or rear side of the machine. •...
- Page 19 THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF DWG NO SCALE = .3mm METRIC FINISH LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY .XXX = .1mm INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE MATERIAL CHECKED...
- Page 20 THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF DWG NO METRIC = .3mm FINISH LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY .XXX = .1mm INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE MATERIAL...
- Page 21 THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF DWG NO METRIC = .3mm FINISH LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY .XXX = .1mm INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE MATERIAL...
- Page 22 THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF DWG NO SCALE 1/2:1 METRIC = .3mm LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY FINISH SCALE 1 / 2 .XXX = .1mm INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE...
- Page 23 THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF DWG NO SCALE = .3mm METRIC FINISH LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY .XXX = .1mm INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE NOTED CHECKED...
- Page 24 Parts List ITEM PART NUMBER DESCRIPTION PSC301208-5 INFEED ROLLER BRACKET K286D ROLLER PSC301211-4 INFEED ROLLER PSC301224 BUSHING DRAWN Dennisw 6/25/2002 CHECKED TITLE INFEED ROLLER ASSEMBLY APPROVED SIZE DWG NO IRLRA301 SCALE SHEET...
- Page 25 Parts List ITEM PART NUMBER DESCRIPTION PSC301238L REDUCER LD16B-2033A/LES MOTOR PSC301217-4 DRIVE ROLLER PSC647 RING TERM. (NOT SHOWN) PSC611 STRAIN RELIEF (NOT SHOWN) PSC505A-115-4 LINE CABLE (NOT SHOWN) PSC301235-GE MOTOR STARTER (NOT SHOWN) PSC301241-4 MOTOR CABLE (NOT SHOWN) PSC614 BELT LAGGING (NOT SHOWN) A204 CONNECTOR (NOT SHOWN) LP07-001-L...
- Page 27 THIS DRAWING AND SUBJECT MATTER THEREON IS THE EXCLUSIVE PROPERTY OF DWG NO SCALE = .3mm METRIC FINISH LOVESHAW-ITW AND IS TO BE TREATED BY YOU AS CONFIDENTIAL PRPRIETARY .XXX = .1mm INFORMATION. THIS DRAWING OR SUBJECT MATTER THEROF SHALL NOT BE MATERIAL CHECKED...
