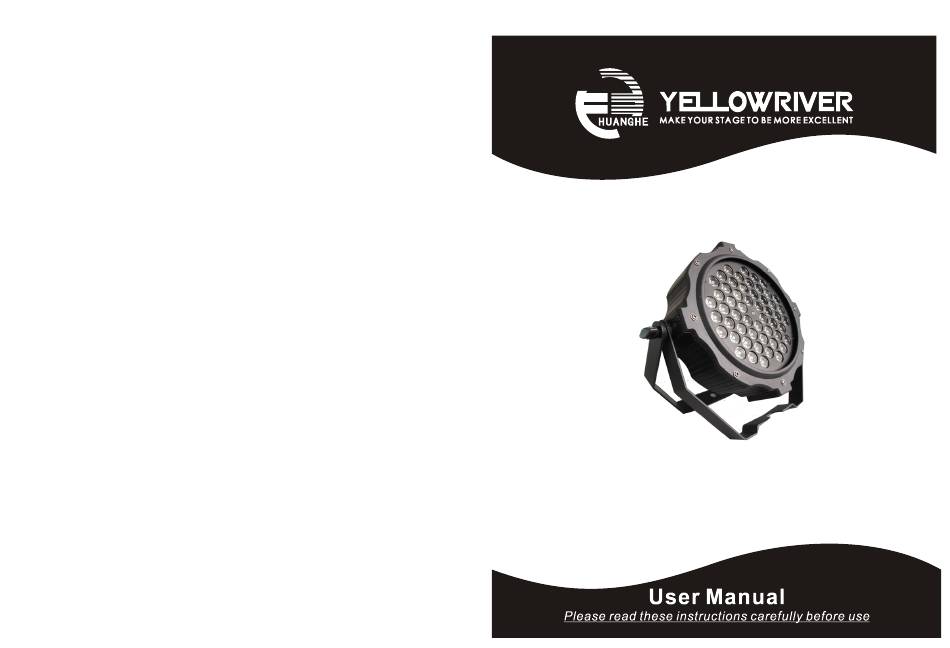

- Page 1 LED PAR LIGHT Model:YR-P0354S (3WX54pcs RGBW)
- Page 2 Contents Section 1.Getting Started Unpacking Section 1.Getting Started Unpacking Safety Instruction Safety Instruction Unpacking Section 2. Set Up 1pc Fixture Installation 1/4pc AC Power Cable with Plug Controlling Board 1/4pc Signal Convertor Cable Machine Connection ...
- Page 3 Safety Instruction When use DMX controller, please make sure that there is no interference sources(e.g. intercom, high frequency radio waves and radiation source) For your safe，please read this user manual carefully before turn on the fixture. This machine should be operated by qualified engineer！ Caution! There are no user serviceable parts inside the unit.
- Page 4 Controlling Board Machine Connection Front display panel Cable Connectors Cables must have a male XLR connector on one end and a female XLR connector on the other end. LED Display Panel Button A word on termination: DMX is a resilient communication protocol, Switch menu function MENU however errors still occasionally occur.
- Page 5 Master and slave: select one machine as master, press the menu to choose the Defective fixture or Bypass fixtures one at a time until normal function you want. Press other machines’ address to be DMX state. Use signal devices operation is regained: unplug both connectors cable to connect machines one by one.
- Page 6 FS--- FS00 to FS09： choose flashing color Color mix Seven color mix F--- F000 to F255： flash speed，from slow Auto 0-60: shade ； 61-120: skip ； 121-180: to fast shade+skip ； 181-240: flash by sound ； 241-255: skip by sound LS--- LS00 to LS09：choose color CH 9...
- Page 8 本公司有权对此份产品说明书进行修改，恕不另行通知。 Our company reserve right to revise this user manual without notice! Innovation | Efficiency | Dedication | Harmonious...
