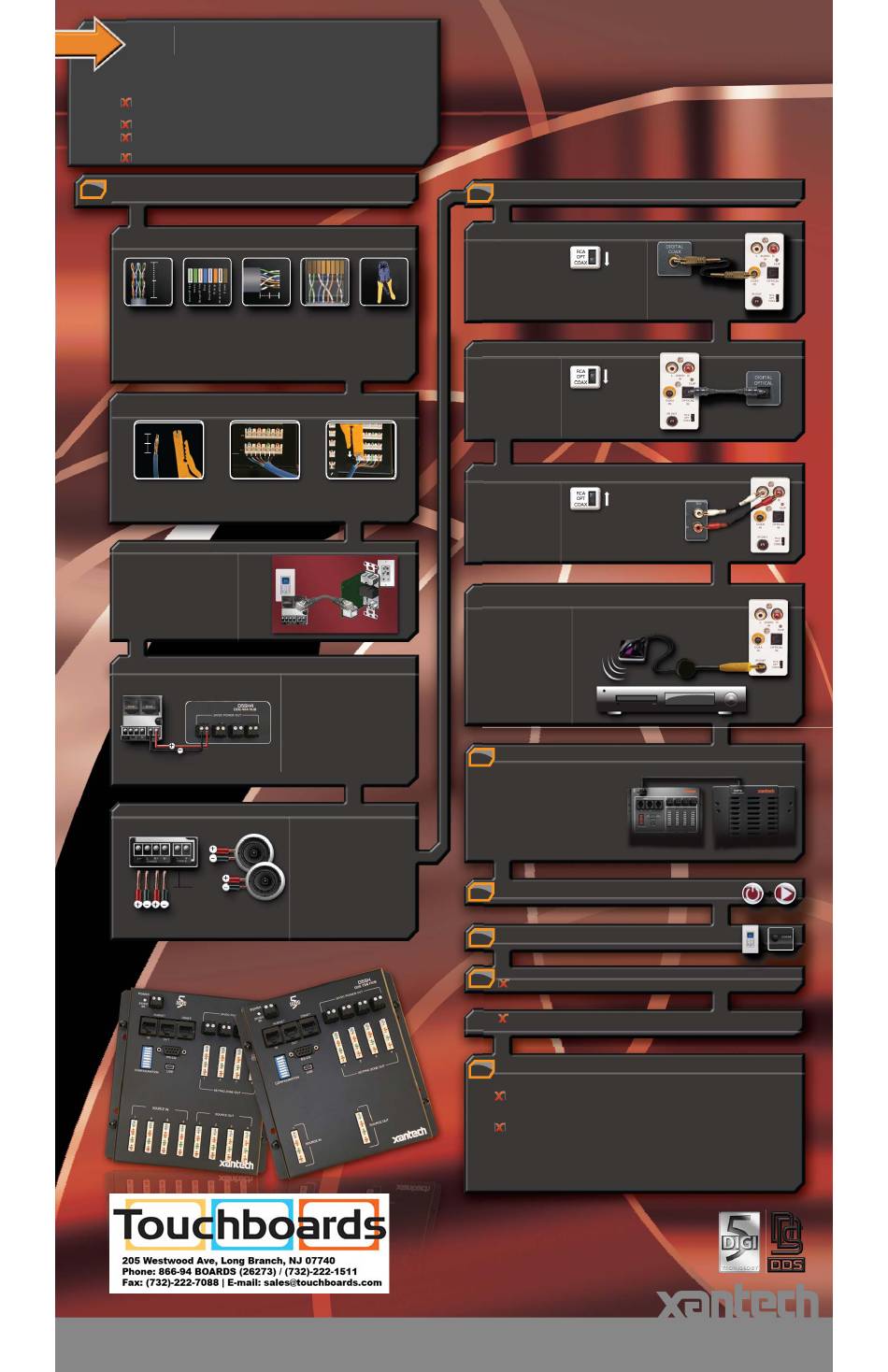

Xantech D5SH Quick Start Manual

Start Here
This setup guide is intended for the D5SH and D5SH4 wall-mount Digital Distribution
System. The D5SH is a single source distribution hub, the D5SH4 is a four source
distribution hub. Each D5SH or D5SH4 requires one D5PS power supply. For ease of
reading, the distribution hub will be referred to as the model D5SH.
Determine the best location for the D5SH and all audio source equipment
(CD player, radio tuner, iPod®, etc.)
Run a Cat5 wire from each room (Zone) Keypad location to the D5SH
Run speaker wiring (16 gauge is recommended) from each Keypad location to
the corresponding speakers located in each room
Be sure to label all wires for easy identification
1
Connect D5KP Keypad to D5SH Digital Distribution Hub.
Connect D5IP Input Plate to D5SH Digital Distribution Hub.
A – Terminate RJ-45 Plugs and Connect to "SYSTEM PORT" (D5KP side)
Terminate RJ-45 Plugs and Connect to D5IP
1 2 3 4 5 6 7 8
1 1/2"
Using a Cat-5 Untwist the twist-
cable stripper, ed pair wires and
remove about arrange them in
1 - 1/2" of the the order shown
jacket as shown above.
above.
B - Terminate 110 Punch-down from D5KP.
Terminate 110 Punch-down from D5IP.
Cat5
Cable
Stipper
2"
Using a Cat-5
cable stripper,
remove about
2-3" of the jacket.
If a local audio source is desired,
such as an iPod® a D5IP Source
Input Wall Plate is required.
Terminate RJ-45 plugs on each end .
of the C at5 as shown in step 1A
Connect the "local port" of the D5KP
to the RJ-45 input of the D5IP.
Connect the audio source to the
D5IP.
For more information consult your
D5IP manual.
NOTE:
Connect D5KP Keypads
D5KP Rear
D5SH
Connect Speakers To D5KP Keypads
D5KP Rear
Speaker Connector
1/4"
16AWG
Speaker Wire
To Speakers
13100 Telfair Ave. Sylmar CA 91342 I 818.362.0353 I xantech.com
iPod is a registered trademark of Apple Computer, Inc. All other marks are registered trademarks and trademarks of
Xantech Corporation. All rights reserved.
This document is copyright protected. No part of this manual may be copied or reproduced in any form without prior
written consent from Xantech Corporation. Xantech Corporation shall not be liable for operational, technical, or editorial
errors/omissions made in this document.
1 2 3 4 5 6 7 8
1/2"
Press all wires Insert the ar- Finally, crimp the
flat between your ranged wires into connector using
thumb and index the RJ-45 plug a standard RJ-45
fingers and cut as shown above. crimping tool.
the wires so they The locking tab
are 1/2" long as is facing down in
shown above. this view.
Align the wires
Terminate the wires
to the color coded by using a Punch-
110-Punch-down.
down tool.
Blue/ White is the first
wire to be installed.
D5KP Rear
LOCAL PO RT
Cat5
D5IP
Sideview
For maximum audio performance over
long wiring distances (over 150ft) an
additional 16 gauge, 2 conductor wire
is recommend for extra power.
For all zones requiring extra power,
connect the "24 VDC POWER OUT" of
the D5SH to the "POWER IN" of the D5KP.
For more information, consult the D5SH
manual.
Strip approximately 1/4" of insulation
from both ends of all speaker wiring.
Twist the exposed end of the wire to
ensure no loose strands remain.
Connect the positive speaker wire to
the positive input of the speaker and
negative speaker wire to each negative
input of each speaker.
Digital Distribution System
Digital Distribution System
Quick Start Guide
Quick Start Guide
2
Connect Audio Sources To D5SH – Options
A – Digital Coax Setup A – Digital Coax Setup
For audio sources with
a digital coax output,
connect the digital coax
output to the D5IP
Set switch
Digital Coax Input with
to the "COAX"
position.
a coaxial cable.
B – Digital Optical Setup
For audio sources with
a digital optical output,
connect the digital optical
output to the D5IP
Set switch
to the "OPT"
Digital Optical Input
position.
with a optical cable.
C – Analog Setup
For audio sources with
an analog audio output,
connect the analog
output to the D5IP
Set switch
RCA Input with a stereo
to the "RCA"
RCA cable.
position.
D – Connect & Mount IR Emitters
Connect the 3.5 mm plug of
each IR emitter into the
"IR OUT" on the D5IP.
Place the IR Emitter head
onto the source equipment
connected to the respective
D5IP.
CD
3
Connect Power to the Digital Distribution System
24VDC
A- Connect AC power cord to the D5PS
Power Supply.
B- Connect the 24 VDC power cord from
the D5PS Power Supply to the D5SH
Digital Distribution Hub.
D5SH
4
Turn On and Start All Connected Audio Sources
5
Turn On All Zone Keypads (Front of D5KP – "PWR" button)
6
Verify Audio for Each Source
Ramp volume up to the halfway point.
Starting with Source 1, select each source and verify that audio is present through the
room speakers.
7
If Necessary, Adjust Source Input Gain for Analog Source Inputs
There are two reasons that the Source Input Gain DIP switches may need to be adjusted:
The volume levels of analog source inputs are high adjust the
DIP switches up or down to boost or cut input level
If there is noticeable distortion (clipping) coming from analog
source, even at low volume levels - check the clip indicators on
the front of the D5IP to verify clipping and flip the DIP switch to
the down (default) position
Instructions, Quick Start, D5SH, D5SH4 © 2008 Xantech Corporation Document # 08905182 REV. A
D5IP
Front
Audio Source
Digital
Coax Output
Coax
Cable
D5IP Digital
Optical
Front
Cable
Audio Source
Digital Optical
Output
D5IP
Front
Stereo RCA
Patch Cable
Audio Source
Analog Output
D5IP
IR Emitter
Front
D5PS
