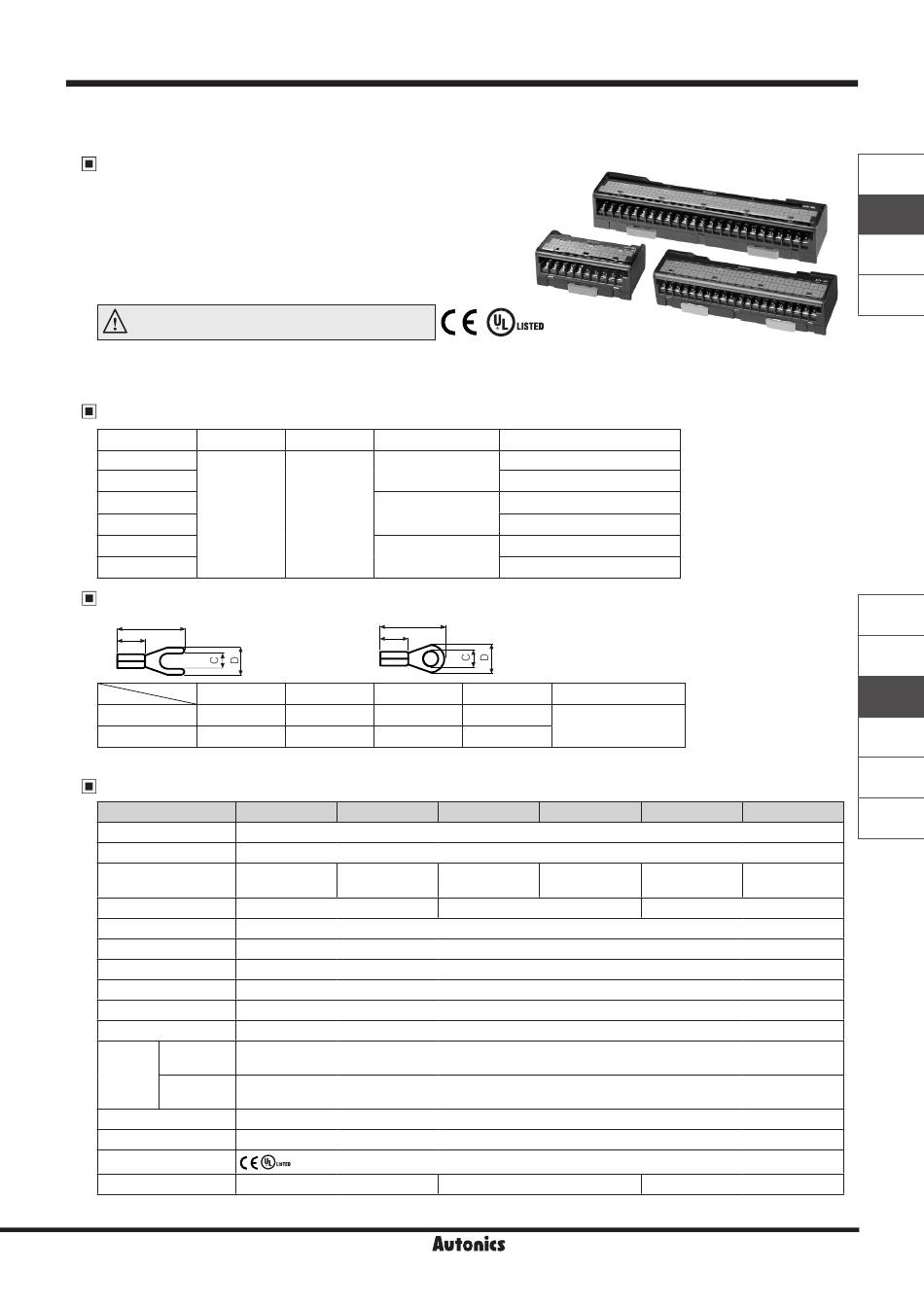

ACS Series

Common terminal block

Features

lCompact common terminal block with 7 mm terminal pitch
lNo Jumper bars required due to built-in PCB common
lAvailable for power supply expansion terminal block
lSpace saving with compact size
l2 ways of mounting (DIN rail, mounting with screws)
Please read "Caution for your safety" in operation manual
before using this unit.

Model

Model Item

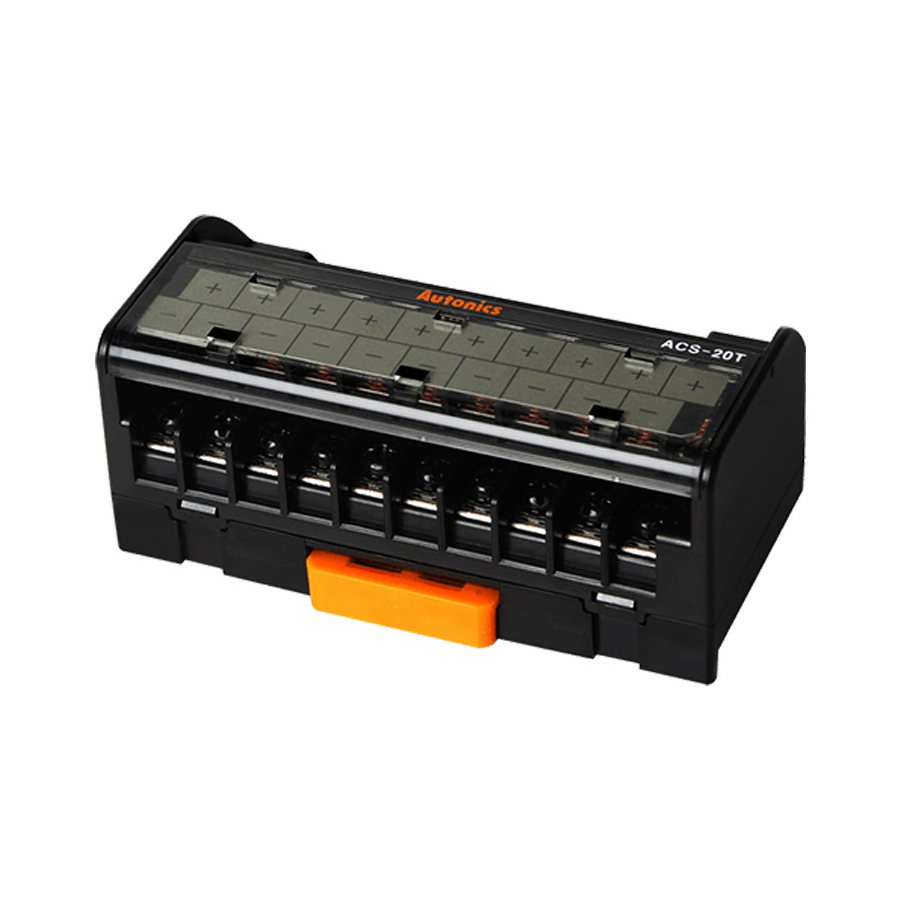

ACS-20L
ACS-20T
ACS-40L
Common
terminal block
ACS-40T
ACS-50L
ACS-50T
Applied crimp terminal
B
A
A
Forked Min. 4.1
Round Min. 4.1
※ Use the UL cirtified crimpt terminal.

Specifications

Model ACS-20L
Rated voltage Max. 125 VDC, 125 VAC 50/60 Hz
Rated current Max. 10 A
COMMON type
Number of terminals 20EA
Terminal pitch 7.0 mm
Applied wire AWG22-16(0.30 to 1.25mm
Insulation resistance Min. 1,000 ㏁ (at 500 VDC megger)
Dielectric strength 600 VAC 50/60 Hz for 1 min.
Vibration 0.75 mm amplitude at frequency of 10 to 55 Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock 150 m/s
Ambient
-15 to 55 ℃, storage : -25 to 65 ℃
temperature
Environ-
ment
Ambient
35 to 85%RH, storage : 35 to 85%RH
humidity
Material CASE : MPPO, TERMINAL PIN : Brass
Tightening torque 0.5 to 0.6 N·m
Approval
※1
Weight Approx. 92g (approx. 61 g)
※ 1: The weight is with packaging and the weight in parentheses is only unit weight.
※ Environment resistance is rated at no freezing or condensation.
Terminal type Number or terminals
20EA
40EA
Screw
50EA
B
A
<Forked>
B C
Max. 16.0 Min. 3.0
Max. 16.0 Min. 3.0
ACS-20T
Left +COM, Top +COM,
Right -COM Bottom -COM
2
)
2 (15G) in each of X, Y, Z directions for 3 times
Common Terminal Block
Common type
Left-Right Common
Top-Bottom Common
Left-Right Common
Top-Bottom Common
Left-Right Common
Top-Bottom Common
<Round>
D Applied wire
Max. 5.9
AWG 22-16
(0.30 to 1.25 mm
Max. 5.9
ACS-40L ACS-40T
Left +COM, Top +COM,
Right -COM Bottom -COM
40EA
Approx. 157g (approx. 115 g)
(unit:mm)
2 )
ACS-50L ACS-50T
Left +COM, Top +COM,
Right -COM Bottom -COM
50EA
Approx. 189g (approx. 141 g)
