Autonics ASL Series Manual

ASL Series ASL Series

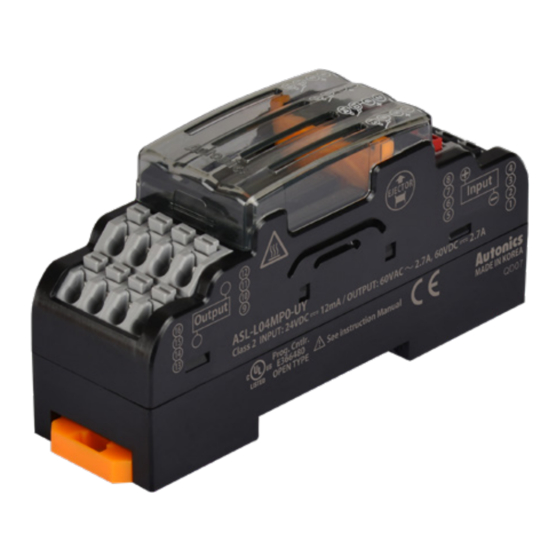

SSR Terminal Block (screwless type)
▣ Features
[Common Feature]
●Selectable between independent and load common output with jumper bar
● High tensile force and easy wiring with one-touch screwless type crimp terminal
●Convenient operating status check with operation indicator (blue LED)
[1-point]
●Selectable between independent and power ommon input with jumper bar
●DIN Rail mounting
●SSR: [Fujitsu] SN-24A01C
[Omron] 3GMC-202P
[Panasonic] AQG22124, AQG12124, AQZ202D
[4-point]
● Selectable between NPN common and PNP common common input with jumper
bar insulting location
●SSR protection with the cover
●Easy SSR replacement with SSR ejector (except ASL-L04ST0-
●DIN Rail or screw mounting
●SSR: [Fujitsu] SN-24A01C
[Omron] 3GMC-202P
[Panasonic] AQG22124, AQG12124, AQZ202D
[16-point]
●SSR protection with the cover
●Easy SSR replacement with SSR ejector
●DIN Rail mounting
●SSR: [Panasonic] AQZ202D
Please read "Safety Considerations" in instruction
manual before using.
▣ Ordering Information
AS L L 04
No. of SSR points
Connector type
Terminal type
Model
A-54
SP0 U N
Varistor installation
Input logic
SSR type
)
(except ASL-L1ST0- , ASL-L4ST0-
N Not installed
Y
Installed
U Universal
N NPN
P
PNP
MP0 AQZ202D (panasonic)
SP0 AQG12124 (panasonic)
SP1 AQG22124 (panasonic)
SR0 G3MC-202P (omron)
ST0 SN-24A01C (fujitsu)
01 1-point
04 4-point
16 16-point
H Hirose
L Screwless
L
Screwless
AS SSR Terminal Block
series)
